Wazuh indexer indices

Creating custom index pattern

This section describes how to create a custom index pattern, for example, my-custom-alerts-*, alongside the default pattern, wazuh-alerts-*. Switch to the root user and perform the steps below.

1. Stop the Filebeat service:

   # systemctl stop filebeat


2. Download the Wazuh template and save it into a file (for example, template.json):

   # curl -so template.json https://raw.githubusercontent.com/wazuh/wazuh/v4.13.0/extensions/elasticsearch/7.x/wazuh-template.json


3. Open the template file and locate this line at the beginning of the file:

   "index_patterns": [
     "wazuh-alerts-4.x-*",
     "wazuh-archives-4.x-*"
   ],


   Add your custom pattern to look like this:

   "index_patterns": [
     "wazuh-alerts-4.x-*",
     "wazuh-archives-4.x-*",
     "my-custom-alerts-*"
   ],


   The asterisk character (*) on the index patterns is important because Filebeat will create indices using a name that follows this pattern, which is necessary to apply the proper format to visualize the alerts on the Wazuh dashboard.

4. Save the modifications and insert the new template into the Wazuh indexer. This will replace the existing template:

   # curl -XPUT -k -u <INDEXER_USERNAME>:<INDEXER_PASSWORD> 'https://<INDEXER_IP_ADDRESS>:9200/_template/wazuh' -H 'Content-Type: application/json' -d @template.json


   Replace:

   • <INDEXER_IP_ADDRESS> with the IP address of your Wazuh indexer

   • <INDEXER_USERNAME> and <INDEXER_PASSWORD> with the Wazuh indexer username and password. You can obtain the Wazuh indexer credentials for fresh deployments using the command:

     Note

     If using the Wazuh OVA, use the default credentials admin:admin or refer to the password management section.

     # tar -axf wazuh-install-files.tar wazuh-install-files/wazuh-passwords.txt -O | grep -P "\'admin\'" -A 1


   {"acknowledged":true}


   Note

   {"acknowledged":true} indicates that the template was inserted correctly.

   Warning

   Perform step 5 only if you want to replace the default alert index pattern wazuh-alerts-* and/or the default archive index pattern wazuh‑archives-* with my-custom-alerts-*.

5. Open the Wazuh alerts configuration file /usr/share/filebeat/module/wazuh/alerts/manifest.yml and optionally the archives file /usr/share/filebeat/module/wazuh/archives/manifest.yml and replace the index name.

   For example, from:

   - name: index_prefix
     default: wazuh-alerts-


   To this:

   - name: index_prefix
     default: my-custom-alerts-


   Note

   The index name must not contain the characters #, \, /, *, ?, ", <, >, |, ,, and must not start with _, -, or +. Also, all the letters must be lowercase.

6. (Optional) If you want to use the new index pattern by default, open the /usr/share/wazuh-dashboard/data/wazuh/config/wazuh.yml file and add the below configuration:

   pattern: my-custom-alerts-*

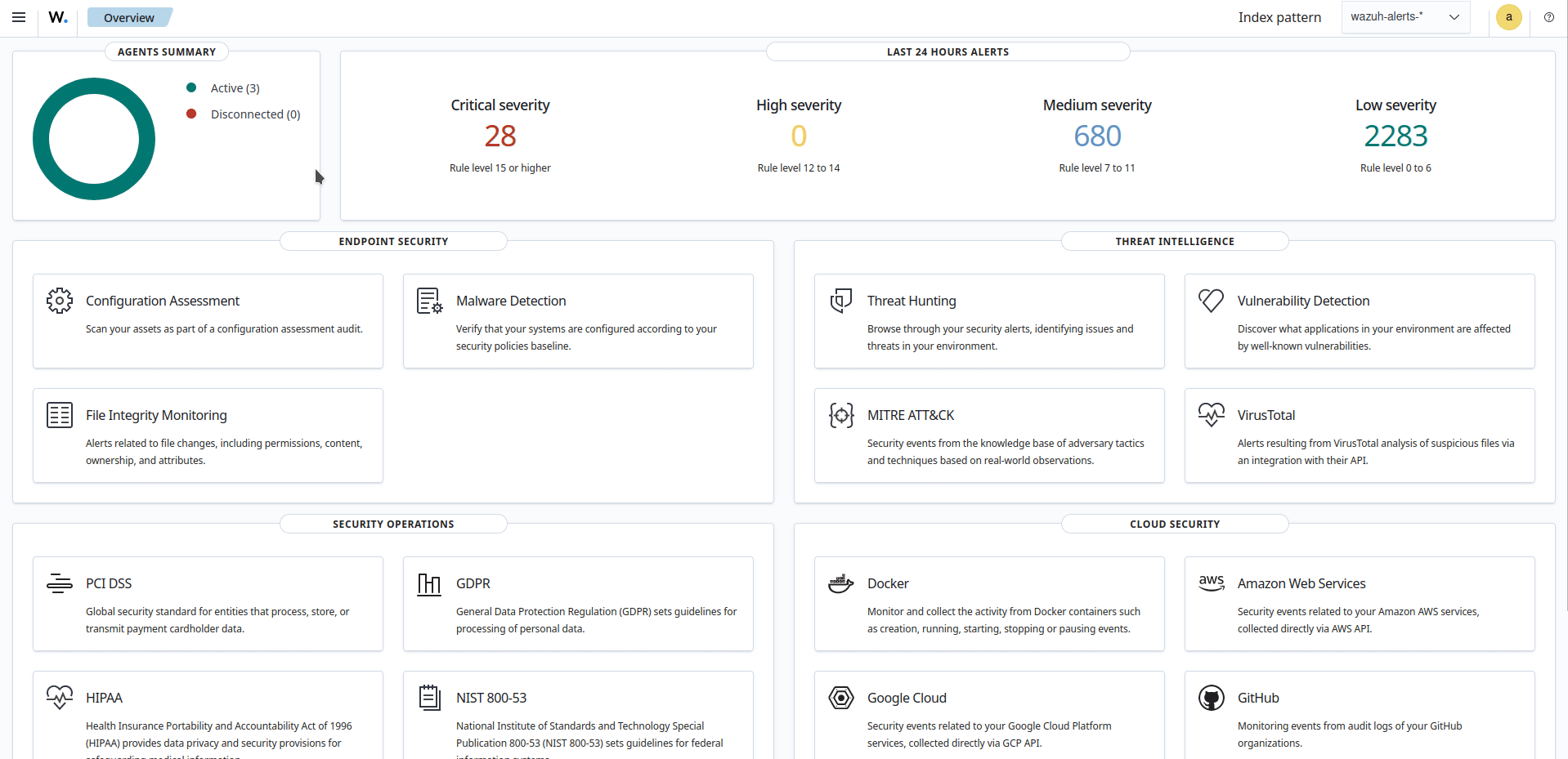

   This will make the Wazuh server automatically create and/or select the new index pattern.

7. Restart Filebeat and the Wazuh server components:

   # systemctl restart filebeat
   # systemctl restart wazuh-manager
   # systemctl restart wazuh-indexer
   # systemctl restart wazuh-dashboard


Checking indices information

You can check for information about Wazuh indices in two ways.

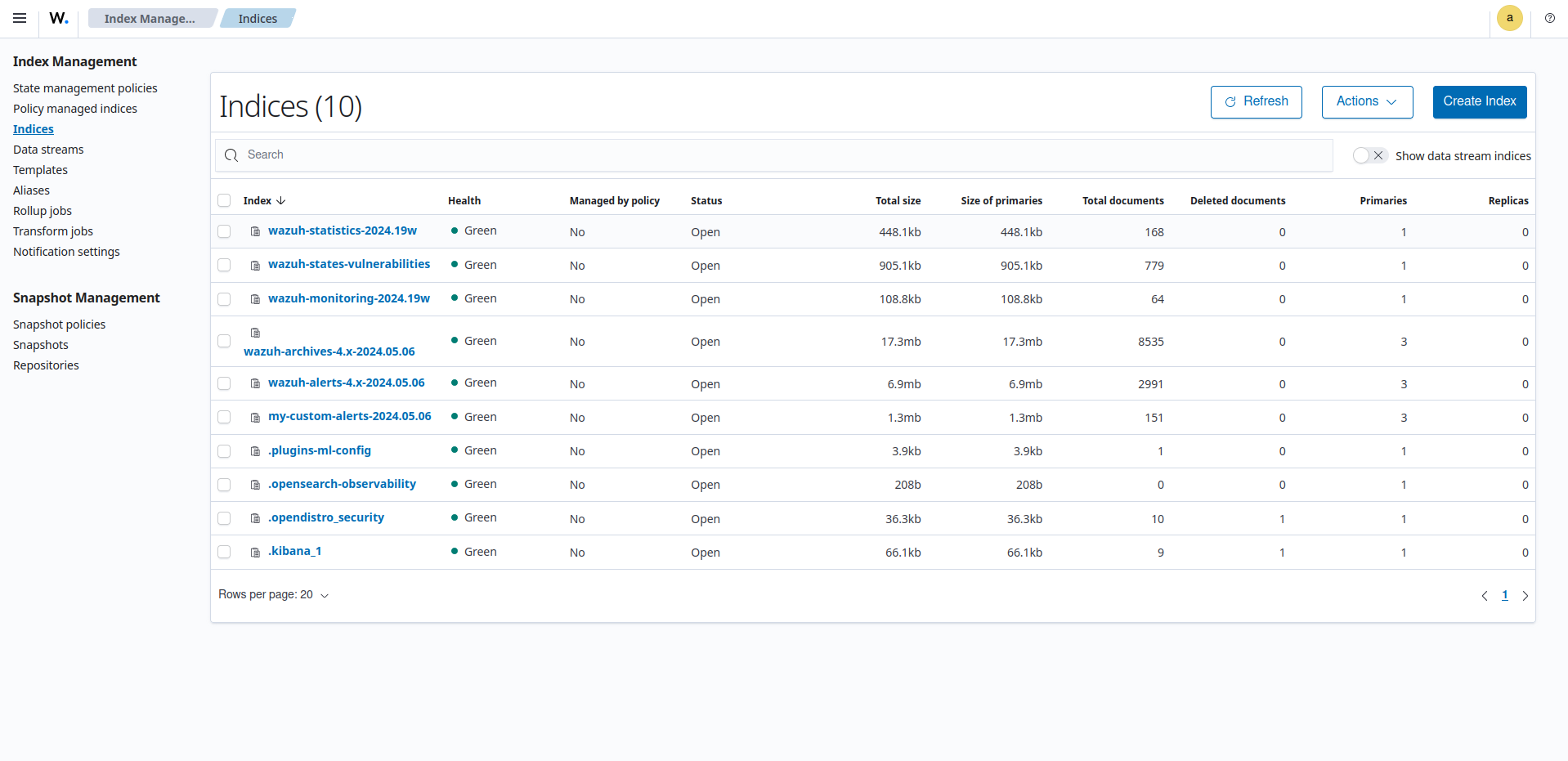

• Using the web user interface.

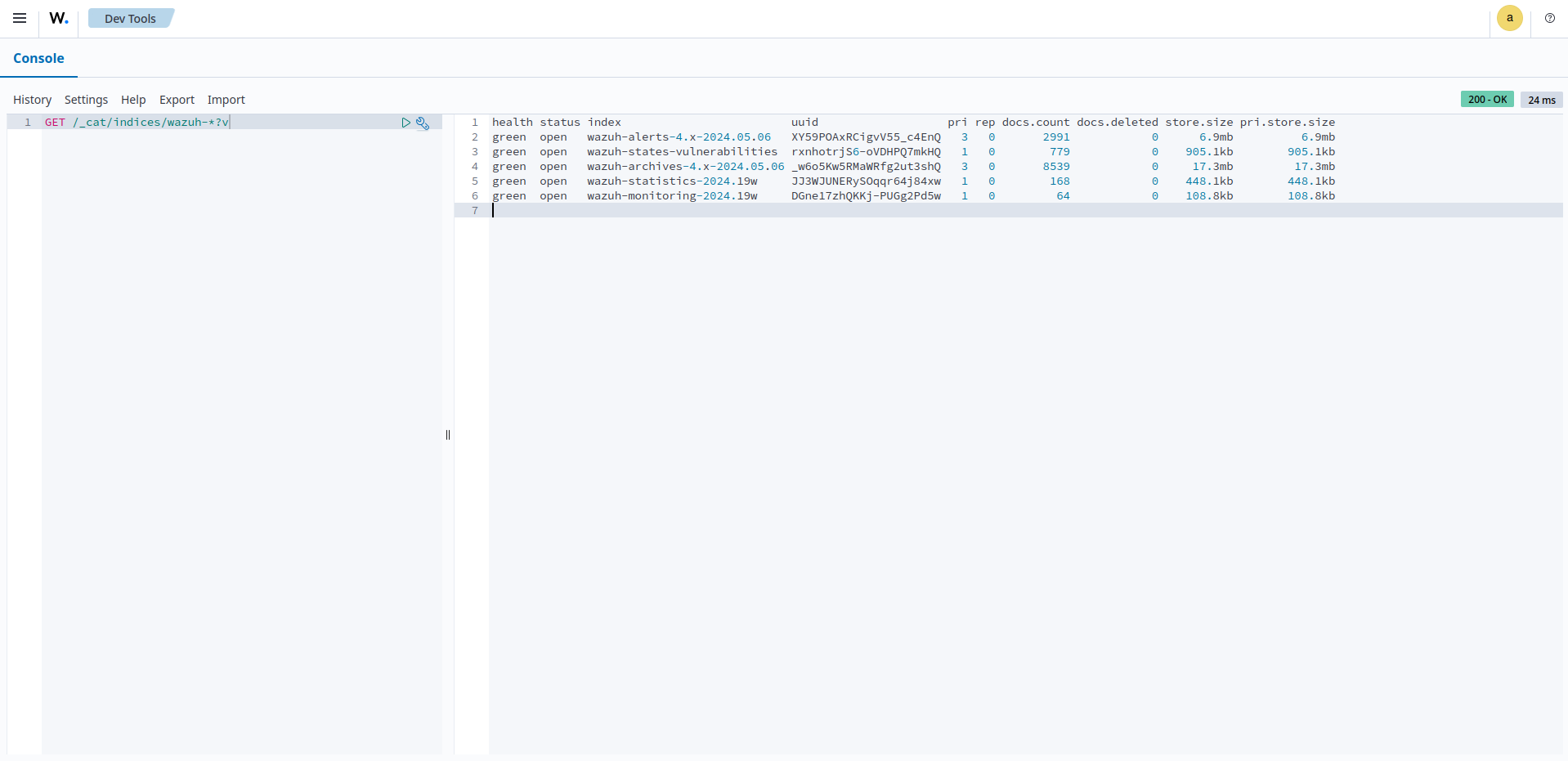

• Making a request to the Wazuh indexer API.

The wazuh‑alerts-* indices

The Wazuh server analyzes events received from monitored endpoints and generates alerts when the events match a detection rule. These alerts are saved using the wazuh-alerts-* indices.

The Wazuh server logs the alert data into the /var/ossec/logs/alerts/alerts.json and /var/ossec/logs/alerts/alerts.log files by default. Once saved in the /var/ossec/logs/alerts/alerts.json file, it forwards the JSON alert document to the Wazuh indexer API for indexing. The indexed files are stored in the /var/lib/wazuh-indexer/nodes/0/indices directory of the Wazuh indexer.

When forwarding alerts to the Wazuh indexer, the Wazuh server formats the current date into an index name. For example, the Wazuh server will define the index names wazuh-alerts-4.x-2023.03.17 and wazuh-alerts-4.x-2023.03.18 for March 17th and 18th alerts, respectively. The Wazuh indexer then creates alert indices using the defined wazuh‑alerts-* index names.

You can modify the default index name in the /usr/share/filebeat/module/wazuh/alerts/ingest/pipeline.json file of the Wazuh server. To do this, navigate to the date_index_name field and date_rounding key to change the default index name formatting in the /usr/share/filebeat/module/wazuh/alerts/ingest/pipeline.json file:

{
  "description": "Wazuh alerts pipeline",
  "processors": [
     { "json" : { "field" : "message", "add_to_root": true } },
     {
     "geoip": {
     "field": "data.srcip",
     "target_field": "GeoLocation",
     "properties": ["city_name", "country_name", "region_name", "location"],
     "ignore_missing": true,
     "ignore_failure": true
     }
     },
     {
     "geoip": {
     "field": "data.win.eventdata.ipAddress",
     "target_field": "GeoLocation",
     "properties": ["city_name", "country_name", "region_name", "location"],
     "ignore_missing": true,
     "ignore_failure": true
     }
     },
     {
     "geoip": {
     "field": "data.aws.sourceIPAddress",
     "target_field": "GeoLocation",
     "properties": ["city_name", "country_name", "region_name", "location"],
     "ignore_missing": true,
     "ignore_failure": true
     }
     },
     {
     "geoip": {
     "field": "data.gcp.jsonPayload.sourceIP",
     "target_field": "GeoLocation",
     "properties": ["city_name", "country_name", "region_name", "location"],
     "ignore_missing": true,
     "ignore_failure": true
     }
     },
     {
     "geoip": {
     "field": "data.office365.ClientIP",
     "target_field": "GeoLocation",
     "properties": ["city_name", "country_name", "region_name", "location"],
     "ignore_missing": true,
     "ignore_failure": true
     }
     },
     {
     "date": {
     "field": "timestamp",
     "target_field": "@timestamp",
     "formats": ["ISO8601"],
     "ignore_failure": false
     }
     },
     {
     "date_index_name": {
     "field": "timestamp",
     "date_rounding": "d",
     "index_name_prefix": "{{fields.index_prefix}}",
     "index_name_format": "yyyy.MM.dd",
     "ignore_failure": false
     }
     },
     { "remove": { "field": "message", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "ecs", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "beat", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "input_type", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "tags", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "count", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "@version", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "log", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "offset", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "type", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "host", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "fields", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "event", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "fileset", "ignore_missing": true, "ignore_failure": true } },
     { "remove": { "field": "service", "ignore_missing": true, "ignore_failure": true } }
  ],
  "on_failure" : [{
     "drop" : { }
  }]
}

Where the values:

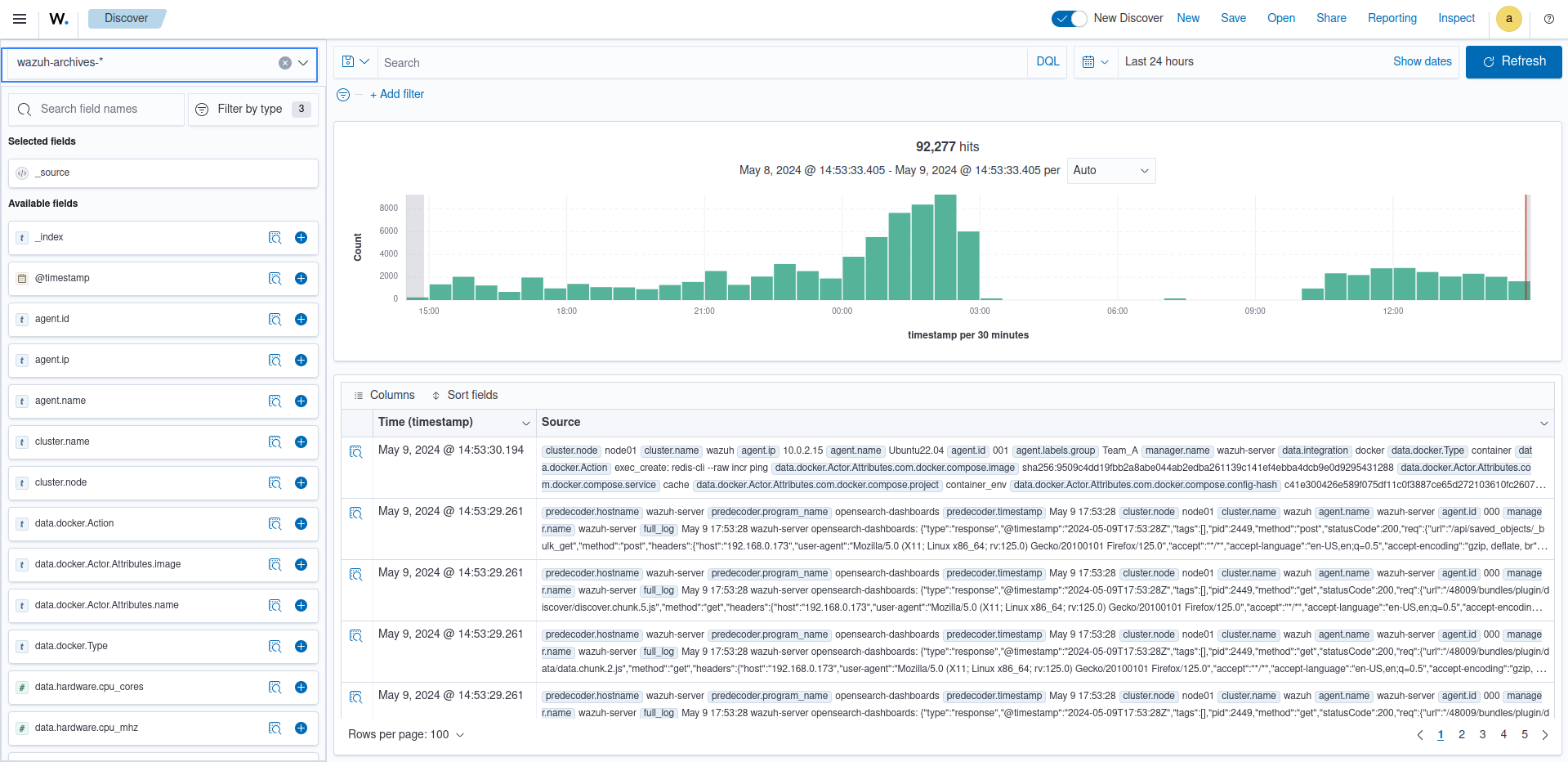

The wazuh‑archives-* indices

In addition to logging alerts to the /var/ossec/logs/alerts/alerts.json and /var/ossec/logs/alerts/alerts.log files, you can enable the Wazuh archives to log and index all the events the Wazuh server receives. This includes events that are analyzed by Wazuh and events that do not trigger alerts.

Storing and indexing all events might be useful for later analysis and compliance requirements. However, you must consider that enabling logging and indexing of all events will increase the storage requirement on the Wazuh server.

By default, the Wazuh indexer creates event indices for each unique day. You can modify the default index name in the /usr/share/filebeat/module/wazuh/archives/ingest/pipeline.json file of the Wazuh server. To do this:

1. Navigate to the date_index_name field.

2. Locate the date_rounding key and change the default index name formatting in the /usr/share/filebeat/module/wazuh/archives/ingest/pipeline.json file.

The sections below provide details on how to enable the wazuh archives and set up the wazuh-archives-* indices.

The wazuh-monitoring-* indices

The connection status of an enrolled Wazuh agent at any moment is one of the following:

• Active

• Disconnected

• Pending

• Never connected

Wazuh stores a history of the connection status of all its agents. By default, it indexes the agent connection status using the wazuh‑monitoring-* indices. The Wazuh indexer creates one of these indices per week by default. Check the documentation on custom creation intervals. These indices store the connection status of all the agents every 15 minutes by default. Check the documentation on the frequency of API requests.

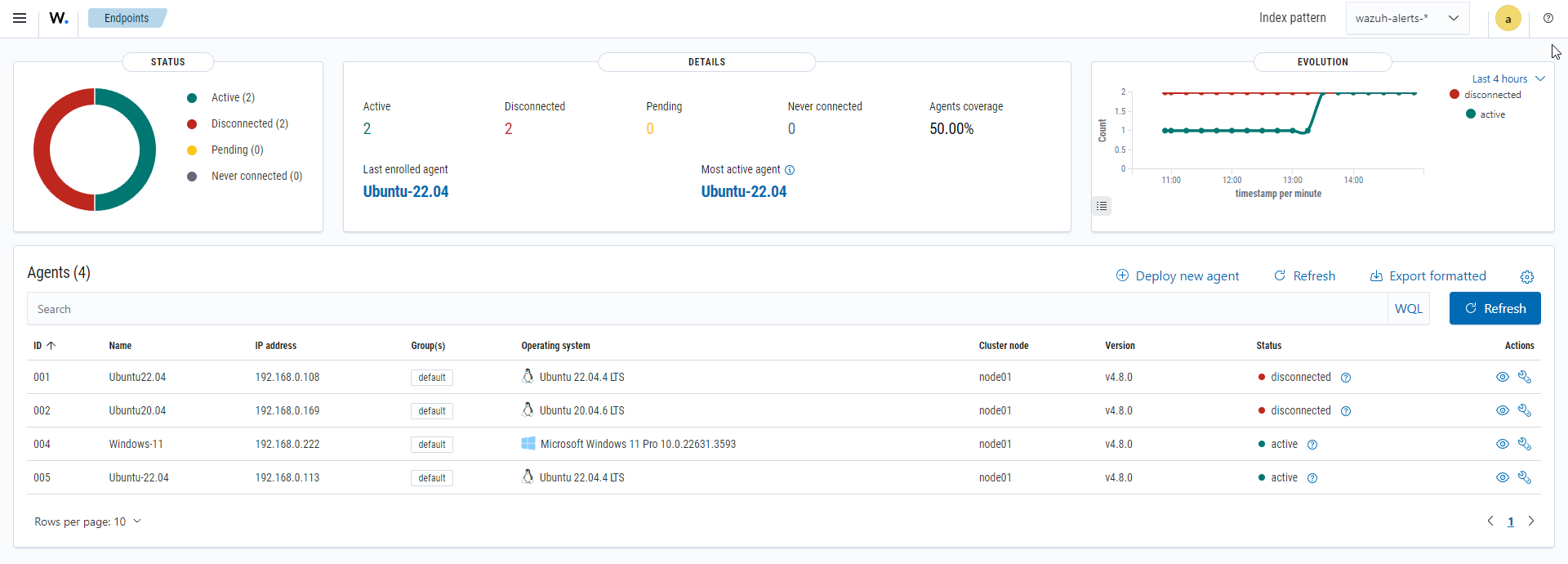

The Wazuh dashboard requires these indices to display information about agent status. For example, by clicking ☰ > Agents management > Summary, you can see information such as the Wazuh agent's connection status and historical evolution within set timeframes.

In the Wazuh dashboard configuration file, you can change the settings to do the following:

• Disable inserting and showing connection status data for the agents. Change wazuh.monitoring.enabled to accomplish this.

• Change the insertion frequency of connection status data for the agents. Change wazuh.monitoring.frequency to accomplish this.

The wazuh‑statistics-* indices

The Wazuh dashboard uses the wazuh‑statistics-* indices to display statistics about the Wazuh server usage and performance. The information displayed includes the number of events decoded, bytes received, and TCP sessions.

The Wazuh dashboard runs requests to the Wazuh manager API to query usage-related information. It inserts data into the wazuh‑statistics-* indices from the information collected. The Wazuh indexer creates a wazuh‑statistics-* index per week by default. Check the documentation on the Statistics creation interval. These indices store Wazuh server statistics every 5 minutes by default. Check the documentation on the Frequency of task execution.

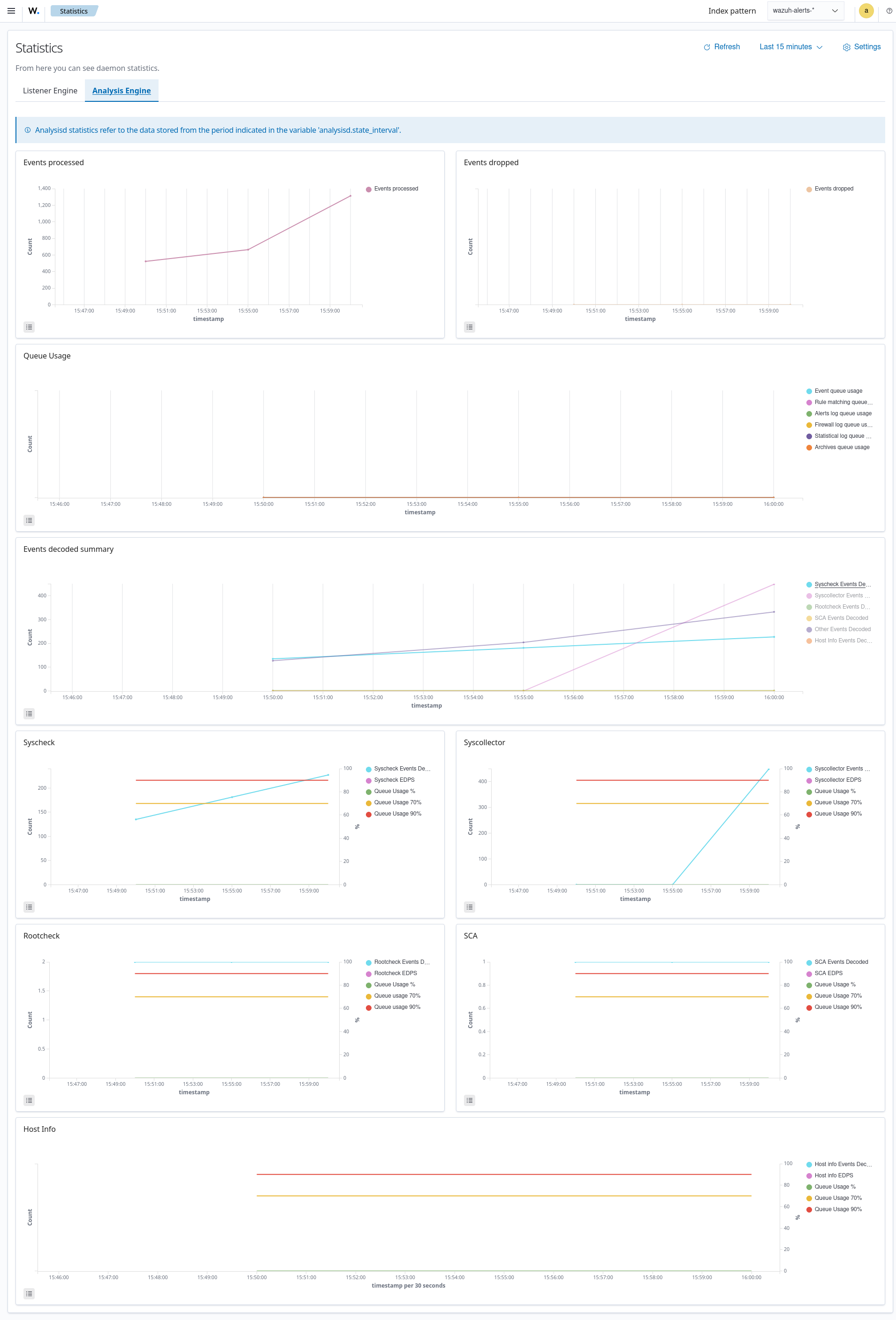

To visualize this information in the Wazuh dashboard, go to Server management > Statistics.

The wazuh-states-vulnerabilities-* indices

The wazuh-states-vulnerabilities-* index is used in Wazuh to store data related to the vulnerability state of monitored assets. This index typically contains information about vulnerabilities detected on monitored endpoints, including details such as the severity, status, affected software, and vulnerability reference. The * at the end of the index pattern allows for the creation of multiple indices with similar names, segmented by time or other factors. This enables efficient storage and retrieval of vulnerability data over time.

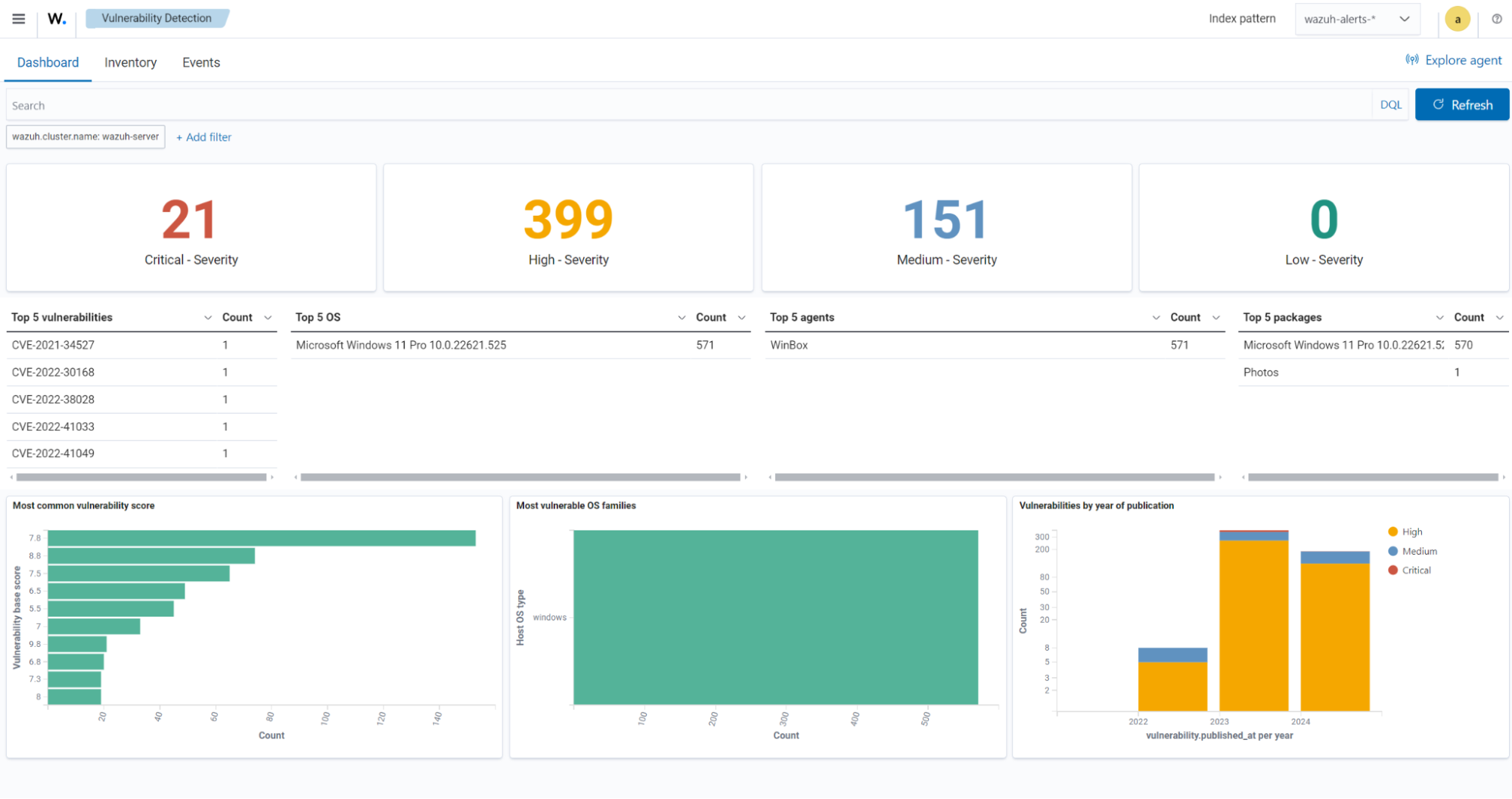

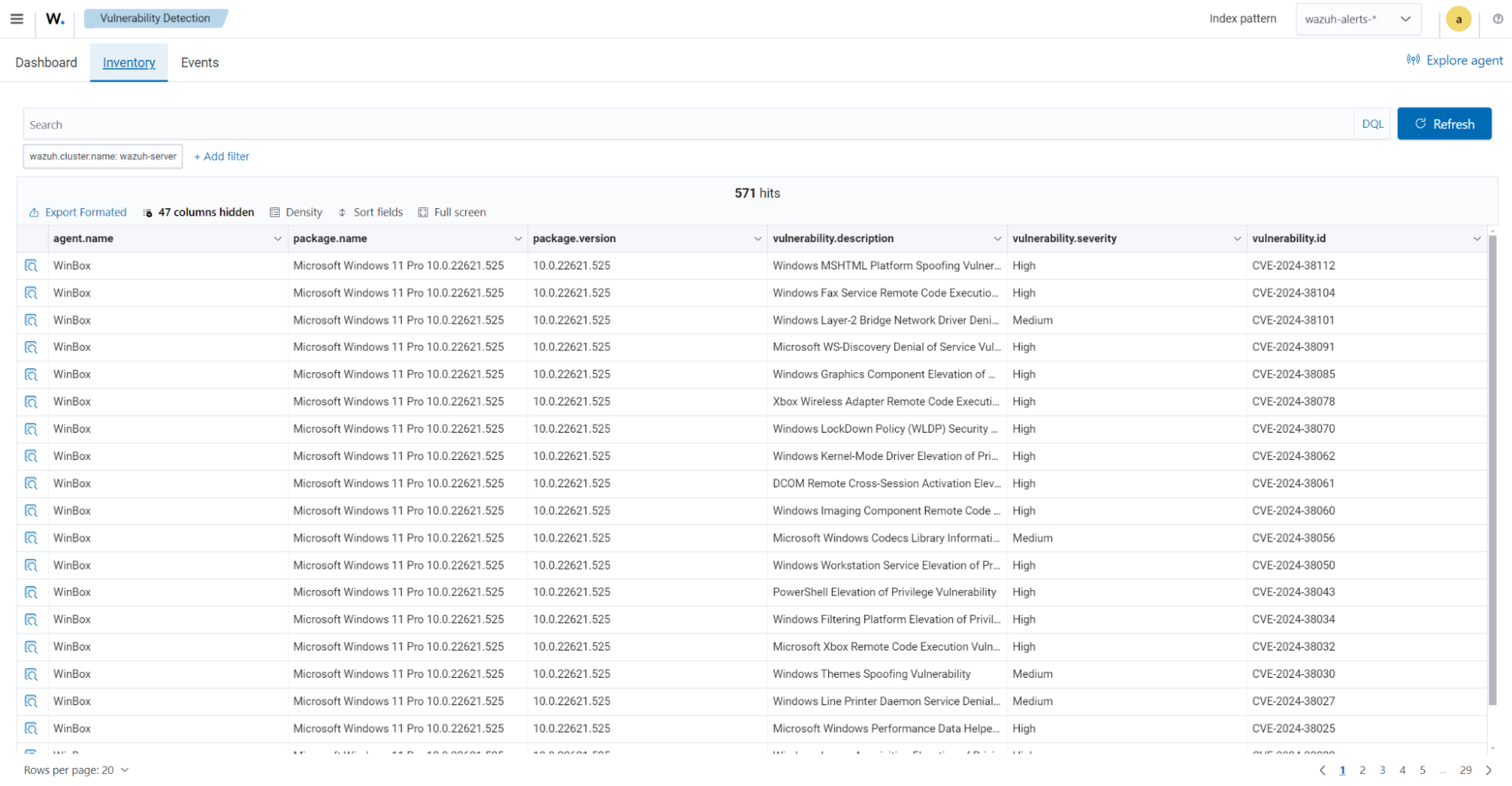

To visualize this information in the Wazuh dashboard, click on Vulnerability Detection from the Wazuh dashboard home page.

The wazuh-states-fim-files-* indices

The wazuh-states-fim-files-* index stores information about files and directories being monitored by the Wazuh File Integrity Monitoring (FIM) module. Each record within this index represents the state of a file or directory on an endpoint at the time it was scanned. This includes metadata such as file paths, permissions, ownership, and cryptographic hashes.

By keeping track of these details, the index provides a baseline snapshot of the monitored file systems. When changes occur, like a file being created, modified, or deleted, Wazuh can compare the new state against the information in this index to quickly detect anomalies.

In practical terms, this index serves as a historical ledger of the monitored endpoint's file system, ensuring that system integrity can be validated and investigated whenever suspicious activity arises. For example, if you navigate to File Integrity Monitoring > Inventory > Files, you will see information relating to monitored files.

The wazuh-states-fim-registries-* indices

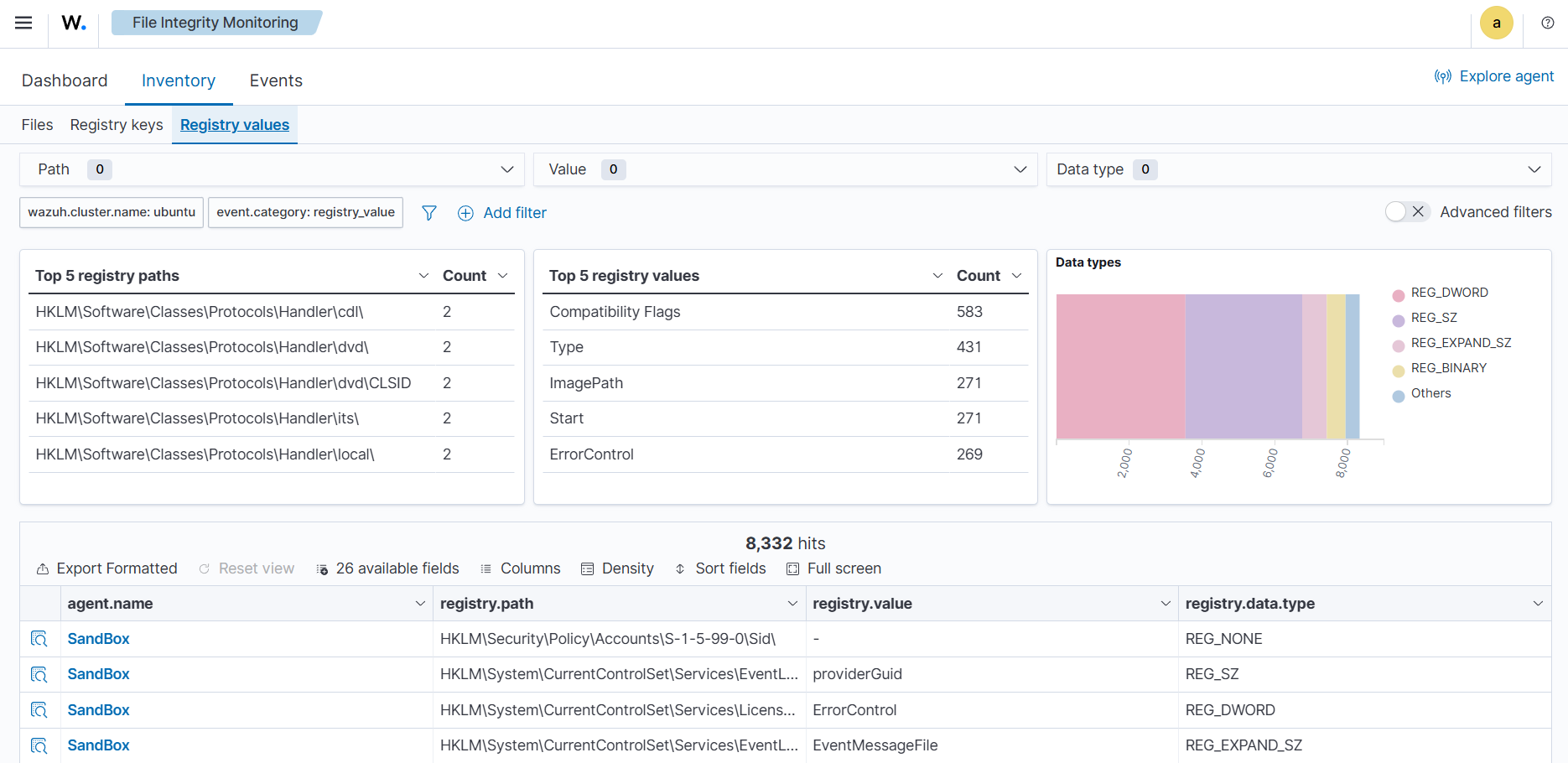

The wazuh-states-fim-registries-* index stores information collected by the Wazuh File Integrity Monitoring (FIM) module for the Windows Registry on the monitored endpoint. Each document in this index represents the state of a monitored registry key or value, including details such as key paths, permissions, and associated values.

This index acts as a reference point for detecting changes in the Windows Registry. When a key or value is created, modified, or removed, Wazuh compares the new state against the records stored here, allowing administrators to spot unauthorized or suspicious changes.

The Windows Registry is often a target for persistence mechanisms, privilege escalation, and configuration tampering; therefore, this index is important for monitoring system integrity on Windows endpoints. For example, if you navigate to File Integrity Monitoring > Inventory > Registry keys or Registry values, you will see information relating to Windows registry keys and values.

The wazuh-states-inventory-hardware-* indices

The wazuh-states-inventory-hardware-* index contains the baseline hardware inventory collected from monitored endpoints. Each document in this index represents details about the endpoint's hardware components, such as CPU and memory.

This index provides security teams and administrators with visibility into the underlying hardware of each endpoint. By tracking this information, Wazuh makes it possible to detect hardware changes, validate asset configurations, and support compliance or auditing efforts.

Since hardware details rarely change under normal circumstances, unexpected modifications captured in this index can serve as a signal for anomalies. For example, if you navigate to IT Hygiene > System > Hardware, you will see information relating to the hardware.

The wazuh-states-inventory-hotfixes-* indices

The wazuh-states-inventory-hotfixes-* index stores information about Windows updates (hotfixes) installed on monitored endpoints. Each entry in this index corresponds to a specific update, including details such as the hotfix identifier, description, and installation date.

This index is closely related to the Wazuh vulnerability detection module. By cross-referencing installed hotfixes with known vulnerability databases, Wazuh can determine which vulnerabilities have already been patched and which ones remain unpatched on an endpoint.

Beyond vulnerability management, this index also helps administrators to verify system update compliance, audit patch history, and ensure that critical updates are consistently applied across their environment.

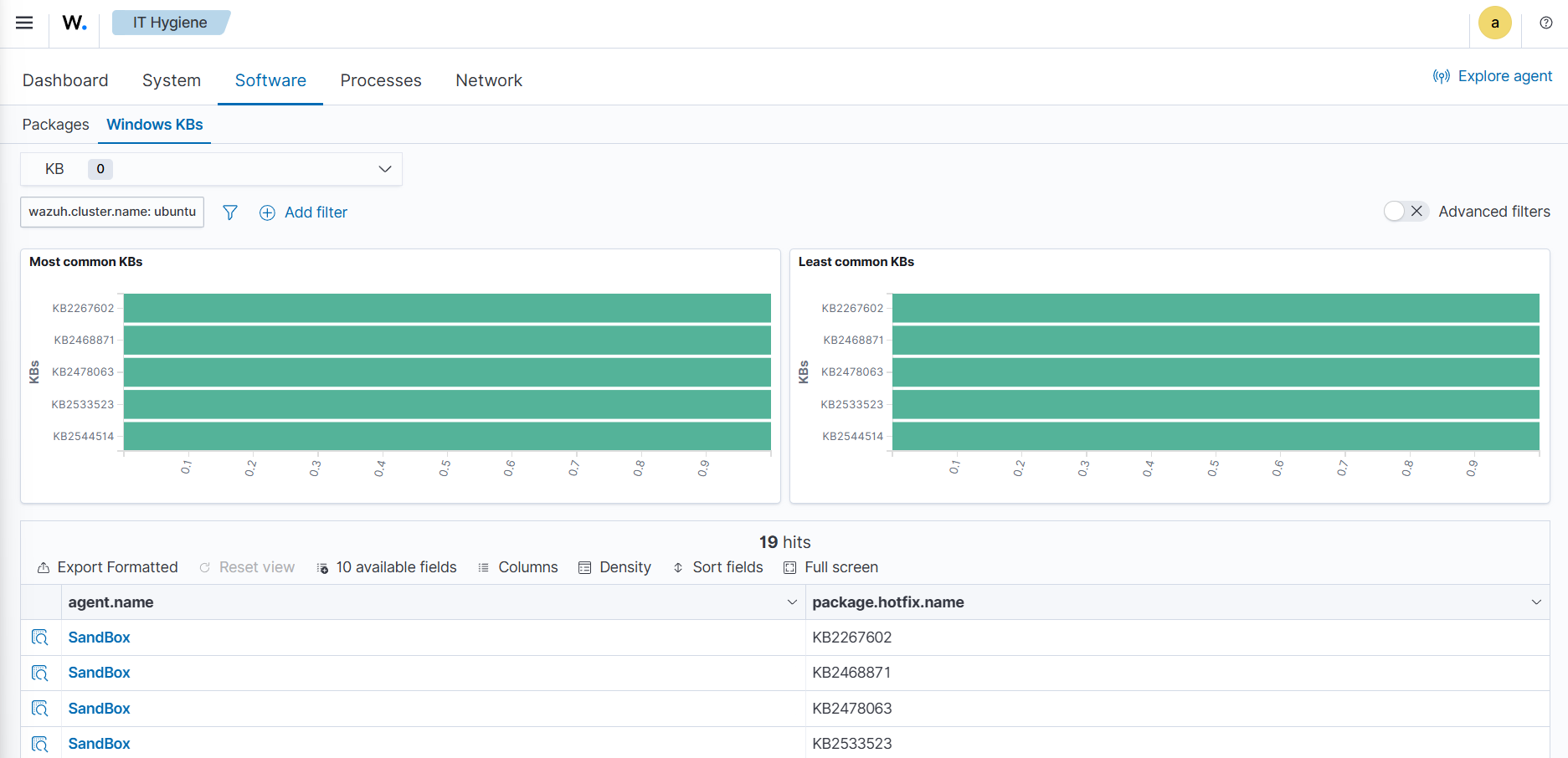

To find information relating to the hotfixes on Windows endpoints, navigate to IT Hygiene > Software > Windows KBs.

The wazuh-states-inventory-interfaces-* indices

The wazuh-states-inventory-interfaces-* index stores detailed information about the network interfaces on monitored endpoints. Each document records attributes such as interface status (up or down), MAC address, and packet transfer statistics.

This index gives administrators visibility into the networking interfaces on their systems. By tracking interface activity and configuration changes, we detect unusual behavior such as interfaces going down unexpectedly, new interfaces appearing, or abnormal packet transfer patterns.

In addition to aiding security investigations, this index is also useful for operational monitoring, capacity planning, and verifying that network configurations remain consistent with organizational standards.

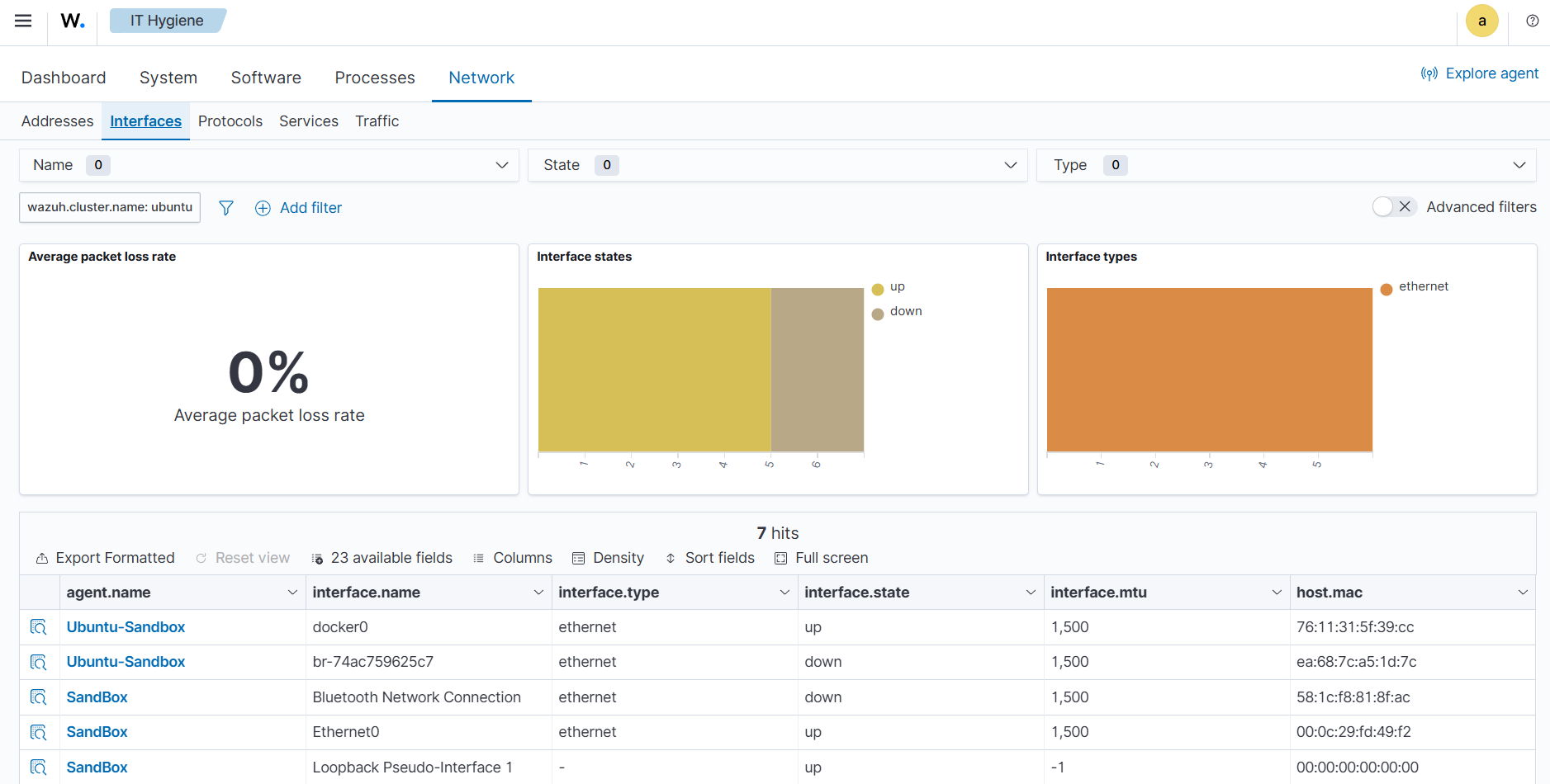

To find information relating to an endpoint's network interface, navigate to IT Hygiene > Network > Interfaces.

The wazuh-states-inventory-networks-* indices

The wazuh-states-inventory-networks-* index contains information about the IPv4 and IPv6 addresses assigned to network interfaces on monitored endpoints. Each record shows details on the interface to IP address mapping, enabling visibility into how an endpoint is connected to the network.

This index is valuable for tracking changes in network configurations, such as new IP addresses being assigned and old ones being removed. Such changes can indicate legitimate reconfiguration, but they may also point to misconfigurations or suspicious activity.

By maintaining this inventory, Wazuh helps administrators validate network settings, support compliance requirements, and investigate security incidents where IP address history and assignments are needed.

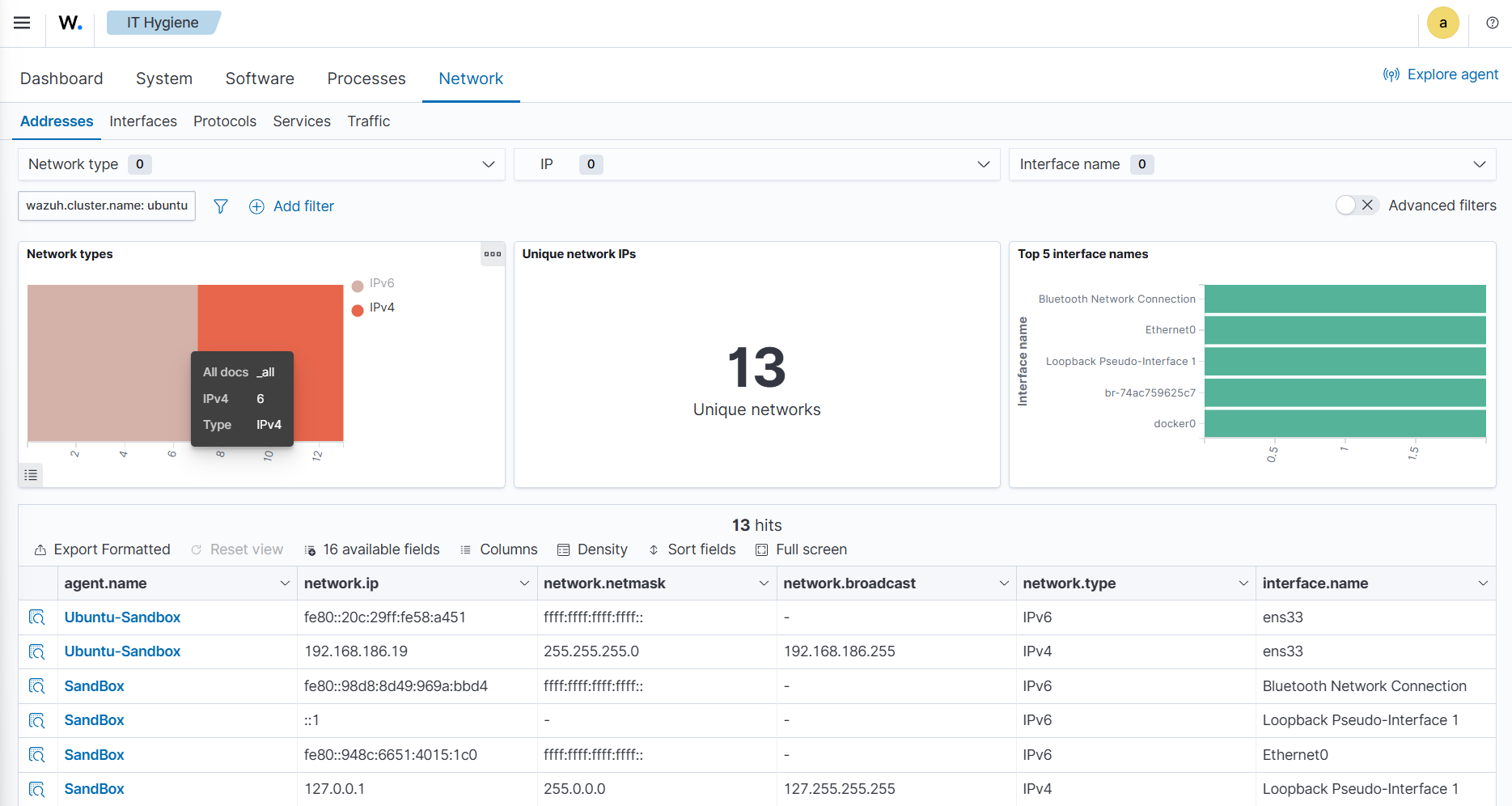

To find information relating to an endpoint's IP address assignment, navigate to IT Hygiene > Network > Addresses.

The wazuh-states-inventory-packages-* indices

The wazuh-states-inventory-packages-* index stores information about the software packages currently installed on monitored endpoints. Each record details a package and includes details such as the package name, version, and vendor.

This index provides the foundation for software inventory management within Wazuh. It also enables administrators to track changes in the software stack, verify compliance with organizational policies, and spot the presence of unauthorized or outdated applications.

This index is a critical component of Wazuh vulnerability detection, which cross-references package versions with known vulnerabilities to identify endpoints that may be exposed. In this way, the index not only aids asset management but also plays a direct role in improving security posture.

To find information relating to an endpoint's software packages, navigate to IT Hygiene > Software > Packages.

The wazuh-states-inventory-ports-* indices

The wazuh-states-inventory-ports-* index records the open network ports detected on monitored endpoints. It includes details such as port numbers, associated services, and listening states.

By maintaining visibility into exposed ports, this index helps administrators identify unauthorized services, track changes in system exposure, and reduce the attack surface. Unsanctioned open ports can be an early sign of compromise or misconfiguration, making this data essential for both security monitoring and compliance audits.

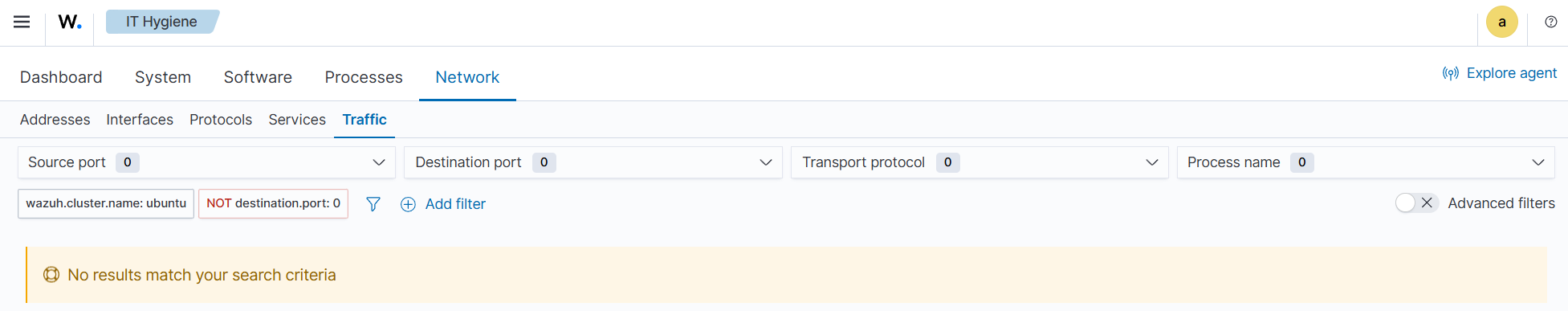

To find information relating to ports on a monitored endpoint, navigate to IT Hygiene > Network > Traffic.

The wazuh-states-inventory-processes-* indices

The wazuh-states-inventory-processes-* index contains information about the processes running on monitored endpoints. Each entry describes attributes like process name, PID (process ID), and an associated user.

Tracking running processes allows Wazuh to detect suspicious or unauthorized software execution. This visibility is crucial for spotting malware, persistence mechanisms, or rogue processes that may evade traditional defenses. It also provides administrators with a historical reference for system activity, supporting forensic investigations.

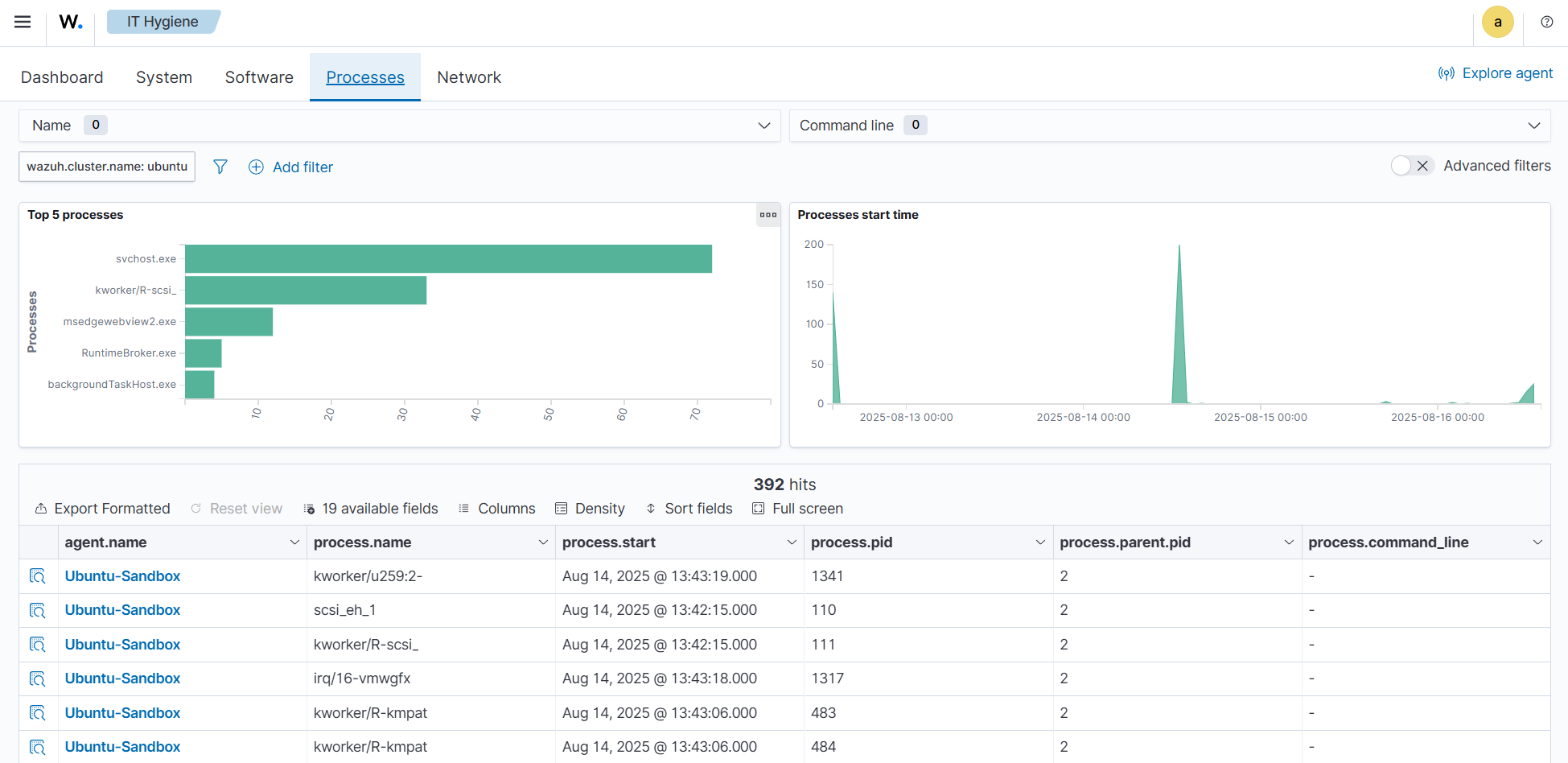

To find information relating to processes on a monitored endpoint, navigate to IT Hygiene > Processes.

The wazuh-states-inventory-protocols-* indices

The wazuh-states-inventory-protocols-* index stores details about the network routing configuration and supported protocols for each network interface on monitored endpoints. This includes protocol types, routing tables, and interface associations.

Monitoring this information enables organizations to ensure network configurations align with expected baselines. Unexpected protocol changes or routing entries can indicate misconfigurations or malicious activity, such as traffic redirection or tunneling attempts.

To find information relating to protocols on a monitored endpoint, navigate to IT Hygiene > Network > Protocols.

The wazuh-states-inventory-system-* indices

The wazuh-states-inventory-system-* index provides system-level details about each monitored endpoint, including the operating system, version, hostname, and architecture.

This index acts as a master record of core system attributes, supporting inventory management, compliance tracking, and security investigations. It also allows administrators to group and correlate alerts based on system name, OS type, and architecture.

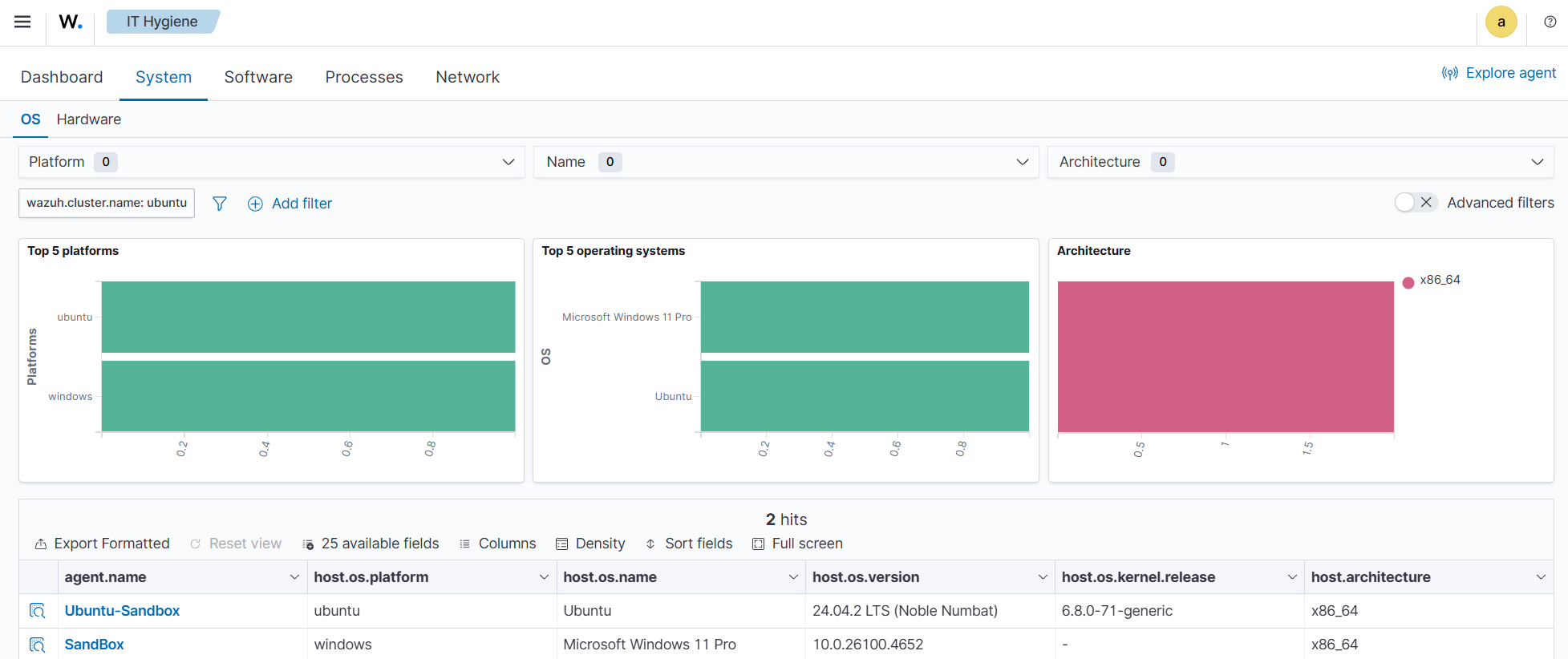

To find system-level information relating to monitored endpoints, navigate to IT Hygiene > System > OS.
