Manager verification using SSL

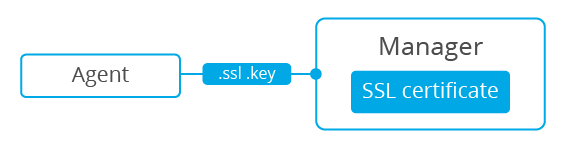

To verify the manager using SSL, it is needed to create a SSL certificate for the Wazuh manager and sign it using the Certificate of Authority (CA) created in the previous section. This will allow the agents to verificate the Wazuh manager while they are been registered.

../../../_images/SSLregister1.png

In this example, we are going to create a certificate for a Wazuh manager, whose IP address is 192.168.1.2.

Wazuh manager

Follow these steps in the Wazuh server:

  1. Issue and sign a certificate for the manager. You can enter the hostname or the IP address of the Wazuh server where the agents are going to be registerd. In this case, the Wazuh server IP is 192.168.1.2:
# openssl req -new -nodes -newkey rsa:4096 -keyout sslmanager.key -out sslmanager.csr -subj '/C=US/CN=192.168.1.2'
# openssl x509 -req -days 365 -in sslmanager.csr -CA rootCA.pem -CAkey rootCA.key -out sslmanager.cert -CAcreateserial
  1. Copy the newly created certificate and its key to the /var/ossec/etc folder:
# cp sslmanager.cert sslmanager.key /var/ossec/etc
  1. Restart the Wazuh manager:
  1. For Systemd:
# systemctl restart wazuh-manager
  1. For SysV Init:
# service wazuh-manager restart

Wazuh agents

Once you have completed the Wazuh manager section, you need to copy the CA file (.pem) to the agent. In this example, the CA file is rootCA.pem. After that, follow the steps to connect the Wazuh agent to the manager:
