Jumpcloud

Jumpcloud, is a Unified Device and Identity Access Management platform that provides services such as Multi-Factor Authentication (MFA), Single Sign-On, password management, and cloud directory. In this guide, we integrate the Jumpcloud SSO to authenticate users into the Wazuh platform.

There are three stages in the single sign-on integration.

Jumpcloud Configuration
Wazuh indexer configuration
Wazuh dashboard configuration

Jumpcloud Configuration

Create an account in Jumpcloud. Request a free trial if you don't have a paid license.
Create a new user. This step can be skipped if you are just testing, you can use your Jumpcloud admin user for example.

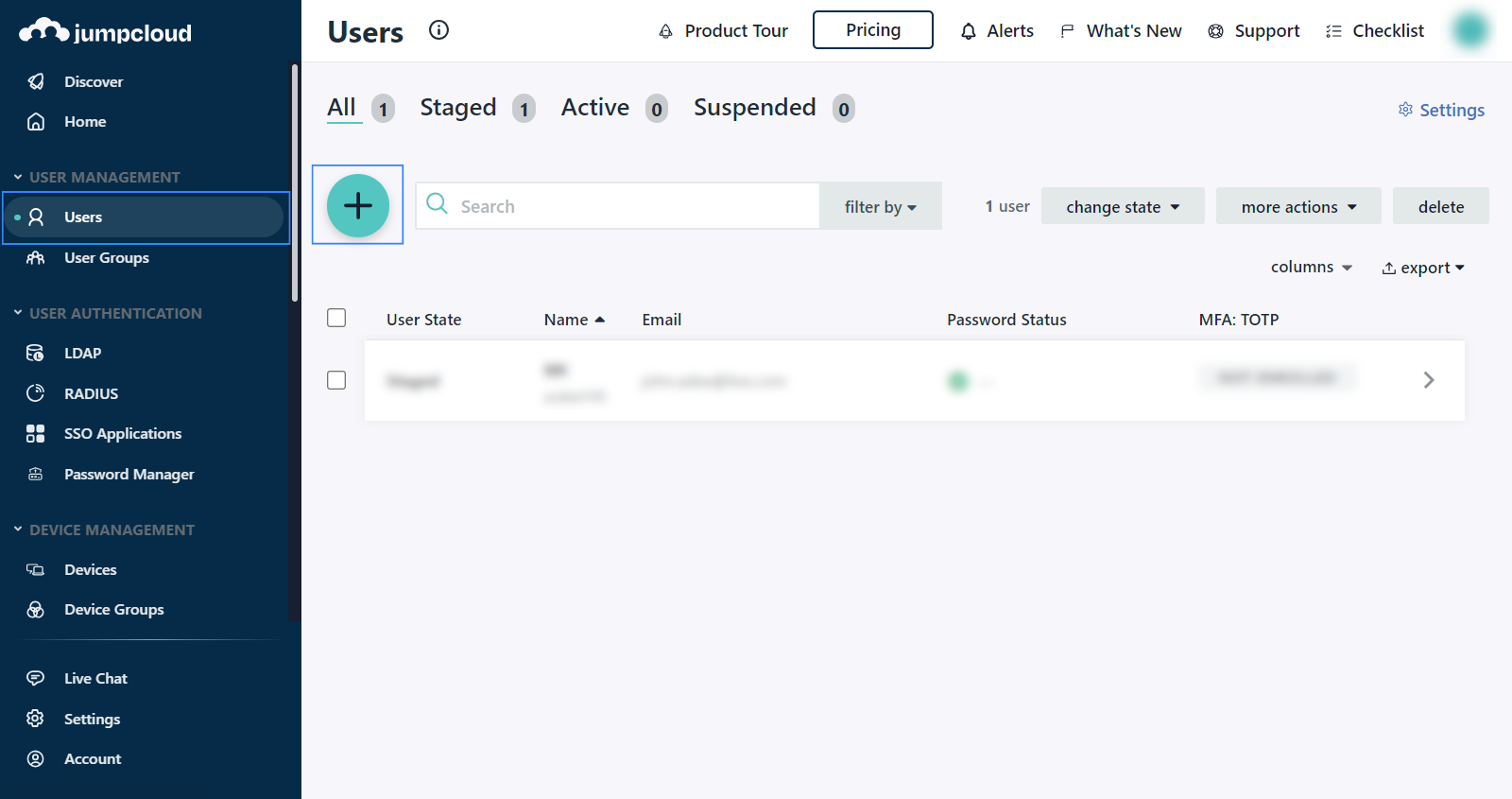

1. Go to User Management, click on Users > (+) > Manual user entry. Fill in the user information, activate the user and click on save user.
Create a new group and assign the user.

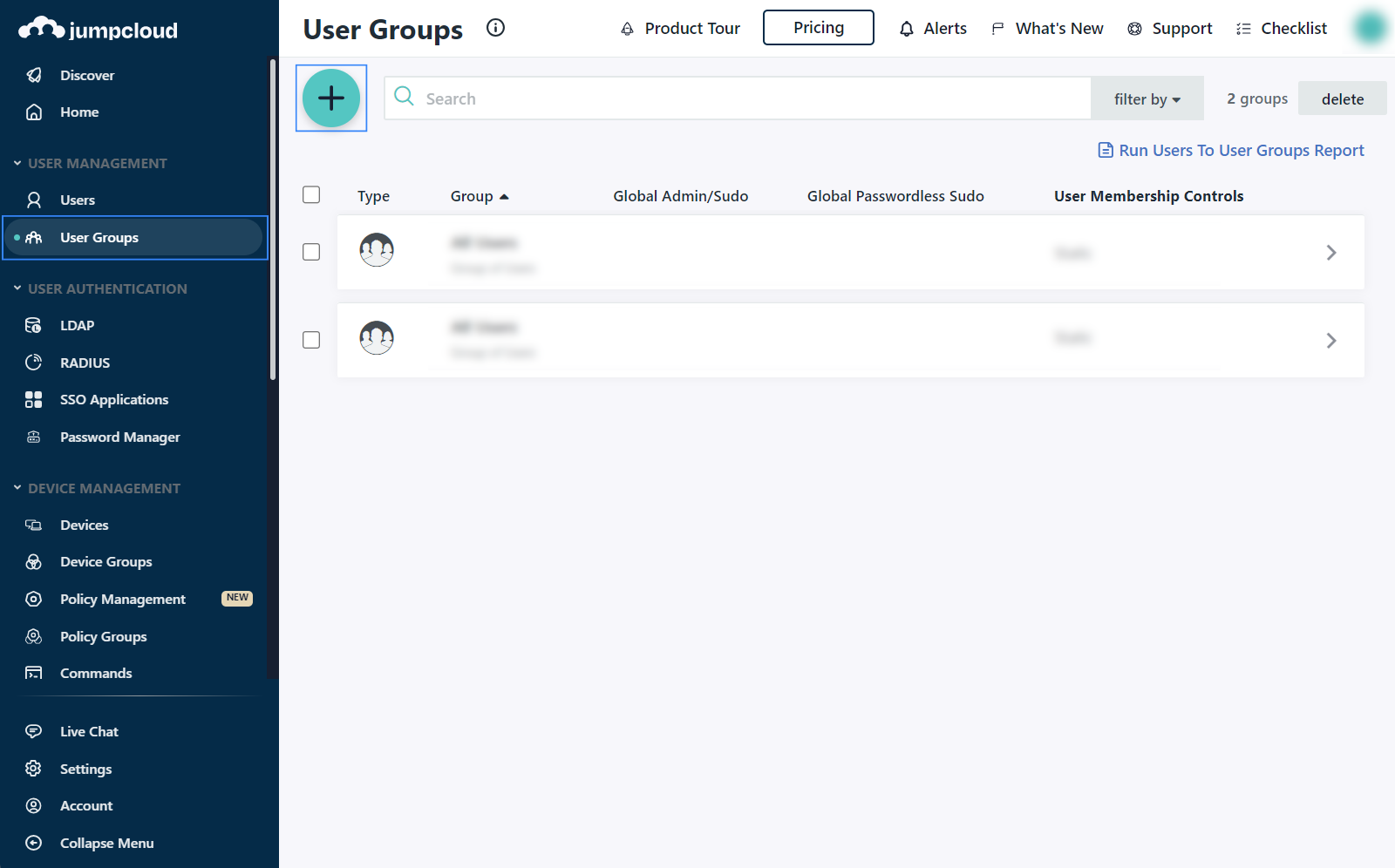

1. Go to User Management > User Groups > (+) and give a name to the group. In our case, this is Wazuh admins.

  The name you give to your group will be used in the configuration. It will be our backend_roles in roles_mapping.yml.

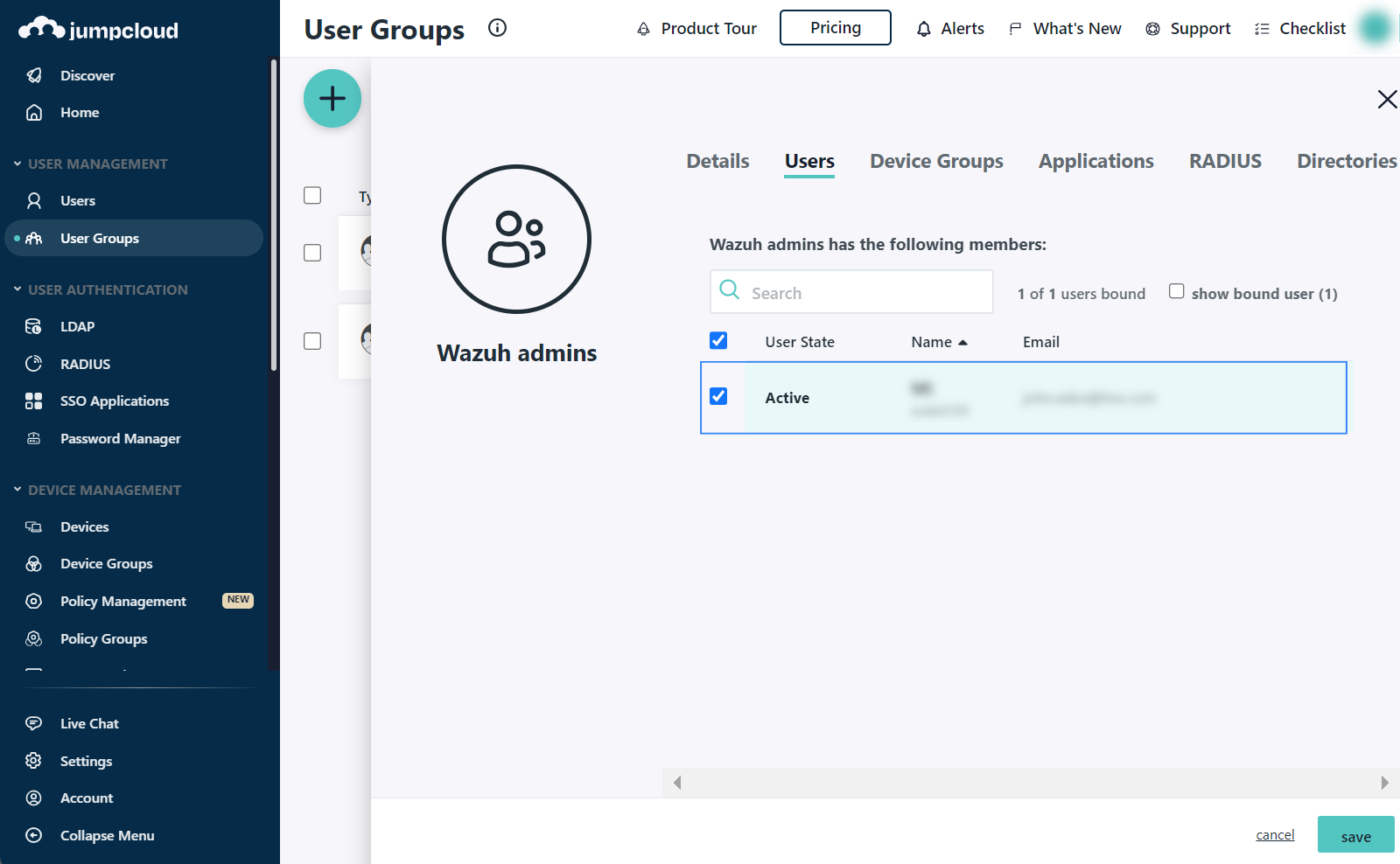

2. In the selected User Groups, go to the Users tab, select the newly created user and Save the changes.
Create a new app. Configure the SAML settings while you create the app.

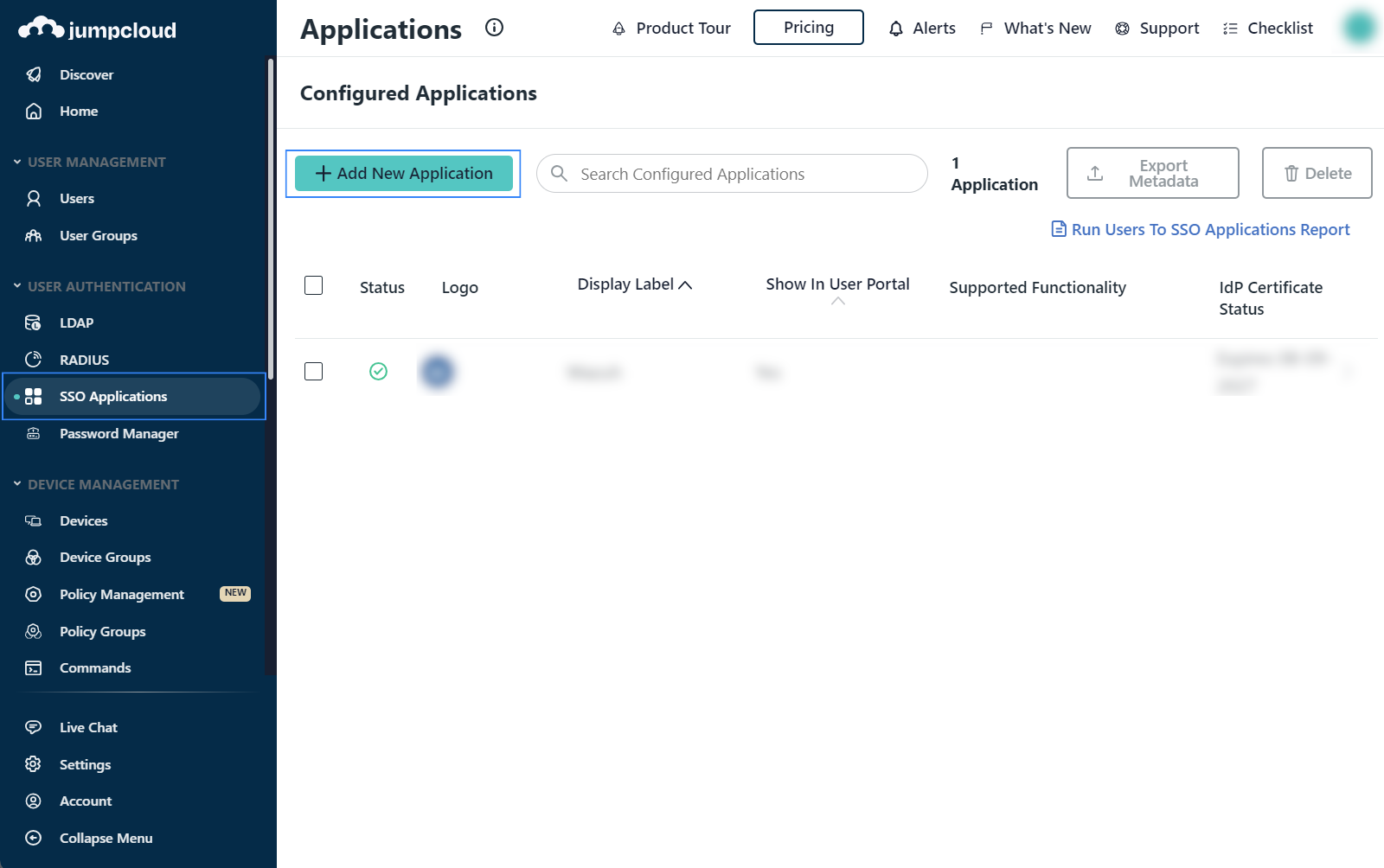

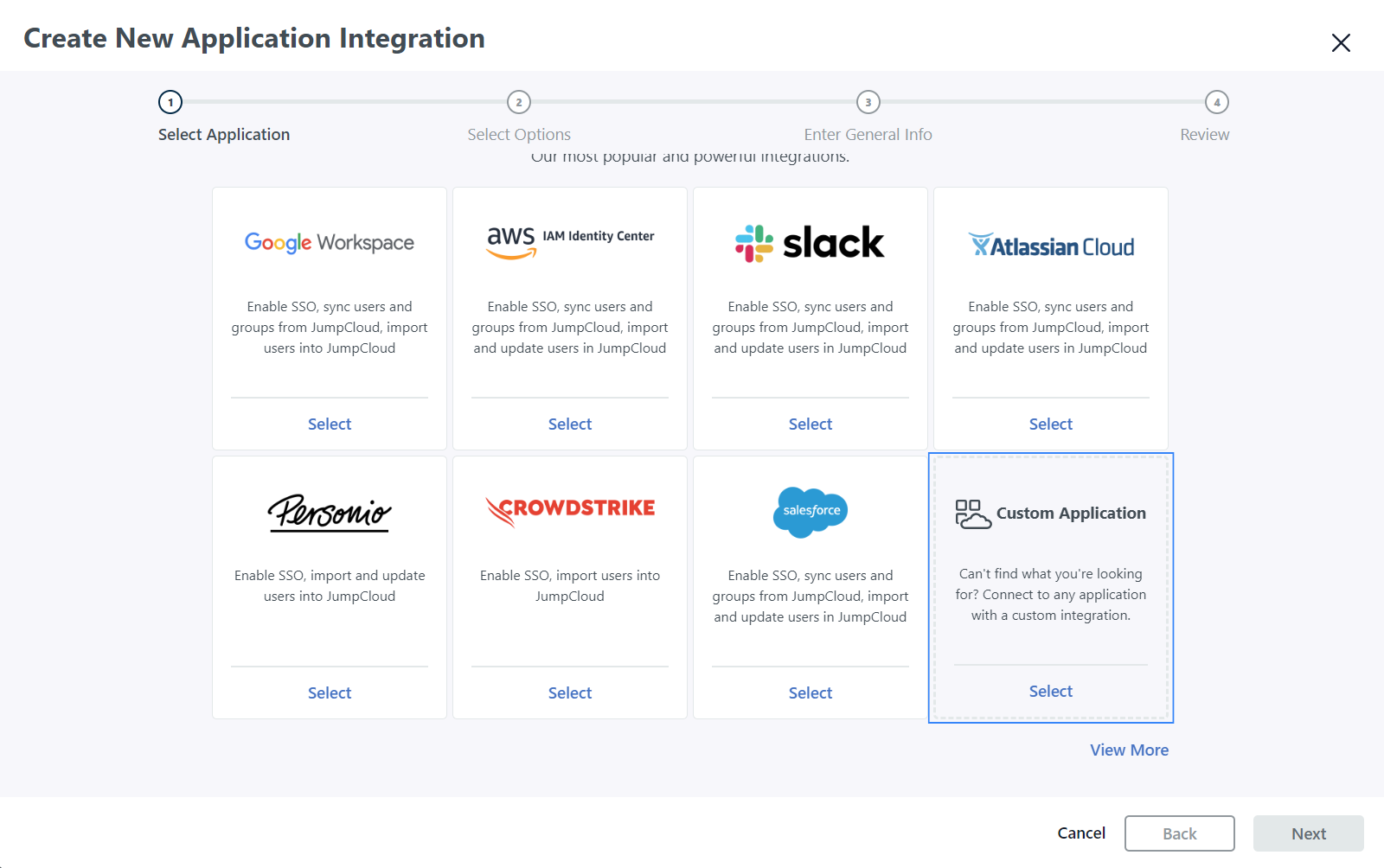

1. Under the User Authentication section, go to SSO Applications, select + Add New Application, and select Custom Application.
2. Complete the Create New Application Integration page with the appropriate information.

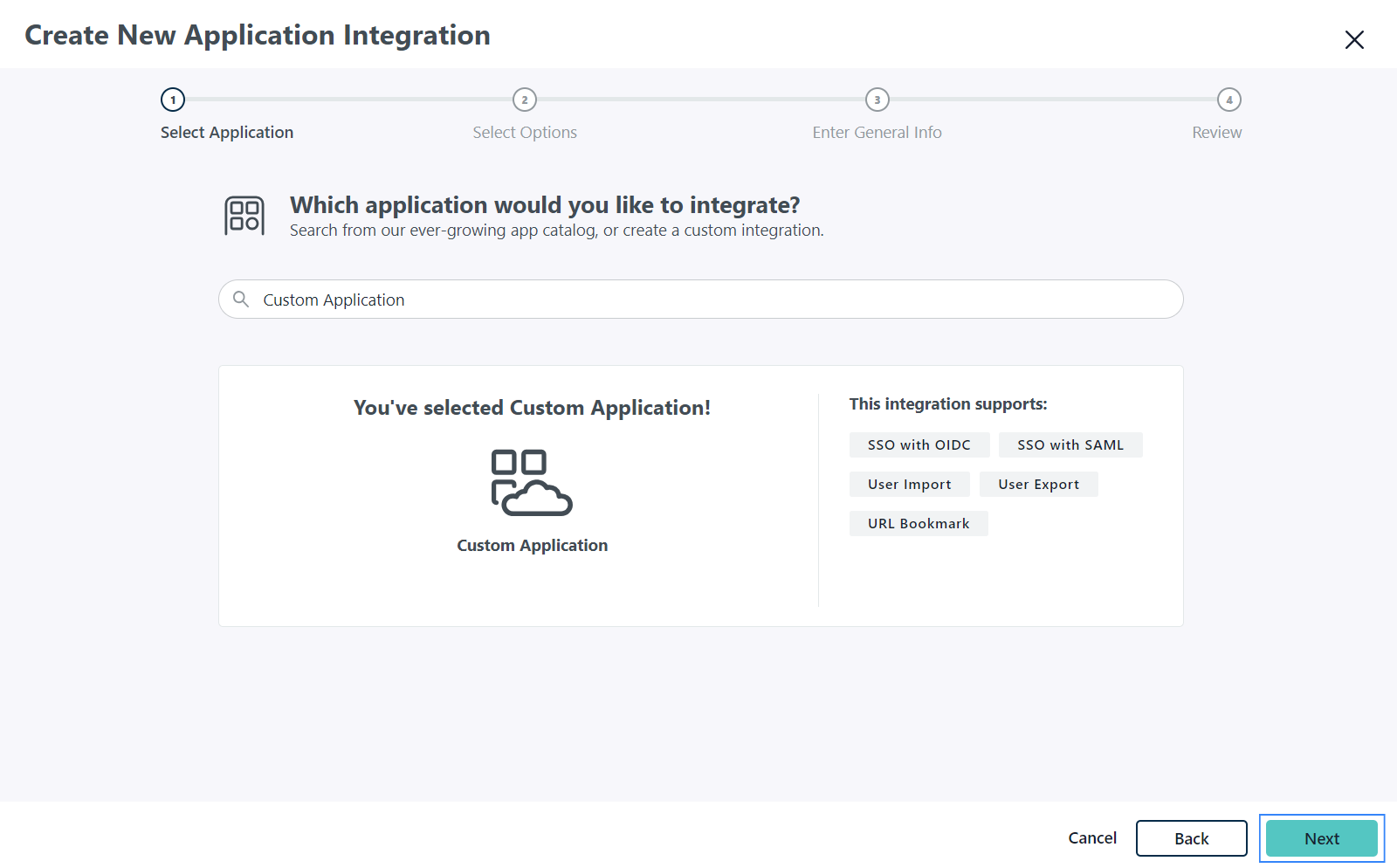

  - Click Next on the Select Application page.

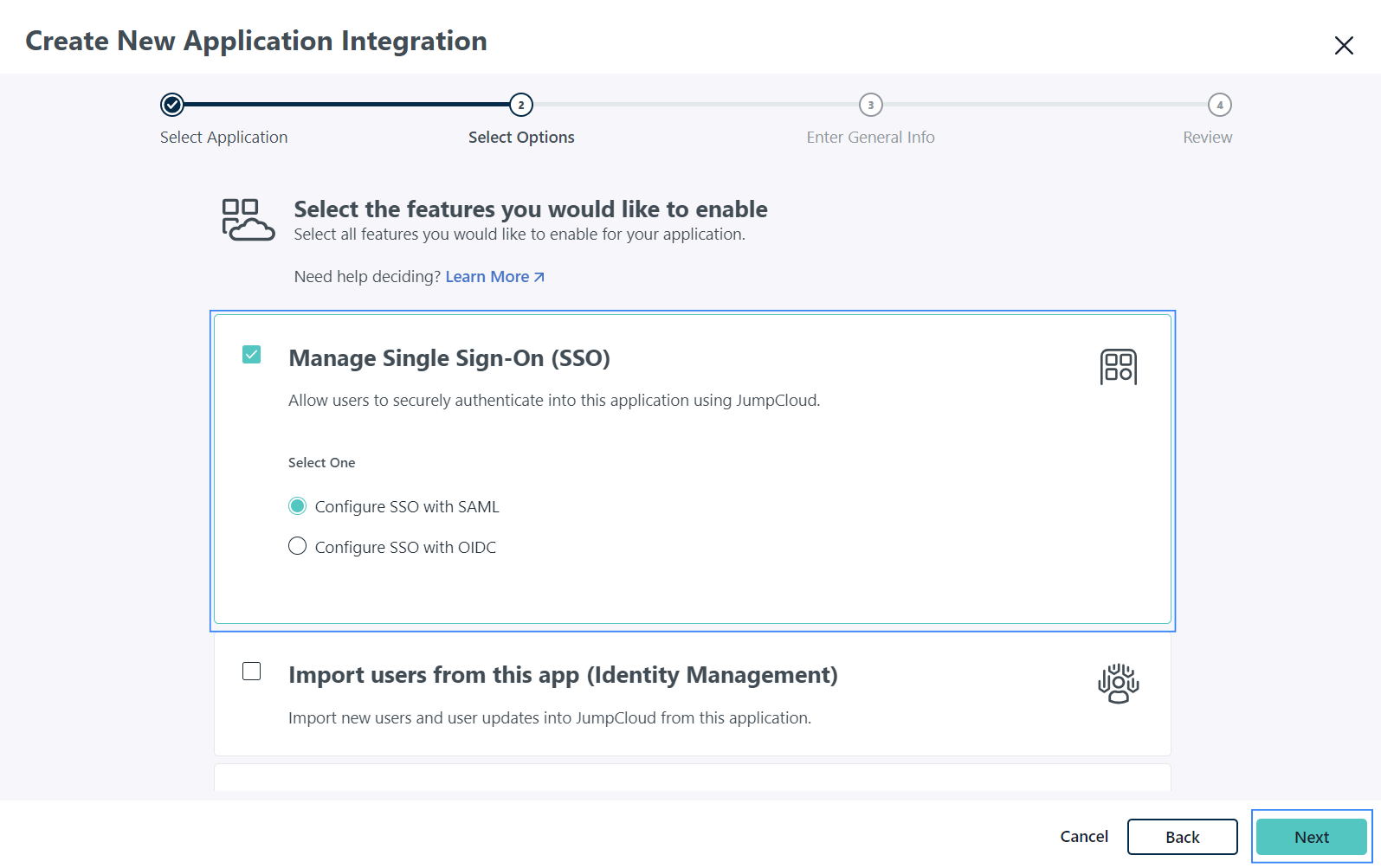

  - Check the Manage Single Sign-On (SSO) and Configure SSO with SAML options on the Select Options page. Click Next to proceed to the next step.

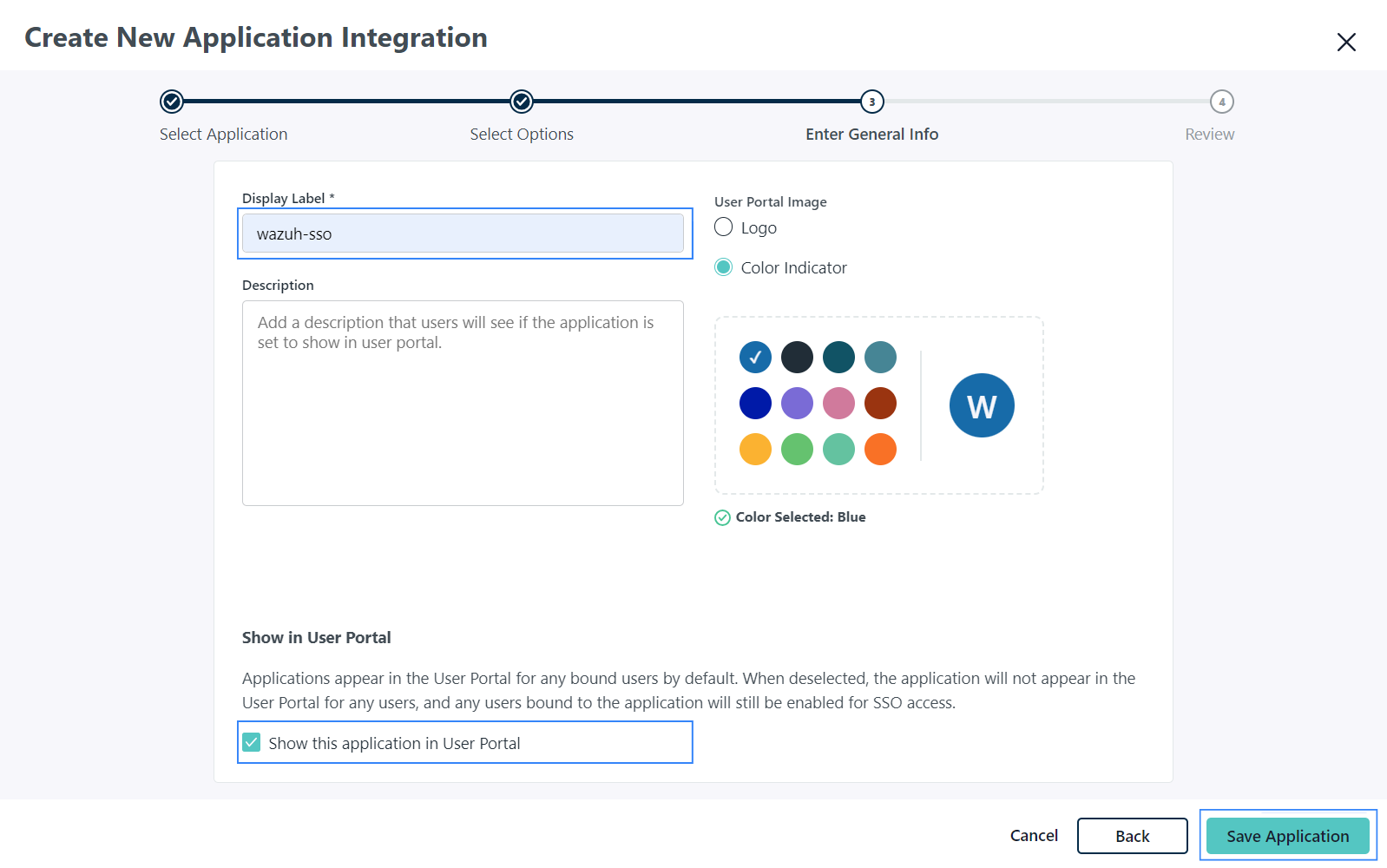

  - Assign a Display Label to the application, and click the Show this application in User Portal checkbox on the Enter General Info page. Click Save Application to apply the settings.

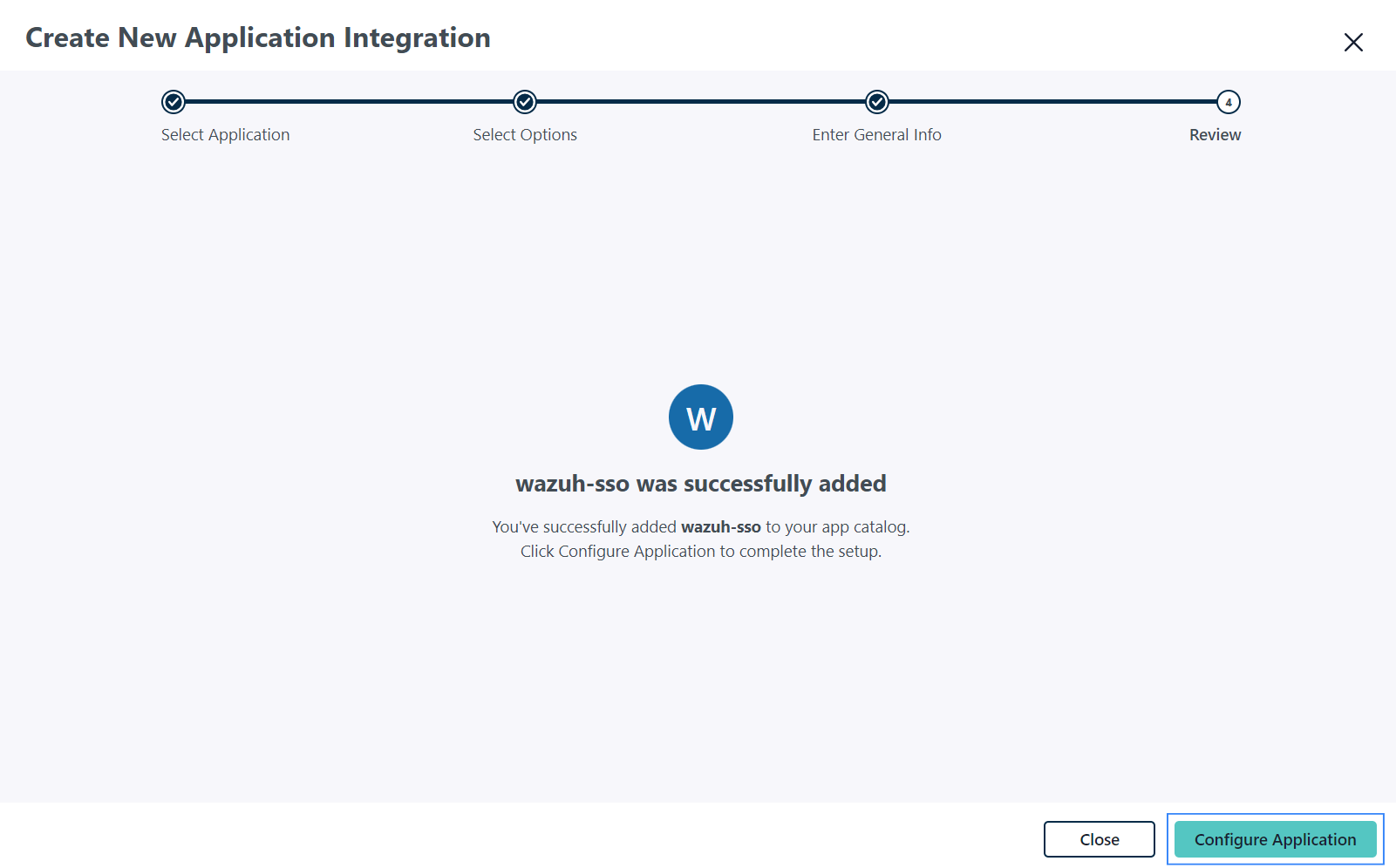

  - Click Configure Application on the Review page.
3. Complete the SSO tab with the appropriate information.

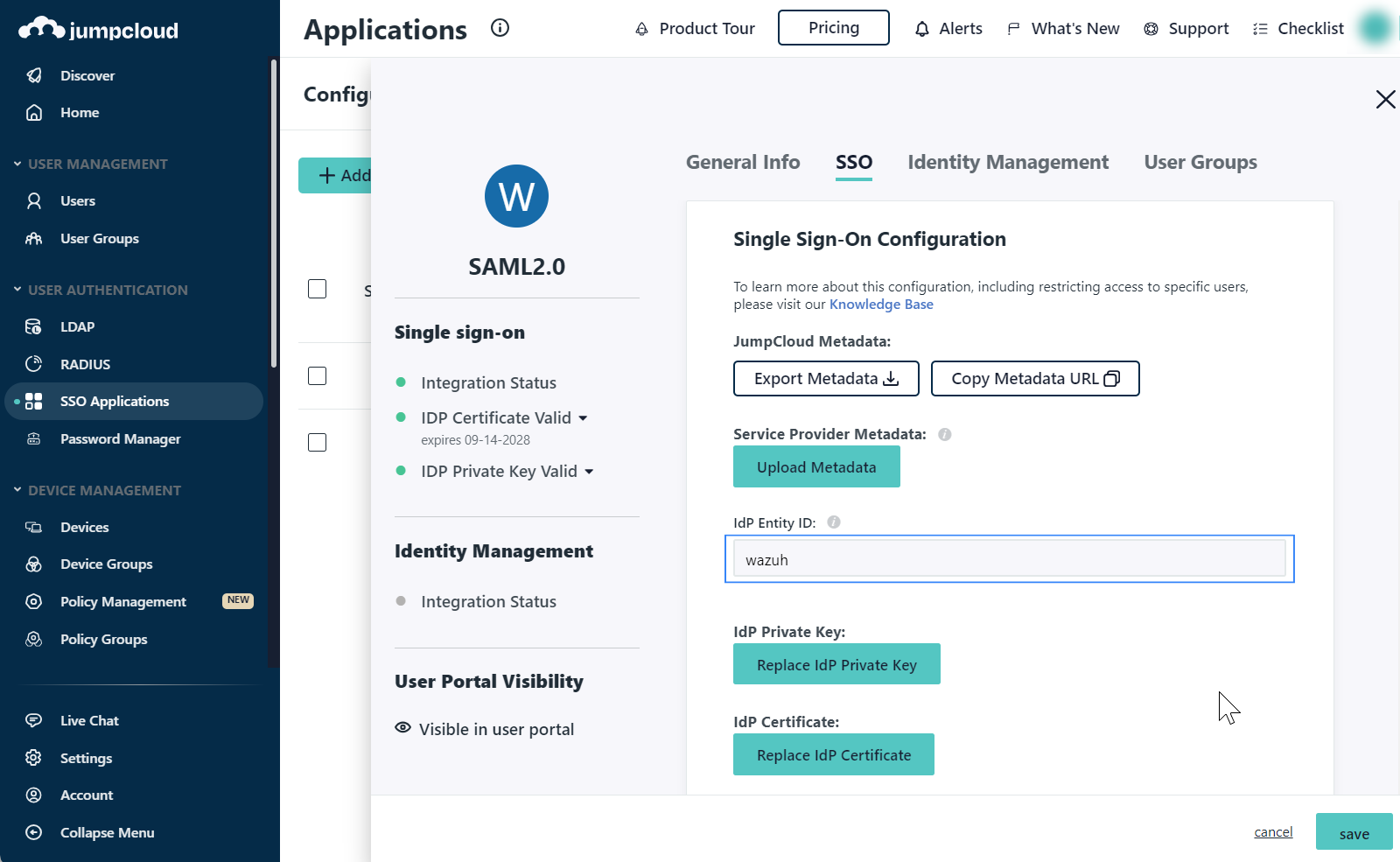

  - IdP Entity ID: wazuh (this will be the idp.entity_id in our Wazuh indexer configuration).

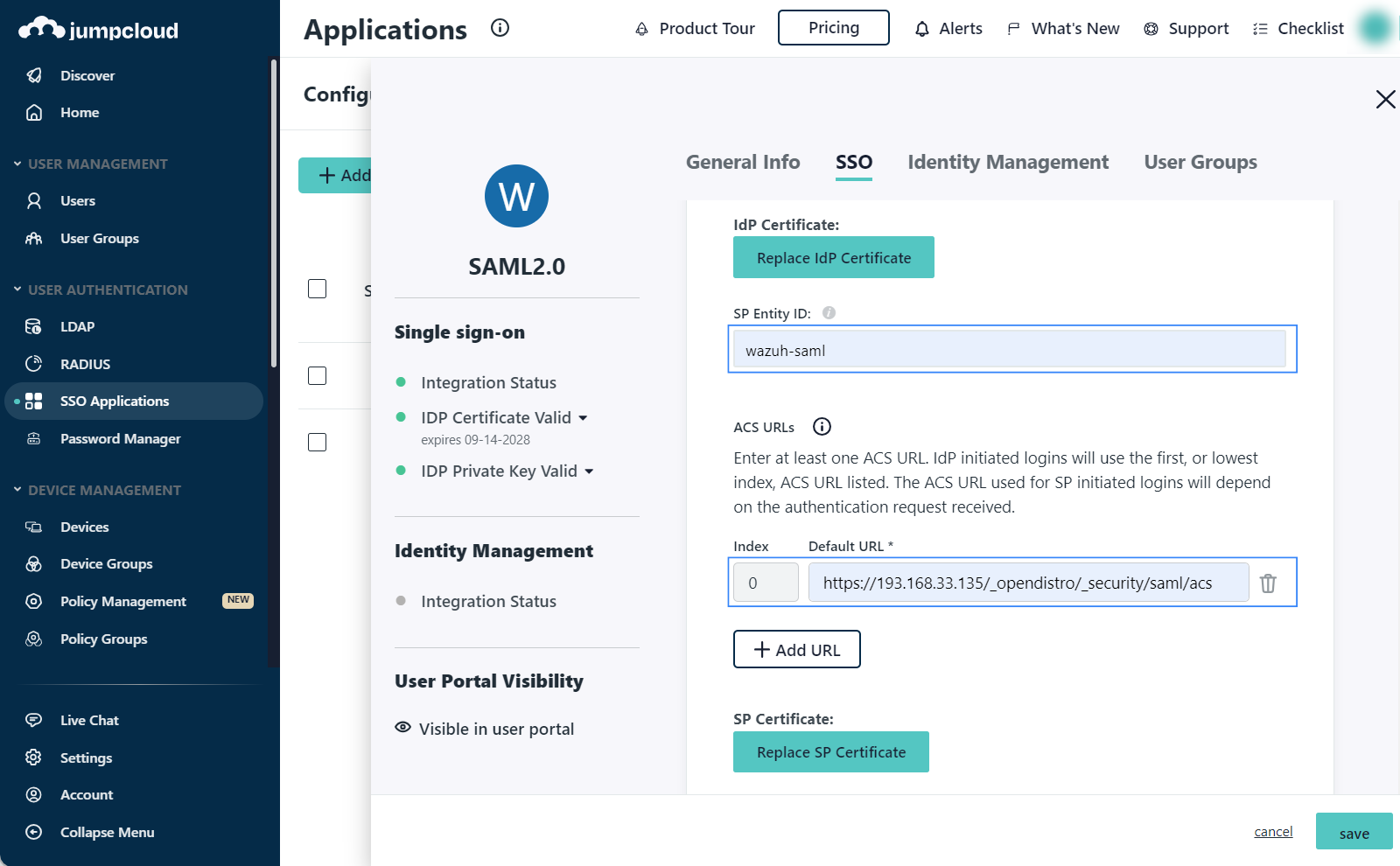

  - SP Entity ID: wazuh-saml (this will be the sp.entity_id in our Wazuh indexer configuration).
  - ACS URL: https://<WAZUH_DASHBOARD_URL>/_opendistro/_security/saml/acs

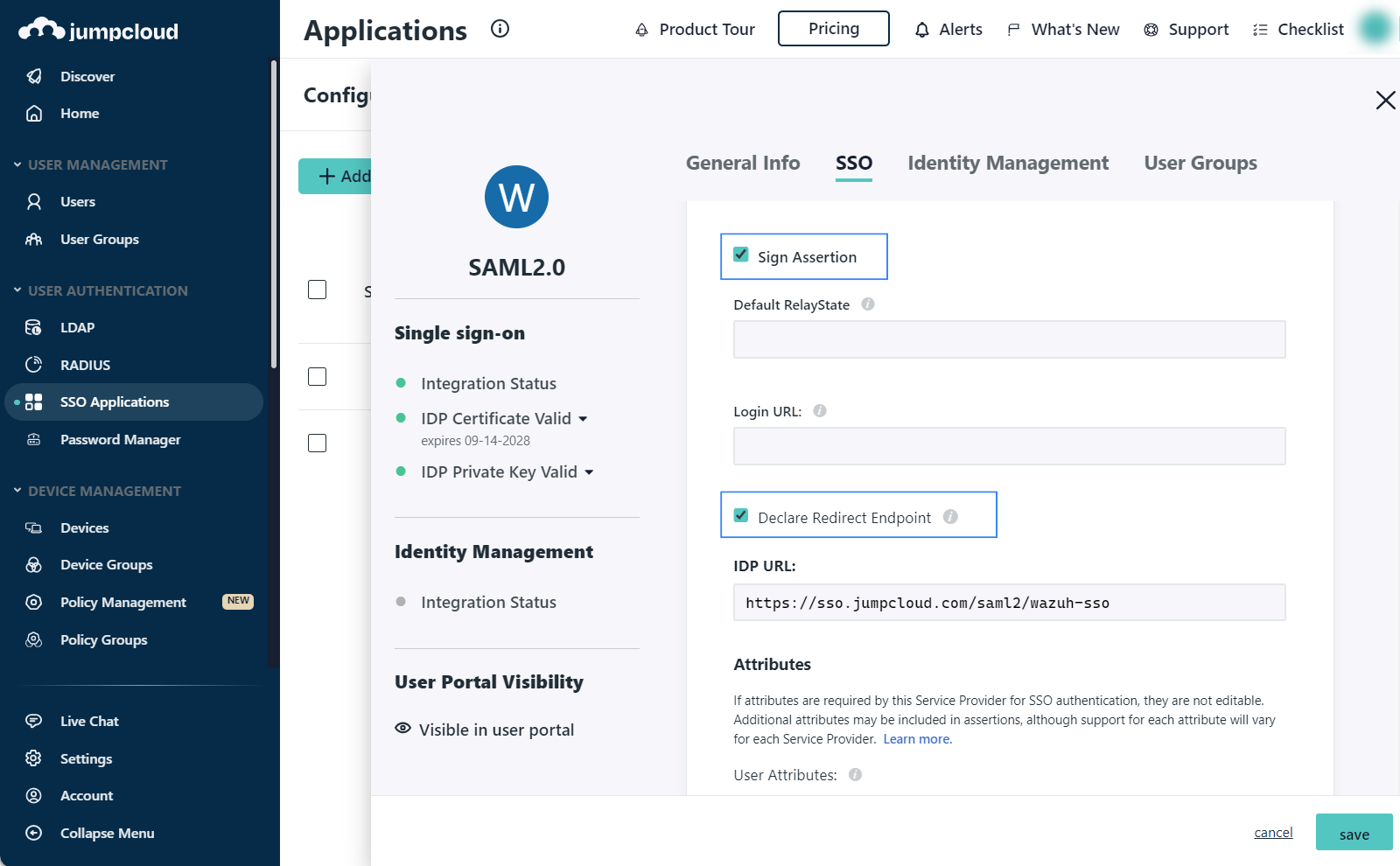

  - Check Sign Assertion.
  - Check Declare Redirect Endpoint.

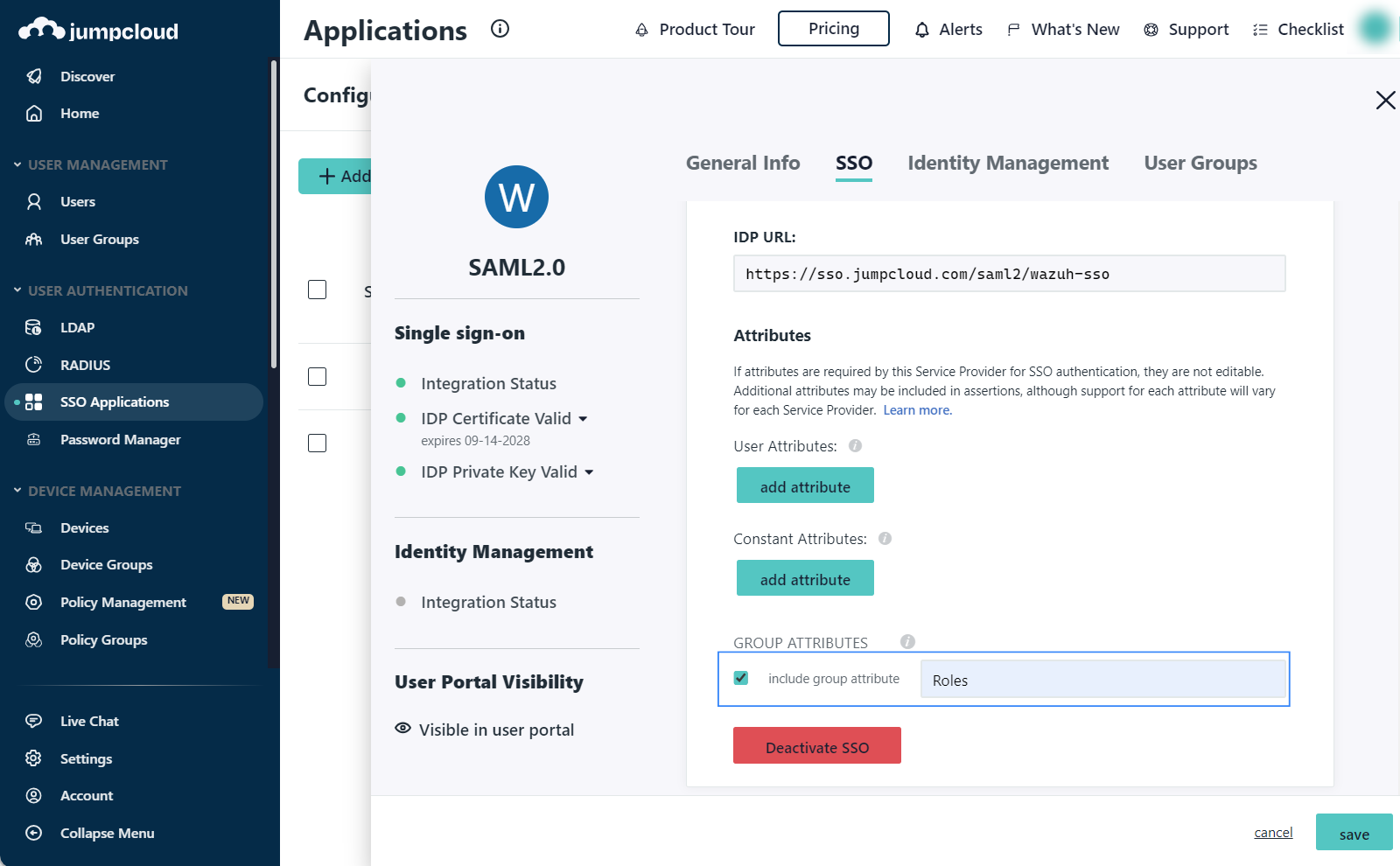

  - Check include group attribute and add Roles as the attribute. This will be used later in the config.yml configuration file.
  The rest of the options can be left as their default values.

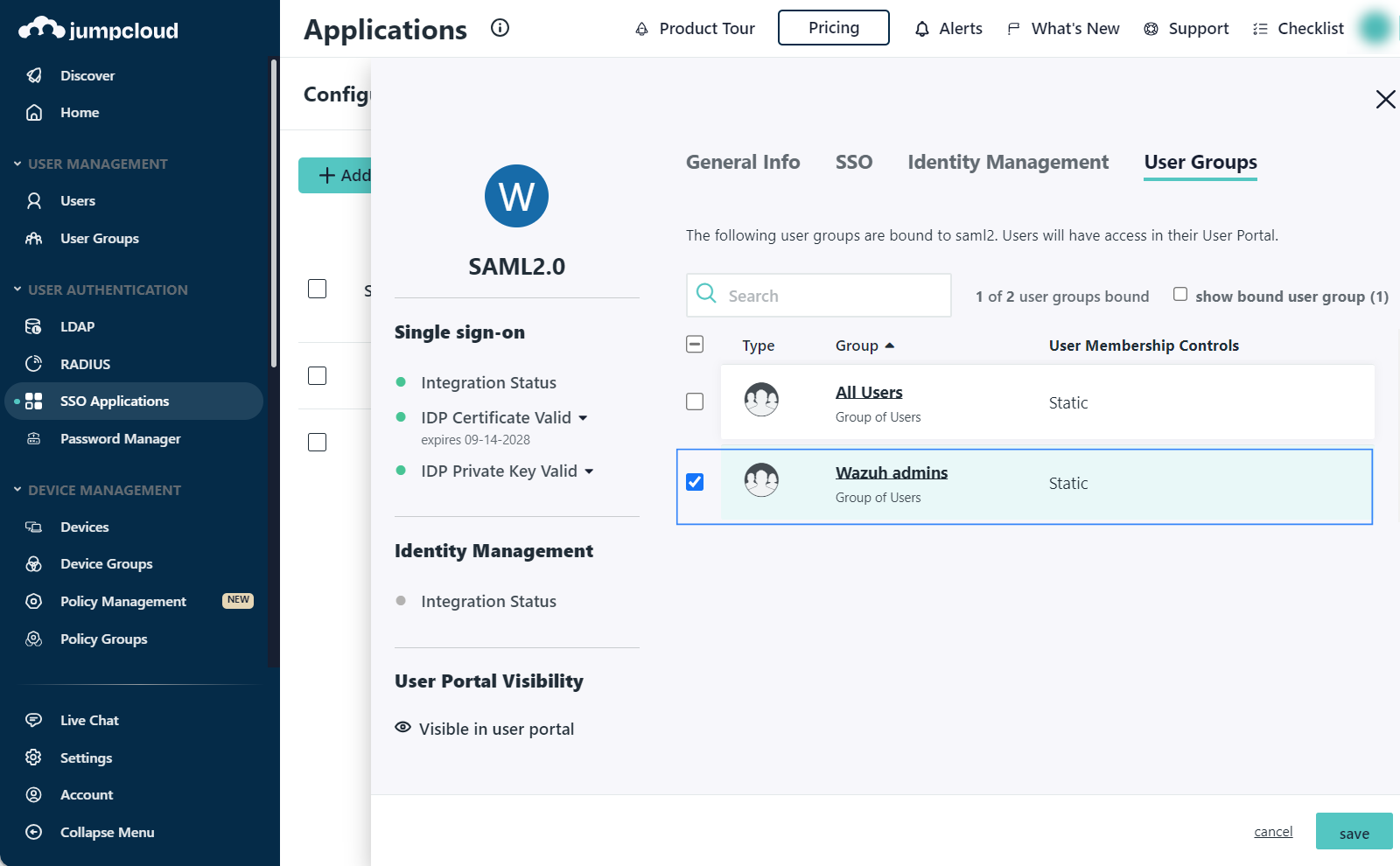

4. On the User Groups tab, select the Group created previously and click save.
Note the necessary parameters from the SAML settings of the new app.

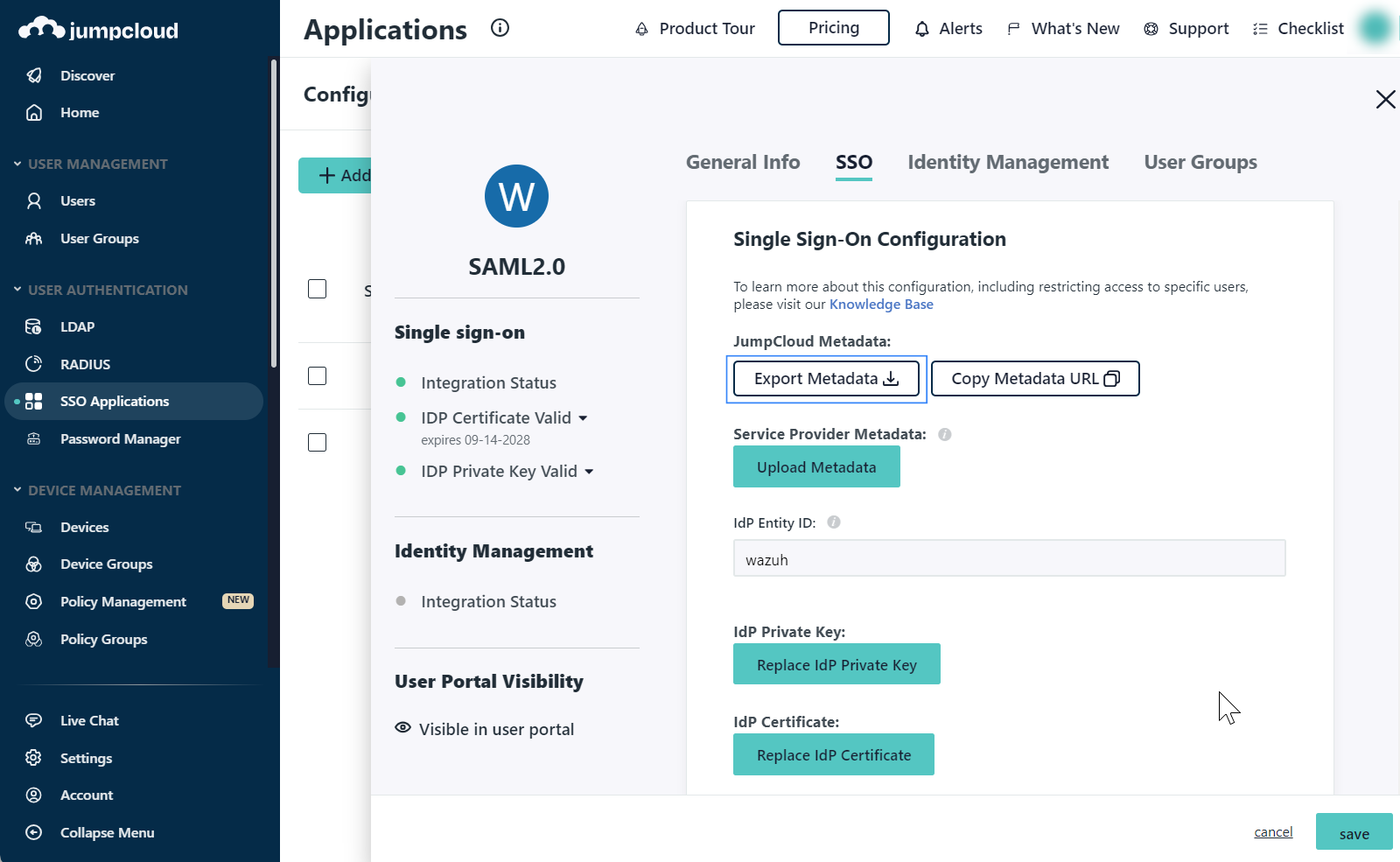

Open the recently created application and go to the SSO tab, select Export Metadata. This will be our metadata_file. Place the metadata file in the configuration directory of the Wazuh indexer. The path to the directory is /etc/wazuh-indexer/opensearch-security/.

Wazuh indexer configuration

Edit the Wazuh indexer security configuration files. We recommend that you back up these files before you carry out the configuration.

Generate a 64-character long random key using the following command.
```
openssl rand -hex 32
```
The output will be used as the exchange_key in the /etc/wazuh-indexer/opensearch-security/config.yml file.
Place the metadata_jumpcloud.xml file within the /etc/wazuh-indexer/opensearch-security/ directory. Set the file ownership to wazuh-indexer using the following command:
```
# chown wazuh-indexer:wazuh-indexer /etc/wazuh-indexer/opensearch-security/metadata_jumpcloud.xml
```

Edit the /etc/wazuh-indexer/opensearch-security/config.yml file and change the following values:

Set the order in basic_internal_auth_domain to 0 and the challenge flag to false.
Include a saml_auth_domain configuration under the authc section similar to the following:

    authc:
...
      basic_internal_auth_domain:
        description: "Authenticate via HTTP Basic against internal users database"
        http_enabled: true
        transport_enabled: true
        order: 0
        http_authenticator:
          type: "basic"
          challenge: false
        authentication_backend:
          type: "intern"
      saml_auth_domain:
        http_enabled: true
        transport_enabled: true
        order: 1
        http_authenticator:
          type: saml
          challenge: true
          config:
            idp:
              metadata_file: '/etc/wazuh-indexer/opensearch-security/metadata_jumpcloud.xml'
              entity_id: wazuh
            sp:
              entity_id: wazuh-saml
              forceAuthn: true
            kibana_url: https://<WAZUH_DASHBOARD_URL>
            roles_key: Roles
            exchange_key: 'b1d6dd32753374557dcf92e241.......'
        authentication_backend:
          type: noop

Ensure to change the following parameters to their corresponding value:

idp.metadata_file

idp.entity_id

sp.entity_id

kibana_url

roles_key

exchange_key

Run the securityadmin script to load the configuration changes made in the config.yml file.

# export JAVA_HOME=/usr/share/wazuh-indexer/jdk/ && bash /usr/share/wazuh-indexer/plugins/opensearch-security/tools/securityadmin.sh -f /etc/wazuh-indexer/opensearch-security/config.yml -icl -key /etc/wazuh-indexer/certs/admin-key.pem -cert /etc/wazuh-indexer/certs/admin.pem -cacert /etc/wazuh-indexer/certs/root-ca.pem -h 127.0.0.1 -nhnv

The -h flag specifies the hostname or the IP address of the Wazuh indexer node. Note that this command uses 127.0.0.1, set your Wazuh indexer address if necessary.

The command output must be similar to the following:

Security Admin v7
Will connect to 127.0.0.1:9200 ... done
Connected as "CN=admin,OU=Wazuh,O=Wazuh,L=California,C=US"
OpenSearch Version: 2.10.0
Contacting opensearch cluster 'opensearch' and wait for YELLOW clusterstate ...
Clustername: wazuh-cluster
Clusterstate: GREEN
Number of nodes: 1
Number of data nodes: 1
.opendistro_security index already exists, so we do not need to create one.
Populate config from /etc/wazuh-indexer/opensearch-security
Will update '/config' with /etc/wazuh-indexer/opensearch-security/config.yml
   SUCC: Configuration for 'config' created or updated
SUCC: Expected 1 config types for node {"updated_config_types":["config"],"updated_config_size":1,"message":null} is 1 (["config"]) due to: null
Done with success

Edit the /etc/wazuh-indexer/opensearch-security/roles_mapping.yml file and change the following values:

Configure the roles_mapping.yml file to map the Jumpcloud user group to the appropriate Wazuh indexer role. In our case, we map the Wazuh admins group to the all_access role:
```
all_access:
  reserved: false
  hidden: false
  backend_roles:
  - "admin"
  - "Wazuh admins"
  description: "Maps admin to all_access"
```

Run the securityadmin script to load the configuration changes made in the roles_mapping.yml file.

# export JAVA_HOME=/usr/share/wazuh-indexer/jdk/ && bash /usr/share/wazuh-indexer/plugins/opensearch-security/tools/securityadmin.sh -f /etc/wazuh-indexer/opensearch-security/roles_mapping.yml -icl -key /etc/wazuh-indexer/certs/admin-key.pem -cert /etc/wazuh-indexer/certs/admin.pem -cacert /etc/wazuh-indexer/certs/root-ca.pem -h 127.0.0.1 -nhnv

The -h flag specifies the hostname or the IP address of the Wazuh indexer node. Note that this command uses 127.0.0.1, set your Wazuh indexer address if necessary.

The command output must be similar to the following:

Security Admin v7
Will connect to 127.0.0.1:9200 ... done
Connected as "CN=admin,OU=Wazuh,O=Wazuh,L=California,C=US"
OpenSearch Version: 2.10.0
Contacting opensearch cluster 'opensearch' and wait for YELLOW clusterstate ...
Clustername: wazuh-cluster
Clusterstate: GREEN
Number of nodes: 1
Number of data nodes: 1
.opendistro_security index already exists, so we do not need to create one.
Populate config from /etc/wazuh-indexer/opensearch-security
Will update '/rolesmapping' with /etc/wazuh-indexer/opensearch-security/roles_mapping.yml
   SUCC: Configuration for 'rolesmapping' created or updated
SUCC: Expected 1 config types for node {"updated_config_types":["rolesmapping"],"updated_config_size":1,"message":null} is 1 (["rolesmapping"]) due to: null
Done with success

Wazuh dashboard configuration

Check the value of run_as in the /usr/share/wazuh-dashboard/data/wazuh/config/wazuh.yml configuration file. If run_as is set to false, proceed to the next step.
```
hosts:
  - default:
      url: https://127.0.0.1
      port: 55000
      username: wazuh-wui
      password: "<WAZUH_WUI_PASSWORD>"
      run_as: false
```
If run_as is set to true, you need to add a role mapping on the Wazuh dashboard. To map the backend role to Wazuh, follow these steps:
1. Click ☰ to open the menu on the Wazuh dashboard, go to Server management > Security, and then Roles mapping to open the page.

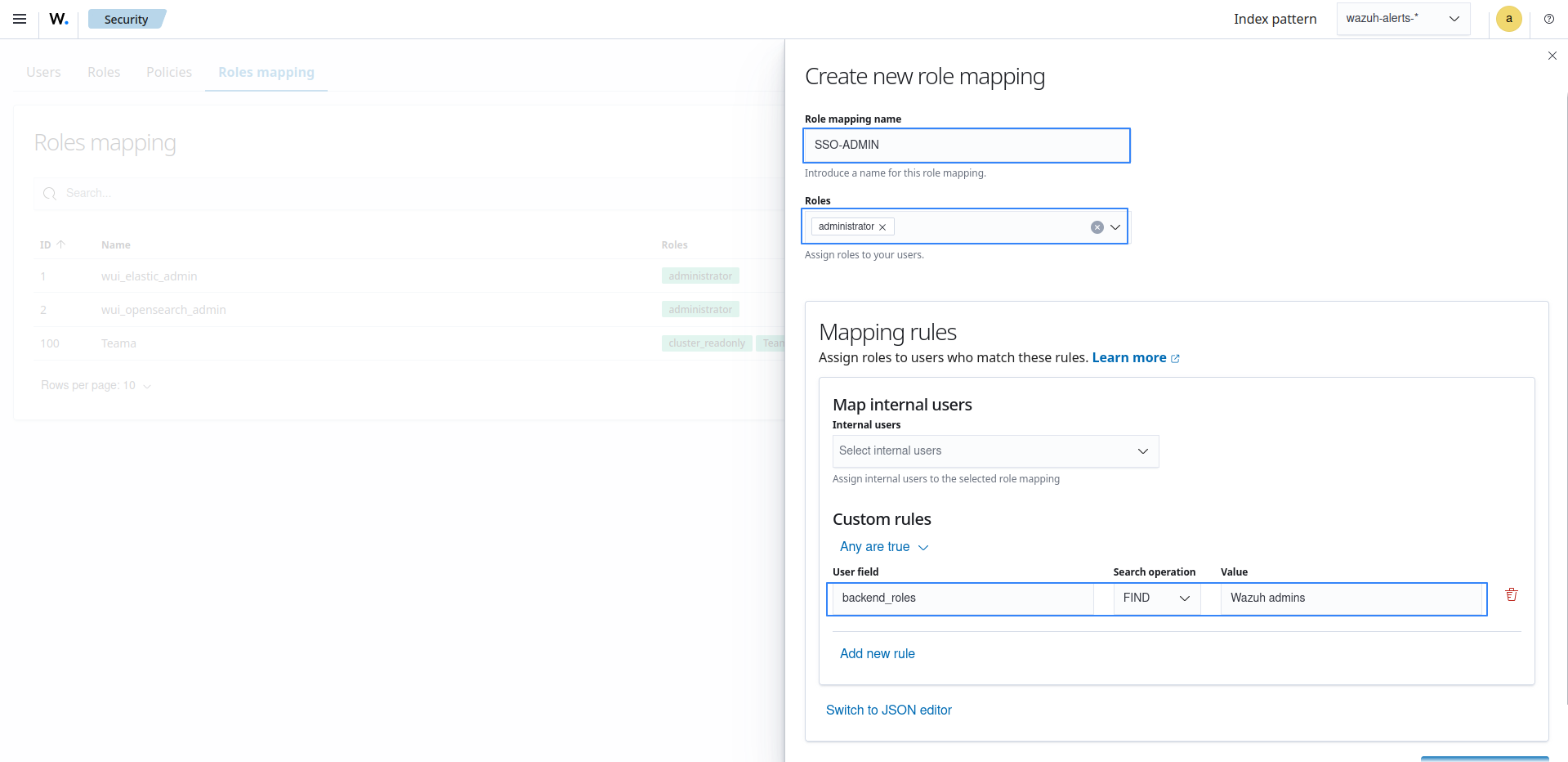

2. Click Create Role mapping and complete the empty fields with the following parameters:
  - Role mapping name: Assign a name to the role mapping.
  - Roles: Select administrator.
  - Custom rules: Click Add new rule to expand this field.
  - User field: backend_roles
  - Search operation: FIND
  - Value: Assign the name of the Jumpcloud user group. In our case, this is Wazuh admins.
3. Click Save role mapping to save and map the backend role with Wazuh as administrator.

Edit the Wazuh dashboard configuration file. Add these configurations to /etc/wazuh-dashboard/opensearch_dashboards.yml. We recommend that you back up these files before you carry out the configuration.

opensearch_security.auth.type: "saml"
server.xsrf.allowlist: ["/_opendistro/_security/saml/acs", "/_opendistro/_security/saml/logout", "/_opendistro/_security/saml/acs/idpinitiated"]
opensearch_security.session.keepalive: false

Restart the Wazuh dashboard service.

# systemctl restart wazuh-dashboard

# service wazuh-dashboard restart

Test the configuration. Go to your Wazuh dashboard URL and log in with your Jumpcloud account.
