Splunk integration

Splunk is a security platform that enables you to collect, search, analyze, visualize, and report real-time and historical data. Splunk indexes the data stream and parses it into a series of individual events that you can view and search.

Splunk users connect to Splunk through the command-line interface or through Splunk Web to administer their deployment. Splunk enables users to also manage, create knowledge objects, run searches, and create pivots and reports.

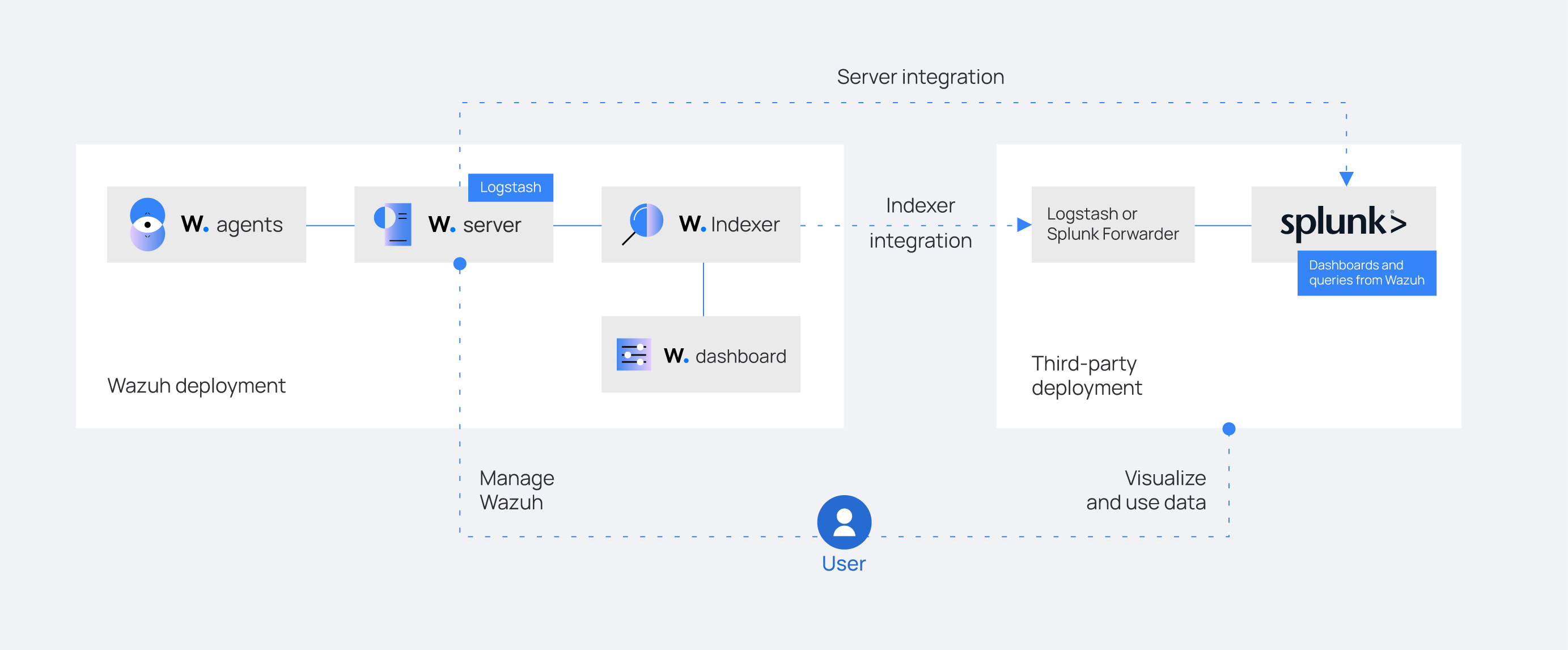

Wazuh integrates with Splunk in these ways:

Wazuh indexer integration using Logstash

Before configuring Logstash, you need to set up the Splunk indexer to receive the forwarded events. Learn more about the Wazuh indexer integration and its necessary considerations.

Configuring the Splunk indexer

To complete the integration from the Wazuh indexer to Splunk, you must first configure Splunk to:

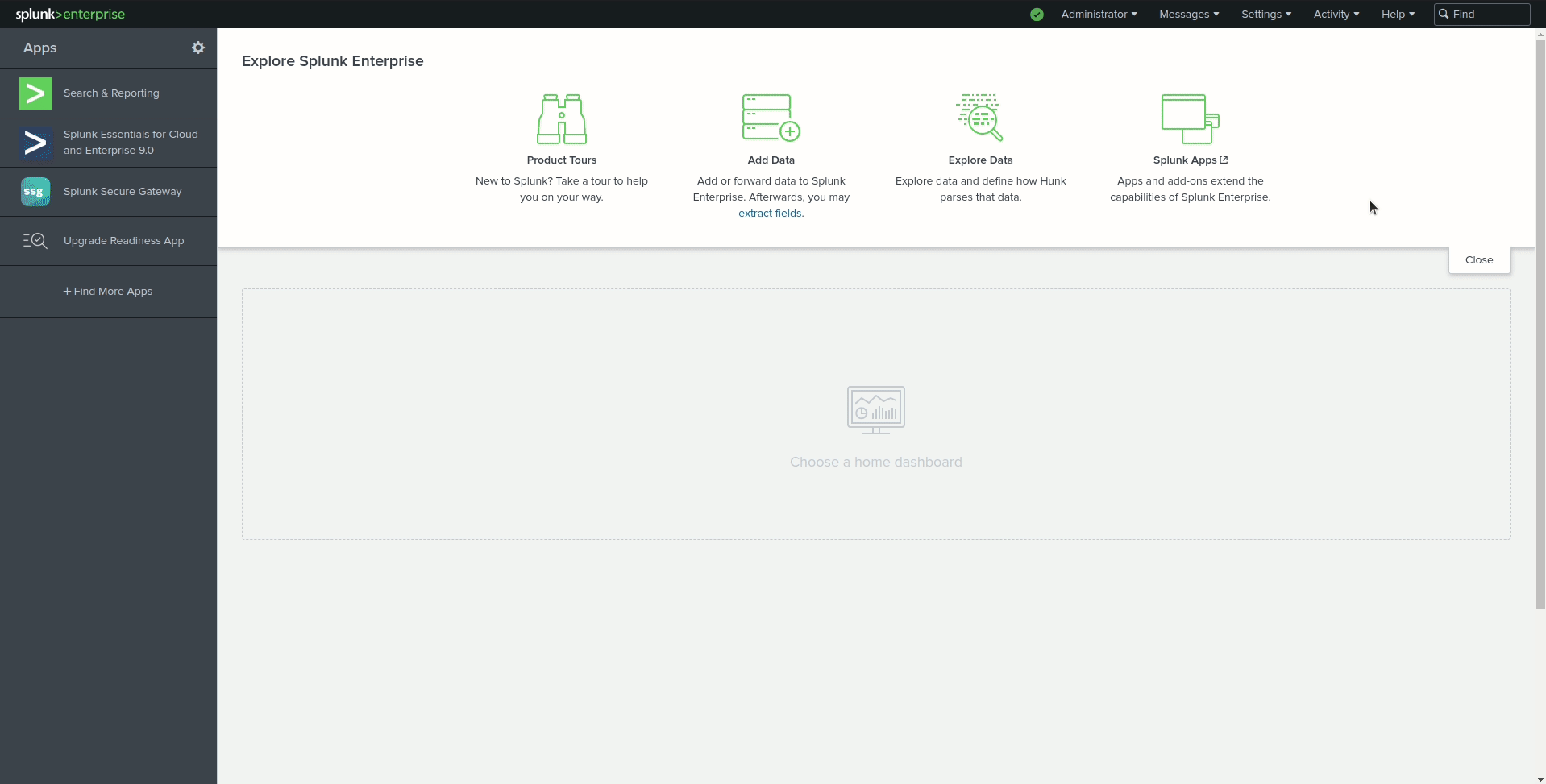

  • Enable the HTTP Event Collector.

  • Define the wazuh-alerts Splunk index to store your logs.

  • Create your Event Collector token.

Check the Splunk set up and use HTTP Event Collector documentation to set up the configuration, as seen below.

Installing Logstash

You must install Logstash on a dedicated server or on the server hosting the third-party indexer.

Perform the following steps on your Logstash server to set up your forwarder.

  1. Follow the Elastic documentation to install Logstash. Ensure that you consider the requirements and performance tuning guidelines for running Logstash.

  2. Run the following command to install the logstash-input-opensearch plugin. This plugin reads data from the Wazuh indexer into the Logstash pipeline.

    $ sudo /usr/share/logstash/bin/logstash-plugin install logstash-input-opensearch

  3. Copy the Wazuh indexer and Splunk root certificates to the Logstash server.

    Note

    You can add the certificates to any directory of your choice. For example, we added them in /etc/logstash/wazuh-indexer-certs and /etc/logstash/splunk-certs respectively.

  4. Give the logstash user the necessary permissions to read the copied certificates:

    $ sudo chmod -R 755 </PATH/TO/LOCAL/WAZUH_INDEXER/CERTIFICATE>/root-ca.pem
$ sudo chmod -R 755 </PATH/TO/LOCAL/SPLUNK/CERTIFICATE>/ca.pem

    Replace </PATH/TO/LOCAL/WAZUH_INDEXER/CERTIFICATE>/root-ca.pem and </PATH/TO/LOCAL/SPLUNK/CERTIFICATE>/ca.pem with your Wazuh indexer and Splunk certificate local paths on the Logstash endpoint respectively.

Configuring a pipeline

A Logstash pipeline allows Logstash to use plugins to read the data from the Wazuh indexes and send them to Splunk.

The Logstash pipeline requires access to the following secret values:

  • Wazuh indexer credentials

  • Splunk Event Collector token

To securely store these values, you can use the Logstash keystore.

  1. Run the following commands on your Logstash server to set a keystore password:

    $ set +o history
$ echo 'LOGSTASH_KEYSTORE_PASS="<MY_KEYSTORE_PASSWORD>"' | sudo tee /etc/sysconfig/logstash
$ export LOGSTASH_KEYSTORE_PASS=<MY_KEYSTORE_PASSWORD>
$ set -o history
$ sudo chown root /etc/sysconfig/logstash
$ sudo chmod 600 /etc/sysconfig/logstash
$ sudo systemctl start logstash

    Where <MY_KEYSTORE_PASSWORD> is your keystore password.

    Note

    You need to create the /etc/sysconfig folder if it does not exist on your server.

  2. Run the following commands to securely store these values. When prompted, input your own values as follows:

    $ sudo -E /usr/share/logstash/bin/logstash-keystore --path.settings /etc/logstash create
$ sudo -E /usr/share/logstash/bin/logstash-keystore --path.settings /etc/logstash add WAZUH_INDEXER_USERNAME
$ sudo -E /usr/share/logstash/bin/logstash-keystore --path.settings /etc/logstash add WAZUH_INDEXER_PASSWORD
$ sudo -E /usr/share/logstash/bin/logstash-keystore --path.settings /etc/logstash add SPLUNK_AUTH

    Where:

    • WAZUH_INDEXER_USERNAME and WAZUH_INDEXER_PASSWORD are keys representing your Wazuh indexer administrator username and password respectively.

    • SPLUNK_AUTH is your Splunk Event Collector token.

Perform the following steps to configure the Logstash pipeline.

  1. Create the configuration file wazuh-splunk.conf in /etc/logstash/conf.d/ directory.

    $ sudo touch /etc/logstash/conf.d/wazuh-splunk.conf

  2. Edit the file and add the following configuration. This sets the parameters required to run Logstash.

    input {
  opensearch {
   hosts =>  ["<WAZUH_INDEXER_ADDRESS>:9200"]
   user  =>  "${WAZUH_INDEXER_USERNAME}"
   password  =>  "${WAZUH_INDEXER_PASSWORD}"
   index =>  "wazuh-alerts-4.x-*"
   ssl => true
   ca_file => "</PATH/TO/LOCAL/WAZUH_INDEXER/CERTIFICATE>/root-ca.pem"
   query =>  '{
       "query": {
          "range": {
             "@timestamp": {
                "gt": "now-1m"
             }
          }
       }
   }'
   schedule => "* * * * *"
  }
}
output {
   http {
      format => "json" # format of forwarded logs
      http_method => "post" # HTTP method used to forward logs
      url => "<SPLUNK_URL>:8088/services/collector/raw" # endpoint to forward logs to
      headers => ["Authorization", "Splunk ${SPLUNK_AUTH}"]
      cacert => "</PATH/TO/LOCAL/SPLUNK/CERTIFICATE>/ca.pem"
   }
}

    Where:

    • <WAZUH_INDEXER_ADDRESS> is your Wazuh indexer address or addresses in case of cluster deployment.

    • <SPLUNK_URL> is your Splunk URL.

    • </PATH/TO/LOCAL/WAZUH_INDEXER/CERTIFICATE>/root-ca.pem is your Wazuh indexer certificate local path on the Logstash server. In our case we used /etc/logstash/wazuh-indexer-certs/root-ca.pem.

    • </PATH/TO/LOCAL/SPLUNK/CERTIFICATE>/ca.pem is your Splunk certificate local path on the Logstash server. In our case, we used /etc/logstash/splunk-certs/ca.pem.

    Note

    For testing purposes, you can avoid SSL verification by replacing the line cacert => "/PATH/TO/LOCAL/SPLUNK/ca.pem" with ssl_verification_mode => "none".

Running Logstash

  1. Once you have everything set, start Logstash from the command line with its configuration:

    $ sudo systemctl stop logstash
$ sudo -E /usr/share/logstash/bin/logstash -f /etc/logstash/conf.d/wazuh-splunk.conf --path.settings /etc/logstash/

    Make sure to use your own paths for the executable, the pipeline, and the settings files.

    Ensure that Wazuh indexer RESTful API port (9200) is open on your Wazuh indexer. To verify that the necessary ports for Wazuh component communication are open, refer to the list of required ports.

  2. After confirming that the configuration loads correctly without errors, cancel the command and run Logstash as a service. This way Logstash is not dependent on the lifecycle of the terminal it's running on. You can now enable and run Logstash as a service:

    $ sudo systemctl enable logstash
$ sudo systemctl start logstash

Check Elastic documentation for more details on setting up and running Logstash.

Note

Any data indexed before the configuration is complete would not be forwarded to the Splunk indexes.

The /var/log/logstash/logstash-plain.log file in the Logstash instance has logs that you can check in case something fails.

After Logstash is successfully running, check how to verify the integration.

Wazuh server integration using Logstash

Before configuring Logstash, you need to set up the Splunk indexer to receive the forwarded events. Learn more about the Wazuh server integration and its necessary considerations.

Configuring Splunk indexer

First, set up Splunk as follows:

  • Enable HTTP Event Collector.

  • Define the wazuh-alerts Splunk index to store your logs.

  • Create your Event Collector token.

Check the Splunk set up and use HTTP Event Collector documentation to achieve this.

Installing Logstash

Logstash must forward the data from the Wazuh server to the Splunk indexes created previously.

  1. Follow the Elastic documentation to install Logstash on the same system as the Wazuh server.

  2. Copy the Splunk root certificates to the Wazuh server.

    Note

    You can add the certificates to any directory of your choice. For example, we added them in /etc/logstash/splunk-certs.

  3. Give the logstash user the necessary permissions to read the copied certificates:

    $ sudo chmod -R 755 </PATH/TO/LOCAL/SPLUNK/CERTIFICATE>/ca.pem

    Replace </PATH/TO/LOCAL/SPLUNK/CERTIFICATE>/ca.pem with your Splunk certificate local path on the Wazuh server.

Configuring a pipeline

A Logstash pipeline allows Logstash to use plugins to read the data in the Wazuh /var/ossec/logs/alerts/alerts.json alerts file and send them to Splunk.

The Logstash pipeline requires access to your Splunk Event Collector Token.

To securely store these values, you can use the Logstash keystore.

  1. Run the following commands on your Logstash server to set a keystore password:

    $ set +o history
$ echo 'LOGSTASH_KEYSTORE_PASS="<MY_KEYSTORE_PASSWORD>"'| sudo tee /etc/sysconfig/logstash
$ export LOGSTASH_KEYSTORE_PASS=<MY_KEYSTORE_PASSWORD>
$ set -o history
$ sudo chown root /etc/sysconfig/logstash
$ sudo chmod 600 /etc/sysconfig/logstash
$ sudo systemctl start logstash

    Where <MY_KEYSTORE_PASSWORD> is your keystore password.

    Note

    You need to create the /etc/sysconfig folder if it does not exist on your server.

  2. Run the following commands to securely store these values. When prompted, input your own values. Where SPLUNK_AUTH is your Splunk Event Collector token.

    $ sudo -E /usr/share/logstash/bin/logstash-keystore --path.settings /etc/logstash create
$ sudo -E /usr/share/logstash/bin/logstash-keystore --path.settings /etc/logstash add SPLUNK_AUTH

Configuring the pipeline with the Tail mode and the JSON codec for the file input plugin allows Logstash to read the Wazuh alerts file.

To configure the Logstash pipeline do the following.

  1. Copy the Splunk root certificates to the Wazuh server. You can add the certificate to any directory of your choice. In our case, we add it in the /etc/logstash/splunk-certs directory.

  2. Create the configuration file wazuh-splunk.conf in /etc/logstash/conf.d/ directory:

    $ sudo touch /etc/logstash/conf.d/wazuh-splunk.conf

  3. Edit the wazuh-splunk.conf file and add the following configuration. This sets the parameters required to run logstash.

    input {
  file {
    id => "wazuh_alerts"
    codec => "json"
    start_position => "beginning"
    stat_interval => "1 second"
    path => "/var/ossec/logs/alerts/alerts.json"
    mode => "tail"
    ecs_compatibility => "disabled"
  }
}
output {
   http {
      format => "json" # format of forwarded logs
      http_method => "post" # HTTP method used to <SPLUNK_URL>forward logs
      url => "<SPLUNK_URL>:8088/services/collector/raw" # endpoint to forward logs to
      headers => ["Authorization", "Splunk ${SPLUNK_AUTH}"]
      cacert => "</PATH/TO/LOCAL/SPLUNK/CERTIFICATE>/ca.pem"
   }
}

    Where:

    • <SPLUNK_URL> is your Splunk URL.

    • </PATH/TO/LOCAL/SPLUNK/CERTIFICATE>/ca.pem is your Splunk certificate local path on the Logstash server. In our case we used /etc/logstash/splunk-certs/ca.pem.

    Note

    For testing purposes, you can avoid SSL verification by replacing the line cacert => "</PATH/TO/LOCAL/SPLUNK/CERTIFICATE>/ca.pem" with ssl_verification_mode => "none".

  4. By default, the /var/ossec/logs/alerts/alerts.json file is owned by the wazuh user with restrictive permissions. You must add the logstash user to the wazuh group so it can read the file when running Logstash as a service:

    $ sudo usermod -a -G wazuh logstash

Running Logstash

  1. Once you have everything set, start Logstash with its configuration:

    $ sudo systemctl stop logstash
$ sudo -E /usr/share/logstash/bin/logstash -f /etc/logstash/conf.d/wazuh-splunk.conf --path.settings /etc/logstash/

    Make sure to use your own paths for the executable, the pipeline, and the settings files.

    Ensure that Wazuh server RESTful API port (55000) is open on your Wazuh server. To verify that the necessary ports for Wazuh component communication are open, refer to the list of required ports.

  2. After confirming that the configuration loads correctly without errors, cancel the command and run Logstash as a service. This way Logstash is not dependent on the lifecycle of the terminal it's running on. You can now enable and run Logstash as a service:

    $ sudo systemctl enable logstash
$ sudo systemctl start logstash

Check Elastic documentation for more details on setting up and running Logstash.

Note

Any data indexed before the configuration is complete would not be forwarded to the Splunk indexes.

The /var/log/logstash/logstash-plain.log file in the Logstash instance has logs that you can check in case something fails.

After Logstash is successfully running, check how to verify the integration.

Wazuh server integration using the Splunk forwarder

Before configuring the Splunk forwarder, you need to configure the Splunk indexer to receive the forwarded events. For this, you need to perform the following tasks on your Splunk server instance:

  • Set a receiving port.

  • Create the wazuh-alerts Splunk indexes.

Configuring Splunk indexer

Configuring the receiving port

Perform the following actions in Splunk Web:

  1. Go to Settings > Forwarding and receiving.

  2. Under Receive data, click Add new.

  3. Enter 9997 in the Listen on this port input box and click Save.

Alternatively, you can configure the receiving port in the following way.

Edit /opt/splunk/etc/system/local/inputs.conf on the Splunk server to add the following configuration:

[splunktcp://9997]
connection_host = none

For more details, visit enable a receiver section in the Splunk documentation.

Configuring indexes

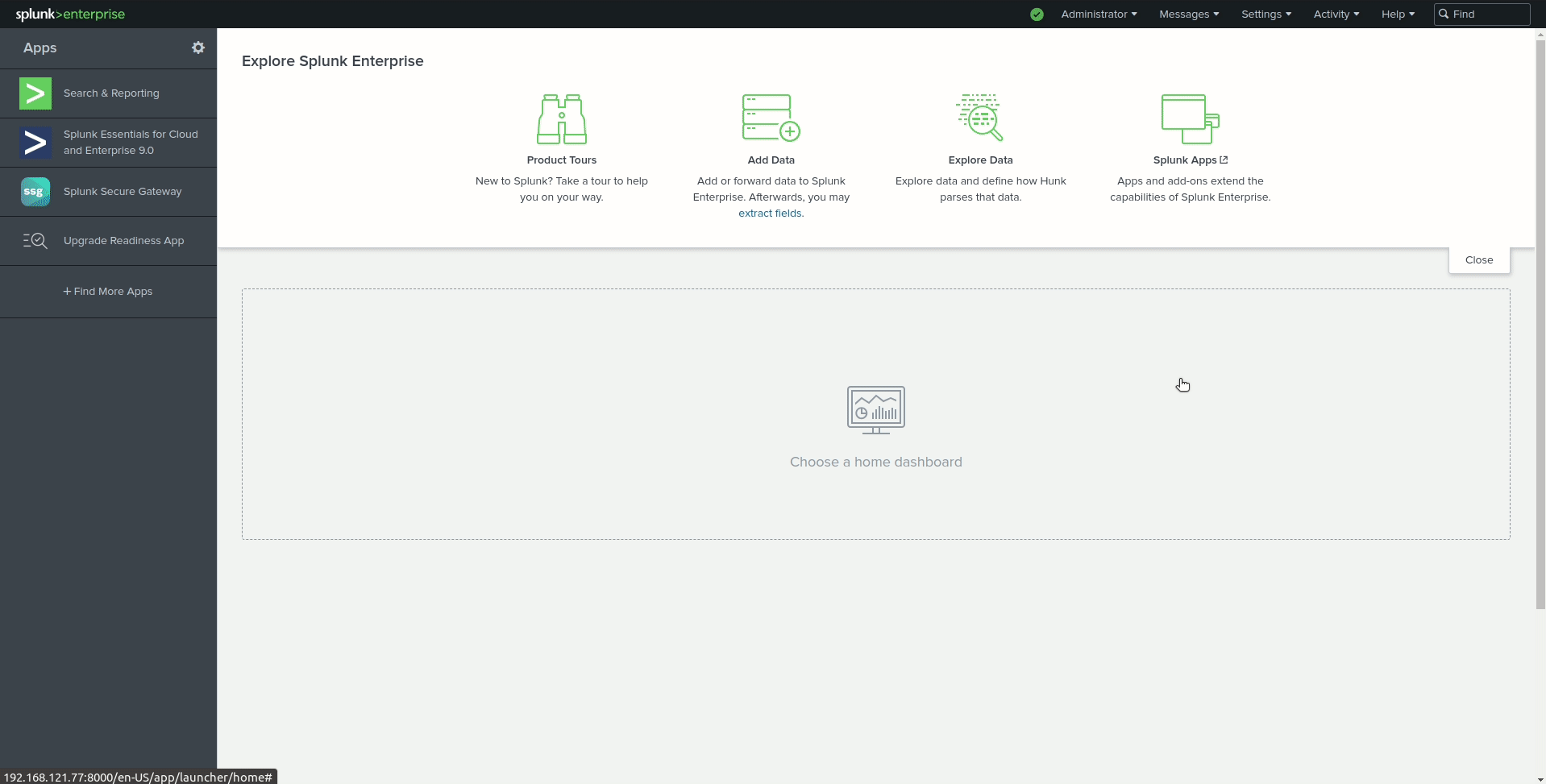

Perform the following actions to configure the wazuh-alerts indexes in Splunk Web.

  1. Go to Settings > Indexes > New Index.

  2. Enter wazuh-alerts in Index name and click Save.

Alternatively, you can add the following configuration to the /opt/splunk/etc/system/local/indexes.conf file on the Splunk server to create the indexes:

[wazuh-alerts]
coldPath = $SPLUNK_DB/wazuh/colddb
enableDataIntegrityControl = 1
enableTsidxReduction = 1
homePath = $SPLUNK_DB/wazuh/db
maxTotalDataSizeMB = 512000
thawedPath = $SPLUNK_DB/wazuh/thaweddb
timePeriodInSecBeforeTsidxReduction = 15552000
tsidxReductionCheckPeriodInSec =

Installing Splunk forwarder on the Wazuh server

The Splunk forwarder must stream the data from the Wazuh server to the Splunk indexes created previously.

Follow the Splunk documentation to install the Splunk universal forwarder on the Wazuh Server.

Note

In Cloud instances, you need to configure the credentials for the Splunk forwarder. Check the configure the Splunk Cloud Platform universal forwarder credentials package documentation to learn how to do this.

Configuring the Splunk forwarder

  1. Set the following configuration in /opt/splunkforwarder/etc/system/local/inputs.conf file. This configures the Splunk forwarder to monitor the Wazuh /var/ossec/logs/alerts/alerts.json alerts file. Where <WAZUH_SERVER_HOST> is a name of your choice.

    [monitor:///var/ossec/logs/alerts/alerts.json]
disabled = 0
host = <WAZUH_SERVER_HOST>
index = wazuh-alerts
sourcetype = wazuh-alerts

  2. Set the following configuration in the /opt/splunkforwarder/etc/system/local/props.conf file to parse the data forwarded to Splunk:

    [wazuh-alerts]
DATETIME_CONFIG =
INDEXED_EXTRACTIONS = json
KV_MODE = none
NO_BINARY_CHECK = true
category = Application
disabled = false
pulldown_type = true

  3. Set the following configuration in the /opt/splunkforwarder/etc/system/local/outputs.conf file to define how the alerts are forwarded to Splunk. Where <SPLUNK_INDEXER_ADDRESS> is your Splunk server IP address. For Cloud instances, the Splunk indexer address is the cloud instance address.

    defaultGroup = default-autolb-group

[tcpout:default-autolb-group]
server = <SPLUNK_INDEXER_ADDRESS>:9997

[tcpout-server://<SPLUNK_INDEXER_ADDRESS>:9997]

Running the forwarder

  1. Start the Splunk Forwarder following Splunk documentation.

  2. Run the following command to verify the connection is established:

    $ sudo /opt/splunkforwarder/bin/splunk list forward-server

    Active forwards:
     <SPLUNK_INDEXER_ADDRESS>:9997
Configured but inactive forwards:
     None

Note

The /opt/splunkforwarder/var/log/splunk/splunkd.log file in the forwarder instance has logs that you can check in case something fails.

Verifying the integration

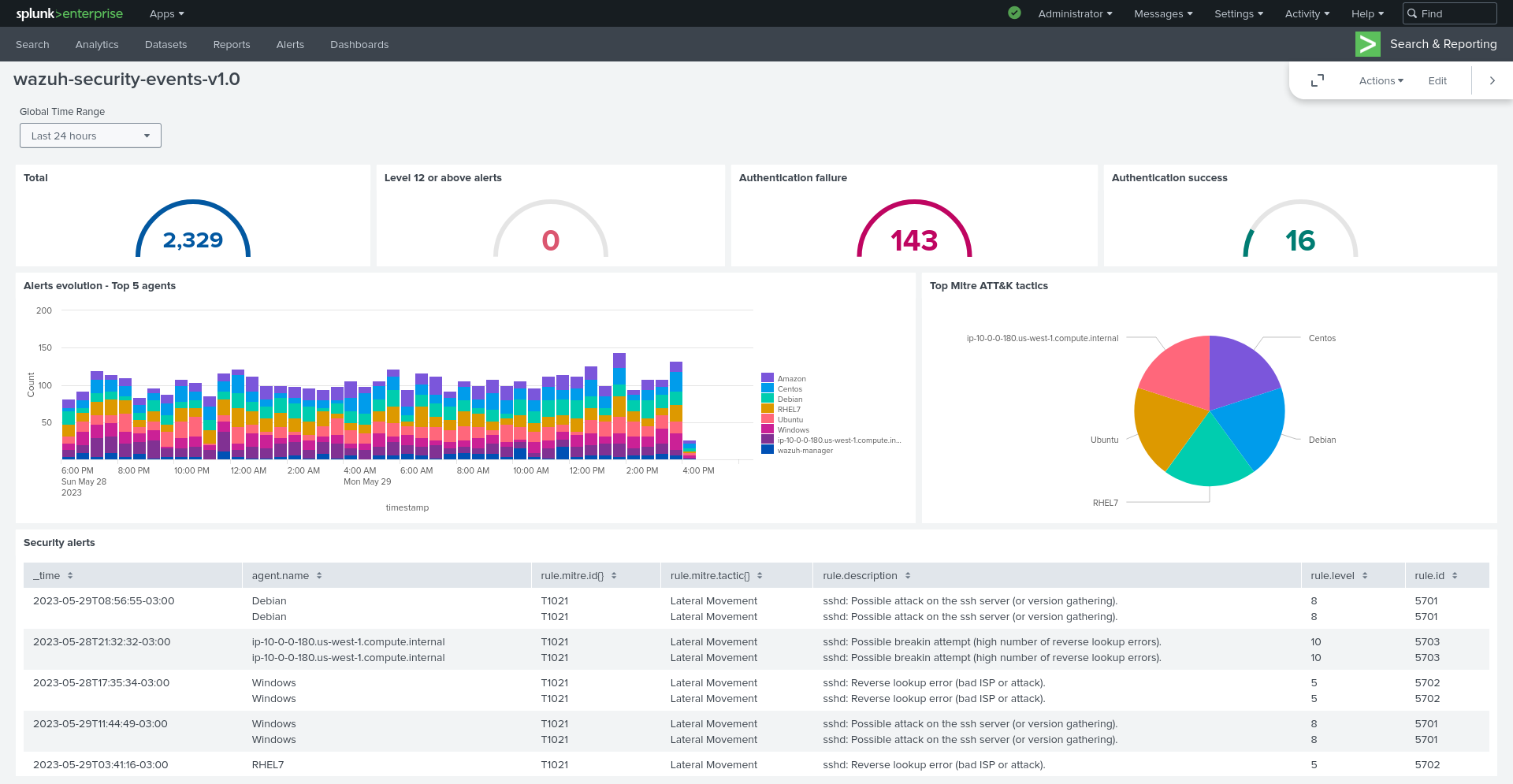

To check the integration with Splunk, access Splunk Web and search for the wazuh-alerts Splunk index as follows.

  1. Go to Search & Reporting.

  2. Enter index="wazuh-alerts" and run the search.

Splunk dashboards

Wazuh provides several dashboards for Splunk.

After you complete the Splunk integration, you can use these dashboards to display your Wazuh alerts in Splunk.

To import the Wazuh dashboards for Splunk, repeat the following steps for each dashboard file you want to use.

  1. Download the dashboard file that you need from the list of Splunk dashboards provided above.

  2. Navigate to Search & Reporting in Splunk Web.

  3. Click Dashboards and click Create New Dashboard.

  4. Enter a dashboard title and select Dashboard Studio.

    Note

    The dashboard title you enter here will be overwritten with the original title set in the dashboard template.

  5. Select Grid and click on Create.

  6. Click on the </> Source icon.

  7. Paste your dashboard file content, replacing everything in the source.

  8. Click Back and click Save.
