Agent key request

New in version 4.4.0.

Note

The key request feature replaces the old agent-key-polling wodle.

The key request feature allows fetching the agent keys stored on an external database.

How it works

The key request feature allows fetching agent keys from an external source, for example, a database. This provides a mechanism to auto-register agents when they are not registered on a manager instance but reporting to it.

Once the <key_request> tag is enabled in the Authd configuration, it allows retrieving the agent information from an external database, like MySQL or any database engine, for registering it to the client.keys file.

To do this, it is necessary to create a binary or script in any language that can be integrated into your database engine and thus request the agents' information. The key_request tag must be added to the Authd configuration block.

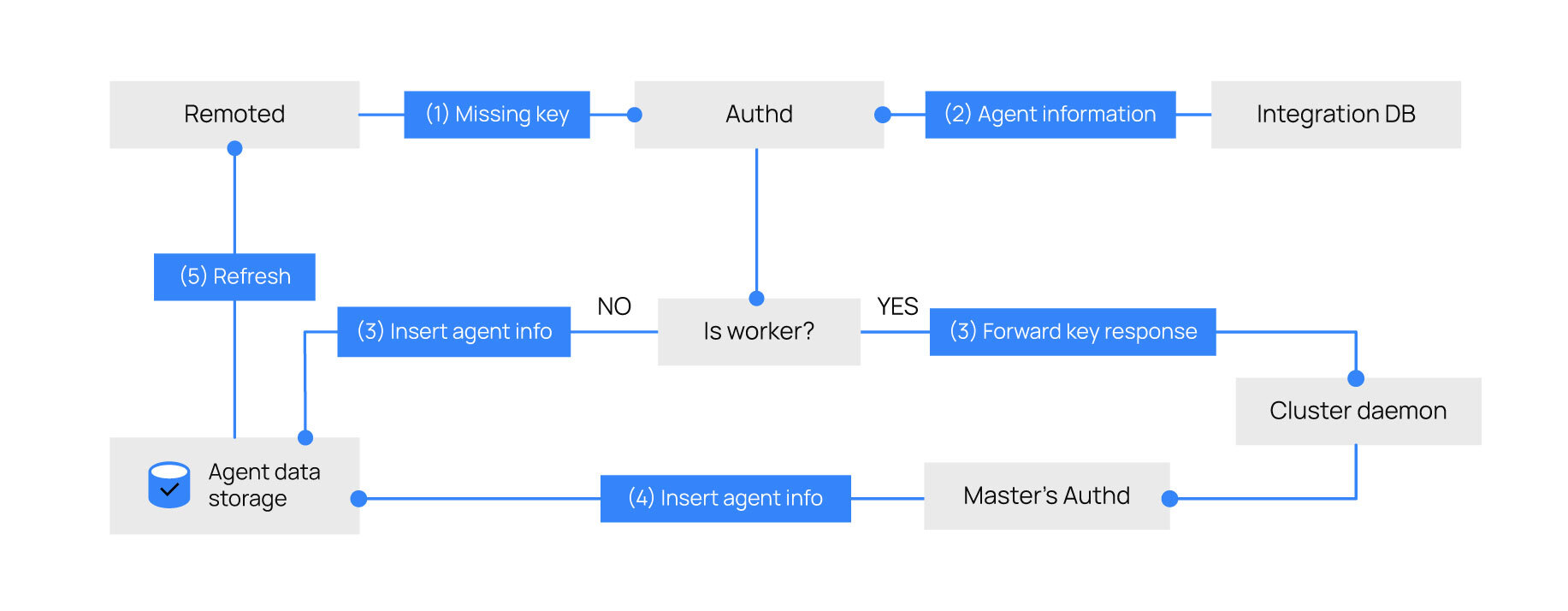

Below you can see the flow diagram:

Agent key request flow diagram

Input

If the socket tag is not specified in the configuration block, the key request feature calls the executable with the following parameters, depending on the fetching type:

  • Fetch agent information by ID

  • Fetch agent information by IP

When polling by ID, the manager retrieves the agent key by querying its ID. The input parameters that the program receives are as the following:

./agent_key_request.py id 001

When fetching by IP address, the manager retrieves the agent key by querying his IP address. The input parameters that the program receives are as the following:

./agent_key_request.py ip 192.168.1.100

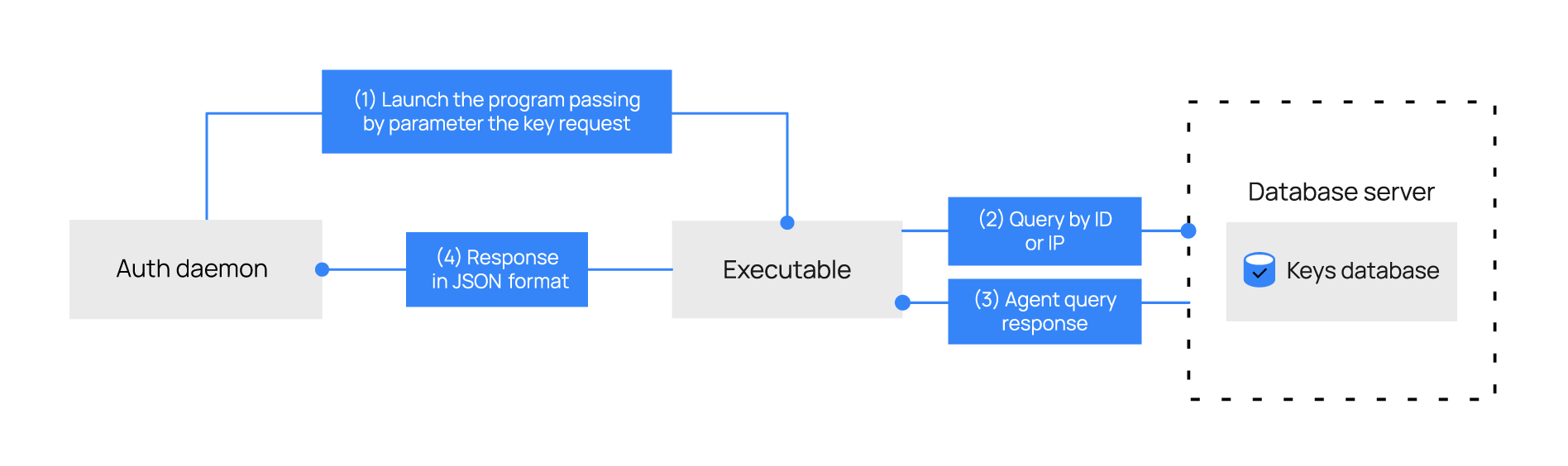

Executable method: one program call per request

Note

Keep in mind that the above examples represent how Wazuh will call your program.

When the socket tag is specified the module will send the parameters through the specified socket and read the response. The performance improvement over executing the program, as it is explained above, is significant.

The format in which the program receives the data is option:value, where option can be id or ip depending on the fetching type.

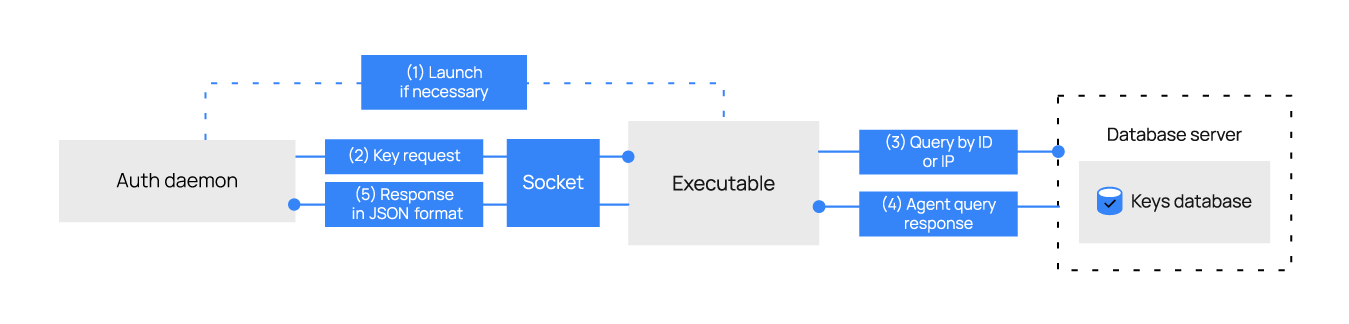

Method with socket: requests directly to the socket

An empty input must be allowed. The key request feature performs a socket health check on startup. If the connection is established successfully, it's immediately closed.

Note

If the socket option is specified, and the socket is not available, the program that has to be turned on will be called in case it has been specified.

Output

The output of your script must be a JSON object in the standard output.

On success example:

{
    "error": 0,
    "data": {
        "id": "001",
        "name": "my_agent",
        "ip": "192.168.1.100",
        "key": "ac575526e8bbcddf6654e5aa0a39fa60a0020e5d34ed1370916368bdaf5f0c71"
    }
}

error

Error identificator number.

Allowed characters

Digits only

Allowed size

1 digit

Unique value

Yes, must be 0

data

Data in json format with the following fields.

Allowed fields

id, name, ip, key

id

Agent identificator number.

Allowed characters

Digits only

Allowed size

3 to 8 digits

Unique value

Yes

name

Agent name.

Allowed characters

Alphanumeric characters, -, _ and .

Allowed size

Up to 128 bytes

Unique value

Yes

address

Allowed source address range in CIDR format. If specified, the manager will only accept the agent if its source IP address matches this address.

Format

CIDR. Netmask is optional.

Unique value

Yes

Reserved values

None

Aliases

any = 0.0.0.0/0

key

String that will take part in the external message encryption.

Allowed characters

Printable characters

Allowed size

Up to 128 bytes

Unique value

No

On error example:

{
    "error": 1,
    "message": "Your error message"
}

error

Error identificator number.

Allowed characters

Digits only

Unique value

Yes

message

String that will show the message error.

Allowed characters

Printable characters

Unique value

No

Example scripts

Suppose you have a table named agent in your database with the following structure:

Field

Type

id

Varchar(8)

name

Varchar(128)

ip

Varchar(19)

agent_key

Varchar(128)

Note

If your executable is a script that does not include shebang, you must include its interpreter in the exec_path parameter of the configuration.

The python script below shows an example of an agent key retrieval from the database (MySQL).

import sys
import json
import mysql.connector
from mysql.connector import Error

def main():

    if len(sys.argv) < 3:
        print json.dumps({"error": 1, "message": "Too few arguments"})
        return

    try:
        conn = mysql.connector.connect(host='localhost',
                                    database='your_database',
                                    user='user',
                                    password='secret')
    except Error as e:
        print json.dumps({"error": 2, "message": str(e)})
        return

    cursor = conn.cursor()
    data = sys.argv[2]

    if sys.argv[1] == "id":
        cursor.execute("SELECT id,name,ip,`agent_key` FROM agent WHERE id = '{}'".format(data))
    elif sys.argv[1] == "ip":
        cursor.execute("SELECT id,name,ip,`agent_key` FROM agent WHERE ip = '{}'".format(data))
    else:
        print json.dumps({"error": 3, "message": "Bad arguments given"})
        return

    row = cursor.fetchone()

    if row:
        print json.dumps({"error": 0, "data": {"id" : row[0], "name": row[1], "ip": row[2], "key": row[3]}},sort_keys=False)
    else:
        print json.dumps({"error": 4, "message": "No agent key found"},sort_keys=False)


if __name__ == '__main__':
    main()

The php script below shows an example of an agent key retrieval from the database (MySQL).

<?php
    $servername = "localhost";
    $username = "user";
    $password = "secret";
    $dbname = "your_database";

    if($argc < 3){
        echo json_encode(array('error' => 1, 'message' => 'To few arguments'));
        exit;
    }

    $conn = new mysqli($servername, $username, $password, $dbname);
    if ($conn->connect_error) {
        echo json_encode(array('error' => 2, 'message' => 'Could not connect to database'));
        exit;
    }

    $data = $argv[2];

    if($argv[1] == "id"){
        $sql = "SELECT id,name,ip,`agent_key` FROM agent WHERE id = '$data'";
    } else if ($argv[1] == "ip") {
        $sql = "SELECT id,name,ip,`agent_key` FROM agent WHERE ip = '$data'";
    } else {
        echo json_encode(array('error' => 3, 'message' => 'Bad arguments given'));
        exit;
    }

    $result = $conn->query($sql);

    if ($result->num_rows > 0) {
        $row = $result->fetch_assoc();
        echo json_encode(array('error' => 0, 'data' => array( "id" => $row["id"], "ip" => $row["ip"],"key" => $row["agent_key"],"name" => $row["name"])));
    } else {
        echo json_encode(array('error' => 4, 'message' => 'No agent key found'));
    }
    $conn->close();
?>

The perl script below shows an example of an agent key retrieval from the database (MySQL).

use strict;
use warnings;
use DBI;

my $num_args = $#ARGV + 1;

if ($num_args < 2) {
    print "{\"error\": 1, \"message\": \"Too few arguments\"}\n";
    exit;
}

my $data = $ARGV[1];
my $dbh = DBI->connect("DBI:mysql:database=your_database;host=localhost",
                    "user", "secret",
                    {'RaiseError' => 1});

my $sql = "";

if ($ARGV[0] eq "id") {
    $sql = "SELECT * FROM agent WHERE id = '$data'";
} elsif ($ARGV[0] eq "ip") {
    $sql = "SELECT * FROM agent WHERE ip = '$data'";
}

my $sth = $dbh->prepare($sql);
$sth->execute();
my $rows = $sth->rows;

if ($rows) {
    my $row = $sth->fetchrow_hashref();
    print "{\"error\": 0, \"data\": {\"id\" : \"$row->{'id'}\", \"name\": \"$row->{'name'}\", \"ip\": \"$row->{'ip'}\", \"key\": \"$row->{'agent_key'}\"}}\n";
} else{
    print "{\"error\": 4, \"message\": \"No agent key found\"}\n";
}

$sth->finish();
$dbh->disconnect();

Note

Remember using parameter binding to protect your script or binary against SQL injections.
