Disk space utilization

This use case involves monitoring the partitions on Windows, Linux, and macOS endpoints to determine whether a defined amount of free space is not exceeded. We use a centralized configuration to perform this on all the endpoints.

Disk space utilization on Windows endpoint

We use the PowerShell command, Get-Volume, to get the free space and size of the available volumes on the filesystem. Then create a rule to trigger an alert when the free space of the C: drive is less than 20%.

Configuration

Windows endpoint

Perform the following steps on the Windows endpoint.

  1. Enable remote command execution on the Windows endpoint by appending the following settings to the C:\Program Files (x86)\ossec-agent\local_internal_options.conf file:

    Warning

    Enable remote command execution with caution as this gives the Wazuh user permission to run any command on the endpoint.

    logcollector.remote_commands=1

  2. Restart the Wazuh agent to apply the changes, using PowerShell with administrator privileges:

    > Restart-Service -Name wazuh


Wazuh server

Perform the following steps on the Wazuh server.

  1. Append the following configuration to the /var/ossec/etc/shared/default/agent.conf file on the Wazuh server:

    <agent_config os="Windows">
      <localfile>
        <log_format>command</log_format>
        <command>Powershell -c "Get-Volume -DriveLetter C | Select-Object -Property @{'Name' = '% Free'; Expression = {'{0:P}' -f ($_.SizeRemaining / $_.Size)}}"</command>
        <alias>check_win_disk_space</alias>
      </localfile>
    </agent_config>


    Where:

    • The value command of the <log_format> tag specifies the output of the command is read as multiple events.

    • The value Powershell -c "Get-Volume -DriveLetter C | Select-Object -Property @{'Name' = '% Free'; Expression = {'{0:P}' -f ($_.SizeRemaining / $_.Size)}}" of the <command> tag is the command the Logcollector module executes to get the percentage of free space available in the C: drive.

    • The value check_win_disk_space of the <alias> tag is a string that represents the Powershell -c "Get-Volume -DriveLetter C | Select-Object -Property @{'Name' = '% Free'; Expression = {'{0:P}' -f ($_.SizeRemaining / $_.Size)}}" command for better identification in creating rules.

    • Notice the absence of the <frequency> tag. This implies the command is scheduled to run periodically using the default frequency value of 360 seconds.

  2. Add the following rules to the /var/ossec/etc/rules/local_rules.xml file on the Wazuh server:

    <group name="disk_space_utilization,">
      <rule id="100014" level="7">
        <if_sid>530</if_sid>
        <match>^ossec: output: 'check_win_disk_space': </match>
        <regex type="pcre2">[0-1]\d.\d+%$</regex>
        <description>C: Drive free space less than 20%.</description>
      </rule>
    </group>

  3. Restart the Wazuh manager to apply the changes:

    $ sudo systemctl restart wazuh-manager


Visualize the alerts

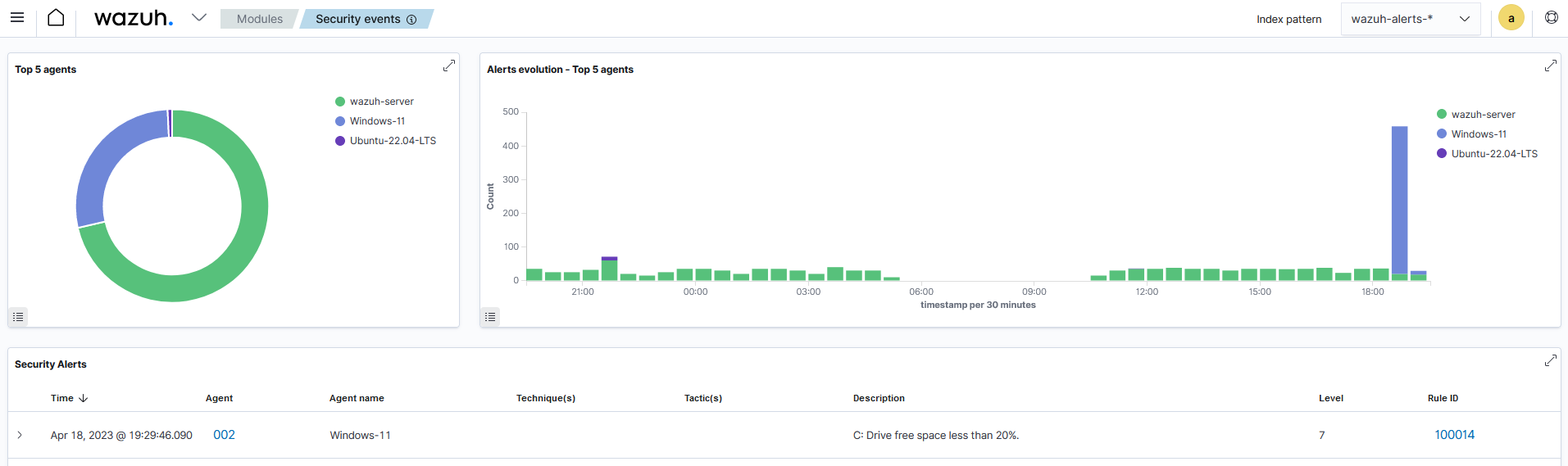

Go to Modules > Security events tab on the Wazuh dashboard to visualize the generated alert when the free disk space is less than 20%.

Drive free space less than 20% alert

Disk space utilization on Linux endpoint

For this endpoint, we monitor the disk space using the df -h command and create a rule to trigger an alert when the disk usage of the /dev partition is above 80%. We use the Command module to define the configuration in this scenario. You can also use the Logcollector module.

Configuration

Linux endpoint

Perform the following steps on the Linux endpoint.

  1. Enable remote command execution on the Linux endpoint by appending the following settings to the /var/ossec/etc/local_internal_options.conf file:

    Warning

    Enable remote command execution with caution as this gives the Wazuh user permission to run any command on the endpoint.

    wazuh_command.remote_commands=1

  2. Restart the Wazuh agent to apply the changes:

    $ sudo systemctl restart wazuh-agent


Wazuh server

Knowing the Command module does have a default decoder for its log format, we need to figure out a way to format the command output so that a custom decoder can parse it. So, we leverage the below script to format the command output.

  1. Create a bash script named disk-usage.sh in the /var/ossec/etc/shared/default/ directory of the Wazuh server and add the following content. Wazuh pushes the script to the /var/ossec/etc/shared/ directory on the Linux endpoint where it is executed. The script adds a disk-usage header to the output of the df -h command:

    #!/bin/bash
    df -h | while IFS= read -r line;
    do
      echo "disk-usage: "$line
    done

  2. Append the following configuration to the /var/ossec/etc/shared/default/agent.conf file on the Wazuh server. Replace <MD5_HASH>, <SHA1_HASH>, and <SHA256_HASH> with the appropriate hashes of the /bin/bash shell binary on the Linux endpoint:

    <agent_config os="Linux">
      <wodle name="command">
        <disabled>no</disabled>
        <tag>disk-usage</tag>
        <command>/bin/bash /var/ossec/etc/shared/disk-usage.sh</command>
        <interval>2m</interval>
        <run_on_start>yes</run_on_start>
        <timeout>10</timeout>
        <verify_md5><MD5_HASH></verify_md5>
        <verify_sha1><SHA1_HASH></verify_sha1>
        <verify_sha256><SHA256_HASH></verify_sha256>
      </wodle>
    </agent_config>


    Where:

    • The value /bin/bash /var/ossec/etc/shared/disk-usage.sh of the <command> tag specifies the Command module uses the /bin/bash binary to execute the /var/ossec/etc/shared/disk-usage.sh script.

    • The value 2m of the <interval> tag indicates that the command module runs the command every 2 minutes.

  3. Add the following decoder to the /var/ossec/etc/decoders/local_decoder.xml file on the Wazuh server:

    <decoder name="disk-usage">
      <prematch>^disk-usage: </prematch>
      <regex offset="after_prematch">(\S+)\s*(\S+)\s*(\S+)\s*(\S+)\s*(\S+)%\s*(\S+)</regex>
      <order>filesystem, size, used, available, usage, mnt</order>
    </decoder>

  4. Add the following rules to the /var/ossec/etc/rules/local_rules.xml file on the Wazuh server. The rule generates an alert when the disk usage of the /dev partition exceeds 80%:

    <group name="disk_space_utilization,">
      <rule id="100015" level="7">
        <decoded_as>disk-usage</decoded_as>
        <field name="filesystem">^/dev/</field>
        <field name="usage">^9\d|^8\d</field>
        <description>Usage $(usage)% of $(filesystem) partition exceeded 80%.</description>
      </rule>
    </group>

  5. Restart the Wazuh manager to apply the changes:

    $ sudo systemctl restart wazuh-manager


Visualize the alerts

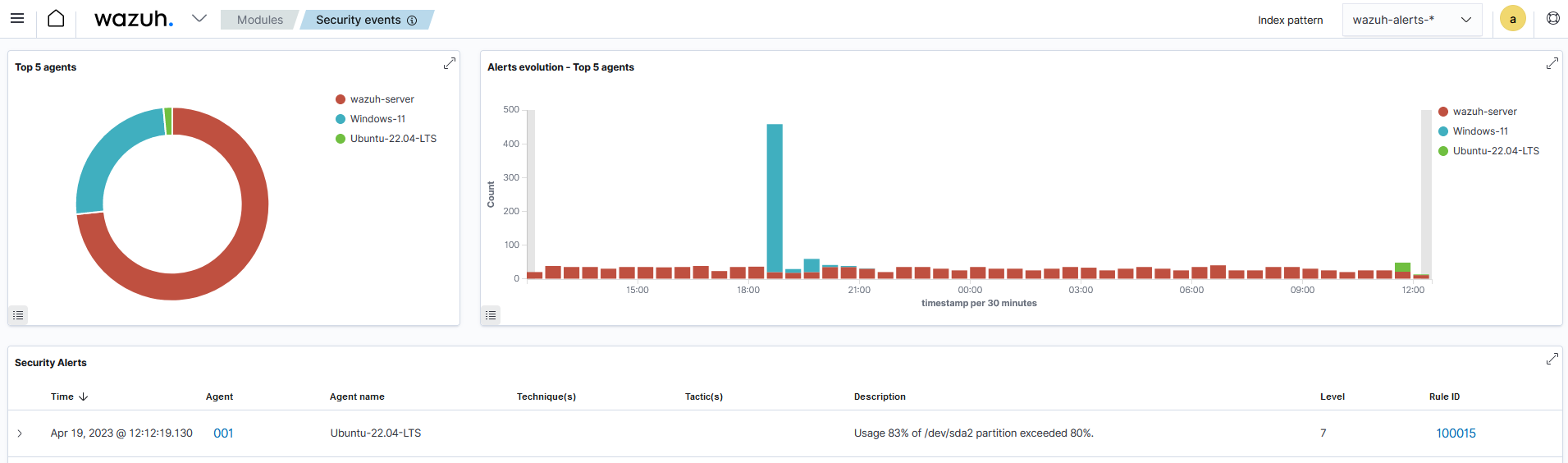

Go to Modules > Security events tab on the Wazuh dashboard to visualize the generated alerts when the disk usage of the /dev partition exceeds 80%.

Partition exceeds 80% usage alert

Disk space utilization on macOS endpoint

For this endpoint, we monitor the disk space using the df -P command. Wazuh triggers a rule to generate an alert when the disk usage of the /dev partition is 100%. We use the Logcollector module to demonstrate this use case. You can also use the Command module.

Configuration

macOS endpoint

Perform the following steps on the macOS endpoint.

  1. Enable remote command execution on the macOS endpoint by appending the following settings to the /Library/Ossec/etc/local_internal_options.conf file:

    Warning

    Enable remote command execution with caution as this gives the Wazuh user permission to run any command on the endpoint.

    logcollector.remote_commands=1

  2. Restart the Wazuh agent to apply the changes:

    # /Library/Ossec/bin/wazuh-control restart


Wazuh server

Wazuh has an out-of-the-box rule with ID 531 that generates an alert when the disk usage of the /dev partition is 100%. The rule is defined below and is found in the Wazuh GitHub repository.

<rule id="531" level="7" ignore="7200">
  <if_sid>530</if_sid>
  <match>ossec: output: 'df -P': /dev/</match>
  <regex>100%</regex>
  <description>Partition usage reached 100% (disk space monitor).</description>
  <group>low_diskspace,pci_dss_10.6.1,gpg13_10.1,gdpr_IV_35.7.d,hipaa_164.312.b,nist_800_53_AU.6,tsc_CC7.2,tsc_CC7.3,</group>
</rule>

Perform the following steps on the Wazuh server.

  1. Append the following configuration to the /var/ossec/etc/shared/default/agent.conf file on the Wazuh server:

    <agent_config os="macOS">
      <localfile>
        <log_format>command</log_format>
        <command>df -P</command>
        <frequency>180</frequency>
      </localfile>
    </agent_config>


    Where:

    • The value command of the <log_format> tag specifies the output of the command is read as multiple events.

    • The value df -P of the <command> tag specifies the command the Logcollector module executes.

    • The value 180 of the <frequency> tag specifies the command runs every 180 seconds (3 minutes).

Test the configuration

Run the following command on the macOS endpoint to fill the disk space with random data of 10GB. This action can take approximately 45 seconds:

# df -h .; date; dd if=/dev/zero of=big_file count=10240000 bs=1024 ; date; df -h .

Note

  • Depending on the size of your disk, you can increase the value of count to fill up more disk space.

  • After viewing the generated alert on the Wazuh dashboard, you can remove the file big_file to regain your disk space.

Visualize the alerts

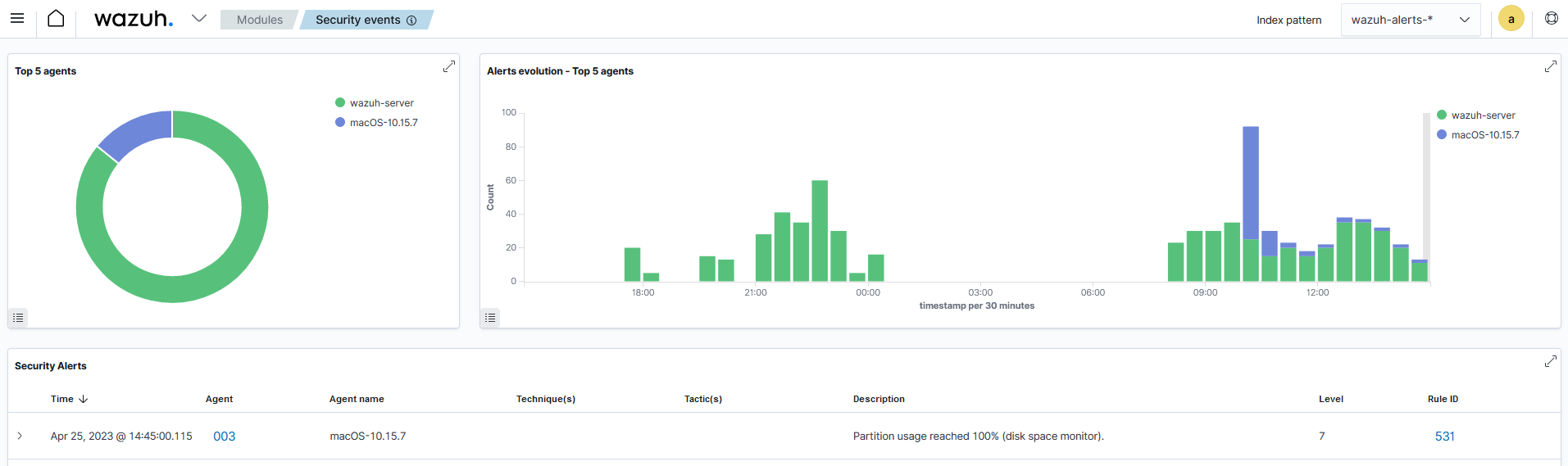

Go to Modules > Security events tab on the Wazuh dashboard to visualize the generated alert when the disk usage of the /dev partition is 100%.

Partition exceeds 80% usage alert
