Monitoring AWS infrastructure

This use case shows how the Wazuh module for AWS (aws-s3) enables log data collection from different AWS sources. To learn more about monitoring AWS resources, see the Using Wazuh to monitor AWS section of the documentation.

Infrastructure

Cloud service	Description
AWS CloudTrail	AWS CloudTrail, like all other supported AWS services, requires setting the necessary policies for user permissions and providing a valid authentication method. In this use case, you use the profile authentication method.

Configuration

Take the following steps to configure Wazuh to monitor AWS CloudTrail and identify security incidents.

CloudTrail

Access the CloudTrail service using the AWS console.
Create a new trail.
Choose whether to create a new S3 bucket or specify an existing one to store CloudTrail logs. Note down the name of the S3 bucket used, as it is necessary to specify it in the Wazuh configuration.

The image below shows how to create a new trail and attach a new S3 bucket.

Animated walkthrough of creating a new AWS CloudTrail trail and attaching a new S3 bucket in the AWS console

Wazuh dashboard

Navigate to Ruleset management > Overview.
Enter aws in the search box and select the aws integration.
Click the aws integration name to open it, then click Actions and select Enable.

Wazuh agent

Install the Python dependencies of the Wazuh module for AWS on the Ubuntu endpoint. The command below is for Python 3.12, the default on Ubuntu 24.04. For other Python versions, see Install dependencies:
```
$ sudo pip3 install --break-system-packages boto3==1.34.135 pyarrow==14.0.1 numpy==1.26.0
```

Enable the Wazuh AWS module in the /var/ossec/etc/ossec.conf configuration file on the Ubuntu endpoint. Add only the AWS buckets of interest. Read our guide on how to configure AWS credentials:

<wodle name="aws-s3">
  <disabled>no</disabled>
  <interval>30m</interval>
  <run_on_start>yes</run_on_start>
  <skip_on_error>no</skip_on_error>

  <bucket type="cloudtrail">
    <name><AWS_BUCKET_NAME></name>
    <aws_profile><AWS_PROFILE_NAME></aws_profile>
  </bucket>
</wodle>

Restart the Wazuh agent to apply the changes:
```
$ sudo systemctl restart wazuh-agent
```

Test the configuration

Once you configure CloudTrail, you can generate events by creating a new IAM user account using the IAM service. This generates an event that Wazuh processes. The Wazuh default ruleset parses AWS logs and generates findings automatically. The findings appear as soon as Wazuh receives the logs from the AWS S3 bucket. You can also find additional CloudTrail use cases in our documentation.

Visualize the findings

You can visualize the findings on the Wazuh dashboard. Go to Cloud security > Amazon Web Services and select Findings.

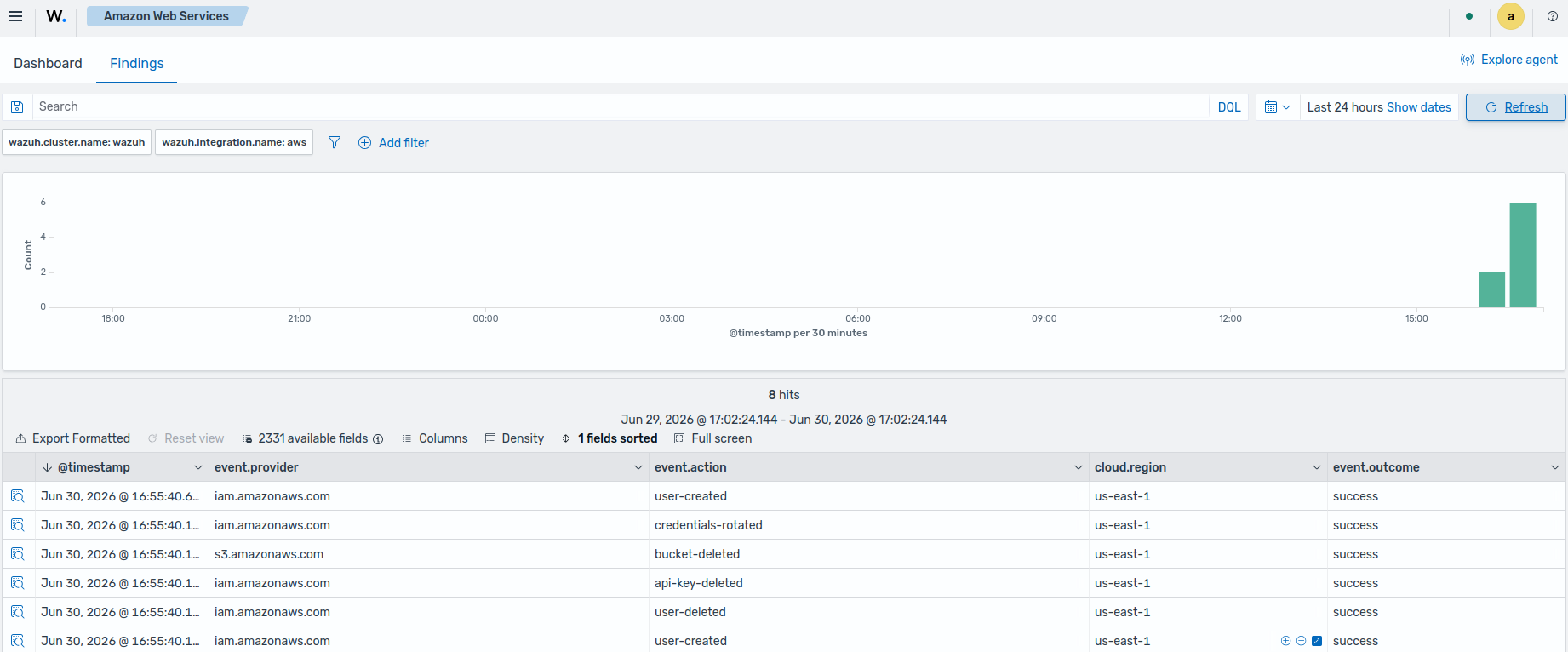

Wazuh dashboard Amazon Web Services Findings tab listing AWS CloudTrail IAM user creation findings
