HIPAA § 164.308(a)(5)(ii)(B) - Protection from malicious software

The HIPAA § 164.308(a)(5)(ii)(B) requirement states, "Procedures for guarding against, detecting, and reporting malicious software."

This requirement mandates covered entities and business associates to implement policies and procedures for guarding against, detecting, and reporting malicious software.

Wazuh supports this requirement by providing several capabilities that support malware detection. They include the following:

Malware detection dashboard
Threat detection ruleset
Rootkit detection

The Wazuh malware detection capability meets this requirement using out-of-the-box rules, threat intelligence enrichments, and KVDBs.

Use case: Rootkit detection

In this example, the Wazuh Rootcheck component detects abnormal behavior on monitored endpoints, including potential rootkits and other indicators of compromise. This supports HIPAA § 164.308(a)(5)(ii)(B) by detecting malicious software that can compromise the security of systems and electronic protected health information. Follow these steps to detect the Diamorphine rootkit on an Ubuntu 26.04 endpoint.

Configuration

Follow these steps on the Ubuntu 26.04 endpoint to emulate rootkit-like process-hiding behavior. The Wazuh agent runs a RootCheck scan based on the set <frequency> and detects the rootkit behavior.

Switch to the root user and refresh package lists:
```
$ sudo su
# apt update
```
Install the packages required for building the rootkit:
```
# apt -y install gcc git make
```

For the purpose of this POC, configure the Wazuh agent to run rootcheck scans every 2 minutes. In the /var/ossec/etc/ossec.conf file, set the frequency option in the <rootcheck> section to 120:

<rootcheck>
   <disabled>no</disabled>
   <check_dev>yes</check_dev>
   <check_sys>yes</check_sys>
   <check_pids>yes</check_pids>
   <check_ports>yes</check_ports>
   <check_if>yes</check_if>
   <!-- Frequency that rootcheck is executed - every 12 hours -->
   <frequency>120</frequency>
   <skip_nfs>yes</skip_nfs>
   <ignore>/var/lib/containerd</ignore>
   <ignore>/var/lib/docker/overlay2</ignore>
</rootcheck>

Restart the Wazuh agent to apply the changes:
```
# systemctl restart wazuh-agent
```

Attack emulation

We performed the following emulation on the monitored Ubuntu 26.04 endpoint:

Fetch the Diamorphine rootkit source code from GitHub:
```
# git clone https://github.com/m0nad/Diamorphine
```
Navigate to the Diamorphine directory, replace the outdated PROC_ROOT_INO symbol with the Ubuntu 26.04 equivalent, and compile the source code:
```
# cd Diamorphine
# sed -i 's/PROC_ROOT_INO/PROCFS_ROOT_INO/g' diamorphine.c
# make
```
Load the rootkit kernel module:
```
# insmod diamorphine.ko
```
Run the kill signal 63 with the PID of a random process running on the Ubuntu endpoint. This unhides the Diamorphine rootkit. By default, Diamorphine hides itself so we do not detect it by running the lsmod command. Try it out:
```
# lsmod | grep diamorphine
# kill -63 509
# lsmod | grep diamorphine
```
The command output looks similar to this:
```
diamorphine            16384  0
```
Run the following commands to see how the rsyslogd process is first visible and then no longer visible. This rootkit allows you to hide selected processes from the ps command. Sending a kill signal 31 hides or unhides any process:
```
# ps auxw | grep rsyslogd | grep -v grep
```
The command output looks similar to this:
```
syslog      1371  0.0  0.0 220548  5292 ?        Ssl  15:15   0:00 /usr/sbin/rsyslogd -n -iNONE
```
```
# kill -31 <PID_OF_RSYSLOGD>
# ps auxw | grep rsyslog | grep -v grep
```
Replace <PID_OF_RSYSLOGD> with the PID retrieved from the previous command.

When using this last command, you can expect an empty output. The next rootcheck scan runs and triggers a finding about the rsyslogd process, which was hidden with the Diamorphine rootkit.
Unload the rootkit kernel module:
```
# rmmod diamorphine
```

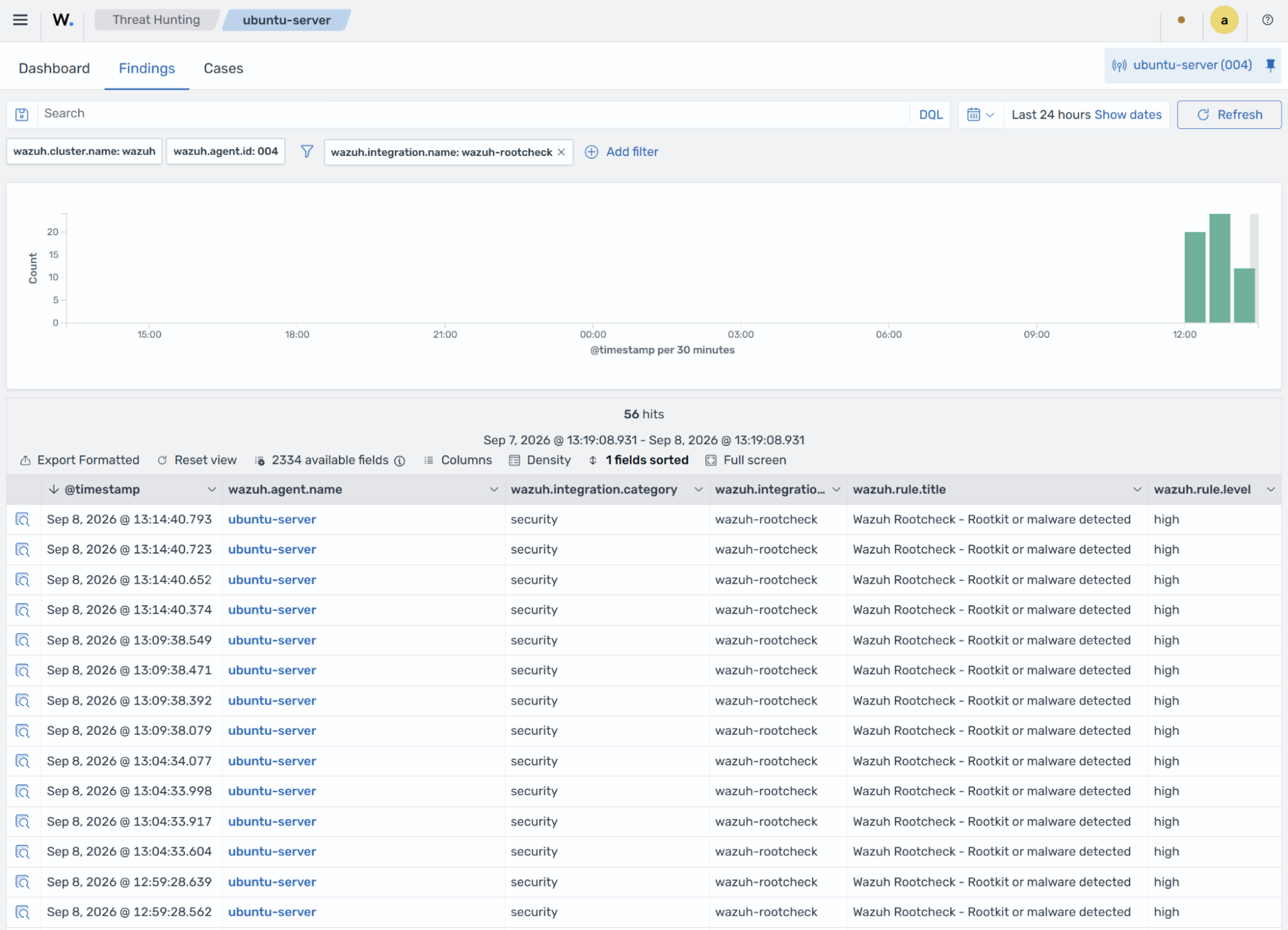

Navigate to the Threat intelligence > Threat Hunting dashboard and add the following filter in the search bar to query the findings:
- wazuh.integration.name: wazuh-rootcheck
