Index templates reference

The Wazuh indexer uses index templates to define the mappings, settings, rollover policies, and retention settings applied to the Wazuh indices.

Templates are automatically created and managed by the Setup module during Wazuh indexer startup.

Event templates

Event templates define the mappings and settings applied to event data streams. All categorized event data streams share a common template structure that includes:

Wazuh Common Schema (WCS) mappings.
Data stream configuration.
Lifecycle policy assignment.
Index settings.

The following example shows a simplified event template:

{
  "index_patterns": [
    "wazuh-events-v5-*"
  ],
  "priority": 1,
  "data_stream": {},
  "template": {
    "settings": {
      "plugins.index_state_management.policy_id": "stream-events-policy"
    }
  }
}

Event template retention

Event data streams retain data for a short period because they primarily serve as an intermediate processing layer.

Data stream	Default retention
`wazuh-events-raw-v5`	10 minutes
`wazuh-events-v5-*`	1 hour
`wazuh-events-v5-unclassified`	1 hour

Specialized templates

Some workloads require dedicated templates because their mappings or lifecycle requirements differ from standard event data.

Findings template

The findings template manages Security Analytics findings stored in wazuh-findings-v5-*.

The template applies a dedicated lifecycle policy optimized for investigation and threat hunting workflows.

Example:

{
  "index_patterns": [
    "wazuh-findings-v5-*"
  ],
  "priority": 1,
  "data_stream": {},
  "template": {
    "settings": {
      "plugins.index_state_management.policy_id": "stream-findings-policy"
    }
  }
}

Default retention:

Data stream	Retention
`wazuh-findings-v5-*`	90 days

Active response template

The active response template manages response execution requests stored in wazuh-active-responses.

The template applies a dedicated lifecycle policy because active response requests are short-lived operational data.

Example:

{
  "index_patterns": [
    "wazuh-active-responses*"
  ],
  "priority": 1,
  "data_stream": {},
  "template": {
    "settings": {
      "plugins.index_state_management.policy_id": "stream-active-responses-policy"
    }
  }
}

Default retention:

Data stream	Retention
`wazuh-active-responses`	3 days

Metrics templates

Metrics templates manage operational metrics generated by Wazuh components. Examples include:

wazuh-metrics-agents
wazuh-metrics-comms

Metrics templates use dedicated mappings optimized for metric aggregation and visualization.

Index State Management

The Wazuh indexer uses Index State Management (ISM) policies to automate rollover and retention operations. An ISM policy controls:

Rollover conditions.
Retention periods.
Index deletion.

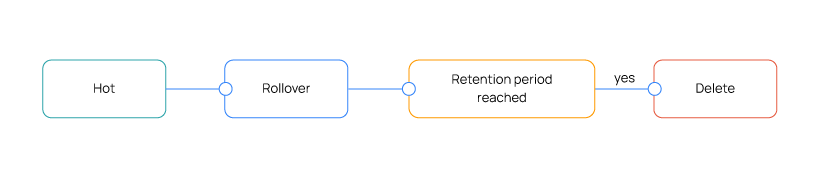

Policy lifecycle

All Wazuh stream policies follow the same lifecycle:

The following example shows a simplified lifecycle policy:

{
  "policy": {
    "default_state": "hot",
    "states": [
      {
        "name": "hot",
        "actions": [
          {
            "rollover": {
              "min_doc_count": 200000000,
              "min_primary_shard_size": "20gb"
            }
          }
        ],
        "transitions": [
          {
            "state_name": "delete",
            "conditions": {
              "min_index_age": "90d"
            }
          }
        ]
      },
      {
        "name": "delete",
        "actions": [
          {
            "delete": {}
          }
        ]
      }
    ]
  }
}

Rollover conditions

A rollover creates a new backing index and redirects write operations to the new index. By default, Wazuh rolls over a data stream when either of the following limits is reached:

Condition	Value
Primary shard size	20 GB
Document count	200 million documents

The first threshold reached triggers the rollover.

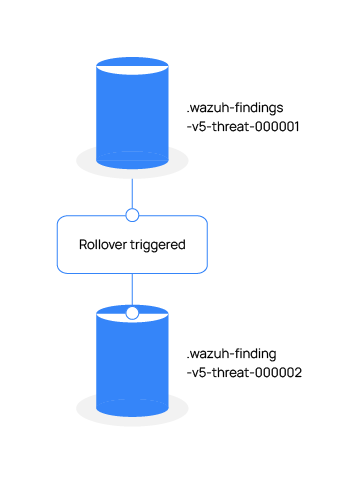

Example rollover sequence:

Template priorities

Template priority determines which template is applied when multiple templates match the same index pattern. The following priorities are used by default:

Template	Priority
Active responses	1
Raw events	1
Event streams	1
Findings	1
Metrics	1

Templates with higher priorities override templates with lower priorities.

Note

Custom templates intended to override Wazuh-managed templates should use a higher priority value.

Template generation workflow

During startup, the Setup module automatically deploys the templates and policies required by the Wazuh indexer. The deployment process consists of the following steps:

Load packaged template definitions.
Create or update index templates.
Create or update ISM policies.
Create required data streams.
Apply mappings and lifecycle settings.

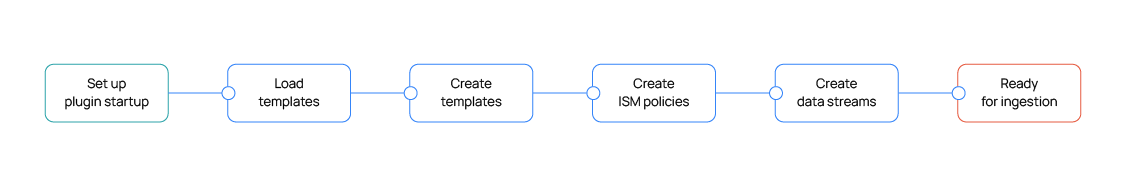

The following workflow illustrates the process:

Verifying deployed templates

List all deployed templates:

GET /_index_template/wazuh-*

View a specific template:

GET /_index_template/<template-name>

List lifecycle policies:

GET /_plugins/_ism/policies
