Use cases
This section provides several use cases to demonstrate some of the potentials of the Wazuh indexer API.
Exploring alerts
Wazuh stores triggered alerts in the wazuh-alerts*
index in the Wazuh indexer; we can use the Wazuh indexer API to query the alerts. In this use case, we identify the most risky users. This is done using the _search
endpoint to search through all alerts in the index and aggregate the srcuser
field to identify the top three (3) users associated with triggered alerts.
Follow the steps below.
Navigate to Index management > Dev Tools.
Input the following query and execute:
POST /wazuh-alerts*/_search { "size": 0, "aggs": { "top_risky_users": { "terms": { "field": "data.dstuser", "size": 3, "order": { "_count": "desc" } } } } }
As seen in the response, three different users and their number of occurrences are identified. This depicts the users with the most alerts. This information is useful to security analysts and threat hunters as they prioritize defense and discovery efforts.
{
"took": 19,
"timed_out": false,
"_shards": {
"total": 9,
"successful": 9,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 2352,
"relation": "eq"
},
"max_score": null,
"hits": []
},
"aggregations": {
"top_risky_users": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 10,
"buckets": [
{
"key": "root(uid=0)",
"doc_count": 21
},
{
"key": "cain",
"doc_count": 18
},
{
"key": "abel",
"doc_count": 5
}
]
}
}
}
Getting information about the Wazuh indexer configuration
You can retrieve details about the Wazuh indexer through the Wazuh indexer API, such as configuration settings, status, logs, and more. The following example demonstrates how to retrieve the current security configuration (authentication) settings of the Wazuh indexer.
Navigate to Index management > Dev Tools.
Input the following query and execute:
GET _plugins/_security/api/securityconfig
The following output shows us the current authentication settings in the Wazuh indexer.
{
"config": {
"dynamic": {
"filtered_alias_mode": "warn",
"disable_rest_auth": false,
"disable_intertransport_auth": false,
"respect_request_indices_options": false,
"kibana": {
"multitenancy_enabled": true,
"private_tenant_enabled": true,
"default_tenant": "",
"server_username": "kibanaserver",
"index": ".kibana"
},
"http": {
"anonymous_auth_enabled": false,
"xff": {
"enabled": false,
"internalProxies": """192\.168\.0\.10|192\.168\.0\.11""",
"remoteIpHeader": "X-Forwarded-For"
}
},
"authc": {
"jwt_auth_domain": {
"http_enabled": true,
"order": 0,
"http_authenticator": {
"challenge": false,
"type": "jwt",
"config": {
"signing_key": "base64 encoded HMAC key or public RSA/ECDSA pem key",
"jwt_header": "Authorization",
"jwt_clock_skew_tolerance_seconds": 30,
"roles_key": "roles",
"subject_key": "sub"
}
},
"authentication_backend": {
"type": "noop",
"config": {}
},
"description": "Authenticate via Json Web Token"
},
"ldap": {
"http_enabled": false,
"order": 5,
"http_authenticator": {
"challenge": false,
"type": "basic",
"config": {}
},
"authentication_backend": {
"type": "ldap",
"config": {
"enable_ssl": false,
"enable_start_tls": false,
"enable_ssl_client_auth": false,
"verify_hostnames": true,
"hosts": [
"localhost:8389"
],
"userbase": "ou=people,dc=example,dc=com",
"usersearch": "(sAMAccountName={0})"
}
},
"description": "Authenticate via LDAP or Active Directory"
},
"basic_internal_auth_domain": {
"http_enabled": true,
"order": 4,
"http_authenticator": {
"challenge": true,
"type": "basic",
"config": {}
},
"authentication_backend": {
"type": "intern",
"config": {}
},
"description": "Authenticate via HTTP Basic against internal users database"
},
"proxy_auth_domain": {
"http_enabled": false,
"order": 3,
"http_authenticator": {
"challenge": false,
"type": "proxy",
"config": {
"user_header": "x-proxy-user",
"roles_header": "x-proxy-roles"
}
},
"authentication_backend": {
"type": "noop",
"config": {}
},
"description": "Authenticate via proxy"
},
"clientcert_auth_domain": {
"http_enabled": false,
"order": 2,
"http_authenticator": {
"challenge": false,
"type": "clientcert",
"config": {
"username_attribute": "cn"
}
},
"authentication_backend": {
"type": "noop",
"config": {}
},
"description": "Authenticate via SSL client certificates"
},
"kerberos_auth_domain": {
"http_enabled": false,
"order": 6,
"http_authenticator": {
"challenge": true,
"type": "kerberos",
"config": {
"krb_debug": false,
"strip_realm_from_principal": true
}
},
"authentication_backend": {
"type": "noop",
"config": {}
}
}
},
"authz": {
"roles_from_another_ldap": {
"http_enabled": false,
"authorization_backend": {
"type": "ldap",
"config": {}
},
"description": "Authorize via another Active Directory"
},
"roles_from_myldap": {
"http_enabled": false,
"authorization_backend": {
"type": "ldap",
"config": {
"enable_ssl": false,
"enable_start_tls": false,
"enable_ssl_client_auth": false,
"verify_hostnames": true,
"hosts": [
"localhost:8389"
],
"rolebase": "ou=groups,dc=example,dc=com",
"rolesearch": "(member={0})",
"userrolename": "disabled",
"rolename": "cn",
"resolve_nested_roles": true,
"userbase": "ou=people,dc=example,dc=com",
"usersearch": "(uid={0})"
}
},
"description": "Authorize via LDAP or Active Directory"
}
},
"auth_failure_listeners": {},
"do_not_fail_on_forbidden": false,
"multi_rolespan_enabled": true,
"hosts_resolver_mode": "ip-only",
"do_not_fail_on_forbidden_empty": false,
"on_behalf_of": {
"enabled": false
}
}
}
}
Run a report on cluster health and statistics
Keeping track of the Wazuh indexer health and associated node statistics is important to identify and resolve performance issues promptly. This use case demonstrates how we can programmatically interact with the Wazuh indexer API to generate reports.
Export your Wazuh indexer authentication credentials as environment variables:
# export WAZUH_INDEXER_USER= "<WAZUH_INDEXER_USERNAME>" # export WAZUH_INDEXER_PASS = "<WAZUH_INDEXER_PASSWORD>"
Replace
<WAZUH_INDEXER_USERNAME>
and<WAZUH_INDEXER_PASSWORD>
with your Wazuh indexer username and password.Create a file
indexer_check_report.sh
and input the following script to the file:#!/bin/bash # Configuration BASE_URL="https://localhost:9200" # Change IP/hostname if you are not running script locally DATE=$(date +%Y-%m-%d) OUTPUT_FILE="wazuh_indexer_report_${DATE}.html" USER="${WAZUH_INDEXER_USER}" PASS="${WAZUH_INDEXER_PASS}" api_request() { local endpoint=$1 curl -s -k -u $USER:$PASS -H "Content-Type: application/json" "$BASE_URL$endpoint" } # Fetch cluster health fetch_cluster_health() { api_request "/_cluster/health" } # Fetch index statistics fetch_index_stats() { api_request "/_cat/indices?format=json" } # Fetch node statistics fetch_node_stats() { api_request "/_nodes/stats" } # Format JSON to indented HTML format_json_html() { local json=$1 echo "$json" | jq '.' | sed 's/&/&/g; s/</\</g; s/>/\>/g' | awk '{print "<div>" $0 "</div>"}' } # Generate HTML report generate_html_report() { local cluster_health=$1 local index_stats=$2 local node_stats=$3 cat <<EOF > \$OUTPUT_FILE <!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>Wazuh Indexer Report</title> <style> body { font-family: Arial, sans-serif; } h1 { text-align: center; } table { width: 100%; border-collapse: collapse; margin: 20px 0; } th, td { border: 1px solid #ddd; padding: 8px; text-align: left; } th { background-color: #f4f4f4; } .json-block { font-family: monospace; background-color: #f9f9f9; padding: 10px; border: 1px solid #ddd; overflow-x: auto; } .json-block div { white-space: pre; } </style> </head> <body> <h1>Wazuh Indexer Report</h1> <h2>Cluster Health</h2> <div class="json-block"> \$(format_json_html "\$cluster_health") </div> <h2>Index Statistics</h2> <table> <tr> <th>Index</th> <th>Status</th> <th>Docs Count</th> <th>Store Size</th> </tr> EOF # Parse and append index stats echo "\$index_stats" | jq -r '.[] | "<tr><td>\(.index)</td><td>\(.status)</td><td>\(.docs_count)</td><td>\(.store.size)</td></tr>"' >> \$OUTPUT_FILE cat <<EOF >> \$OUTPUT_FILE </table> <h2>Node Statistics</h2> <div class="json-block"> \$(format_json_html "\$node_stats") </div> </body> </html> EOF } # Main execution echo "Fetching cluster health..." cluster_health=\$(fetch_cluster_health) echo "Fetching index statistics..." index_stats=\$(fetch_index_stats) echo "Fetching node statistics..." node_stats=\$(fetch_node_stats) echo "Generating HTML report..." generate_html_report "\$cluster_health" "\$index_stats" "\$node_stats" echo "Report generated at \$OUTPUT_FILE"
Execute the
indexer_check_report.sh
script:# ./indexer_check_report.sh

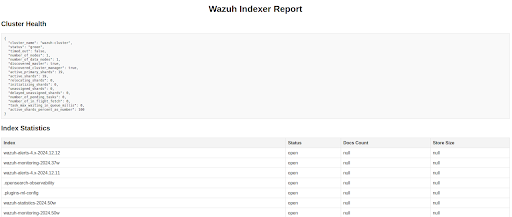

Upon successful execution of the script, a report is created where we can see the cluster health and state of the indexes. The below image shows an example of the report.

Query vulnerability data
Wazuh indexer API also facilitates the querying of vulnerability detection data. Vulnerability data is stored in the wazuh-states-vulnerabilities*
index. We can query the index for any vulnerability data. In the example below, we search for a particular CVE CVE-2020-14393
to identify if any monitored endpoint is affected:
GET /wazuh-states-vulnerabilities*/_search
{
"query": {
"term": {
"vulnerability.id": "CVE-2020-14393"
}
}
}
The query result below shows the value of hits.total.value
key indicates that 1 monitored endpoint is affected by the CVE:
{
"took": 36,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 1,
"relation": "eq"
},
"max_score": 8.063168,
"hits": [
{
"_index": "wazuh-states-vulnerabilities-wazuh-virtualbox",
"_id": "001_0004793434acd501b092a6921d3a92a63d8a1d69_CVE-2020-14393",
"_score": 8.063168,
"_source": {
"agent": {
"id": "001",
"name": "centosagent",
"type": "wazuh",
"version": "v4.9.1"
},
"host": {
"os": {
"full": "CentOS Linux 7.9.2009",
"kernel": "3.10.0-1160.119.1.el7.x86_64",
"name": "CentOS Linux",
"platform": "centos",
"type": "centos",
"version": "7.9.2009"
}
},
"package": {
"architecture": "x86_64",
"description": "A database access API for perl",
"installed": "2022-12-01T19:56:04.000Z",
"name": "perl-DBI",
"size": 2008211,
"type": "rpm",
"version": "1.627-4.el7"
},
"vulnerability": {
"category": "Packages",
"classification": "CVSS",
"description": "A buffer overflow was found in perl-DBI < 1.643 in DBI.xs. A local attacker who is able to supply a string longer than 300 characters could cause an out-of-bounds write, affecting the availability of the service or integrity of data.",
"detected_at": "2024-12-11T00:14:31.360Z",
"enumeration": "CVE",
"id": "CVE-2020-14393",
"published_at": "2020-09-16T14:15:12Z",
"reference": "http://lists.opensuse.org/opensuse-security-announce/2020-09/msg00074.html, https://bugzilla.redhat.com/show_bug.cgi?id=1877409, https://lists.debian.org/debian-lts-announce/2020/09/msg00026.html, https://metacpan.org/pod/distribution/DBI/Changes#Changes-in-DBI-1.643, http://lists.opensuse.org/opensuse-security-announce/2020-09/msg00067.html, https://lists.fedoraproject.org/archives/list/package-announce%40lists.fedoraproject.org/message/JXLKODJ7B57GITDEZZXNSHPK4VBYXYHR/",
"scanner": {
"vendor": "Wazuh"
},
"score": {
"base": 3.6,
"version": "2.0"
},
"severity": "Low"
},
"wazuh": {
"cluster": {
"name": "wazuh-VirtualBox"
},
"schema": {
"version": "1.0.0"
}
}
}
}
]
}
}
Threat hunting
The Wazuh indexer API is helpful during threat hunting exercises where you have to query external systems. This use case demonstrates how we can extract source IPs from alerts and run them against AbuseIPDB; we generate a report showing if the source IP is contained in AbuseIPDB’s bad reputation IP listing. Follow the steps below.
Sign up for a free AbuseIPDB account and obtain an AbuseIPDB API key.
Export your Wazuh indexer authentication credentials and the AbuseIPDB API key as environment variables:
# export WAZUH_INDEXER_USER= "<WAZUH_INDEXER_USERNAME>" # export WAZUH_INDEXER_PASS= "<WAZUH_INDEXER_PASSWORD>" # export ABUSEIPDB_KEY="<ABUSEIPDB_KEY>"
Replace
<WAZUH_INDEXER_USERNAME>
and<WAZUH_INDEXER_PASSWORD>
with your Wazuh indexer username and password. ReplaceABUSEIPDB_KEY
with your AbuseIPDB API key collected in step 1.Create a file
ip_reputation_check.sh
and input the following script to the file:#!/bin/bash # Configuration WAZUH_INDEXER_BASE_URL="https://localhost:9200" # Add Wazuh indexer IP/Hostname if the script is not executed locally. INDEX_NAME="wazuh-alerts*" ABUSEIPDB_API_URL="https://api.abuseipdb.com/api/v2/check" ABUSEIPDB_API_KEY="${ABUSEIPDB_KEY}" USER="${WAZUH_INDEXER_USER}" PASS="${WAZUH_INDEXER_PASS}" DATE=$(date +%Y-%m-%d) OUTPUT_FILE="ip_report_${DATE}.html" # Fetch unique source IP addresses from Wazuh Indexer fetch_source_ips() { curl -s -k -u $USER:$PASS -H "Content-Type: application/json" \ -X POST "$WAZUH_INDEXER_BASE_URL/$INDEX_NAME/_search" -d '{ "size": 0, "aggs": { "unique_ips": { "terms": { "field": "data.srcip", "size": 100 } } } }' | jq -r '.aggregations.unique_ips.buckets[].key' } # Check an IP address against AbuseIPDB check_ip_abuseipdb() { local ip=$1 curl -s -G "$ABUSEIPDB_API_URL" \ --data-urlencode "ipAddress=$ip" \ -H "Key: $ABUSEIPDB_API_KEY" \ -H "Accept: application/json" } # Generate HTML report generate_html_report() { local ips=("$@") echo "<!DOCTYPE html>" > $OUTPUT_FILE echo "<html><head><title>AbuseIPDB Report</title></head><body>" >> $OUTPUT_FILE echo "<h1>AbuseIPDB Report for Source IPs</h1>" >> $OUTPUT_FILE echo "<table border='1'><tr><th>IP Address</th><th>Abuse Confidence Score</th><th>Last Reported</th><th>Reports</th></tr>" >> $OUTPUT_FILE for ip in "${ips[@]}"; do response=$(check_ip_abuseipdb "$ip") confidence_score=$(echo "$response" | jq -r '.data.abuseConfidenceScore // "N/A"') last_reported=$(echo "$response" | jq -r '.data.lastReportedAt // "N/A"') total_reports=$(echo "$response" | jq -r '.data.totalReports // "N/A"') echo "<tr><td>$ip</td><td>$confidence_score</td><td>$last_reported</td><td>$total_reports</td></tr>" >> $OUTPUT_FILE done echo "</table></body></html>" >> $OUTPUT_FILE } # Main Script Execution echo "Fetching source IPs from Wazuh Indexer..." source_ips=($(fetch_source_ips)) if [ ${#source_ips[@]} -eq 0 ]; then echo "No source IPs found." exit 1 fi echo "Found ${#source_ips[@]} unique source IPs. Checking them against AbuseIPDB..." generate_html_report "${source_ips[@]}" echo "Report generated: $OUTPUT_FILE"
Execute the
ip_reputation_check.sh
script:# ./ip_threat_hunt.sh

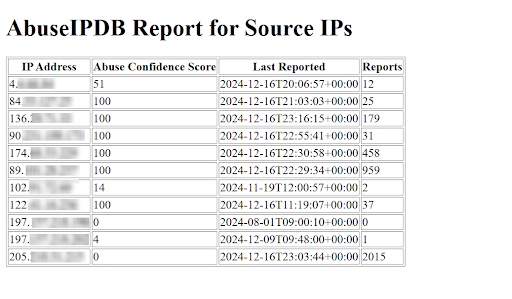

Upon successful execution of the script, a report is created as seen in the image below.
