Visualization

The Wazuh server registers events from agentless endpoints under the Wazuh server name and ID 000. Therefore, they do not appear as individual agents on the Wazuh dashboard. Agentless endpoints don't affect the total agent count. You can create a custom visualization to view the alerts from agentless endpoints.

Perform the following steps to create a visualization for the alerts from agentless endpoints.

1. Navigate to the Discover section.



2. Filter agentless logs by searching for agentless.host:*.



3. Add the following fields from the Available fields section:

   • rule.description

   • rule.level

   • rule.id

   • agentless.host

   You can see in the image below how you can add the rule.description field. Follow the same step for the remaining fields.

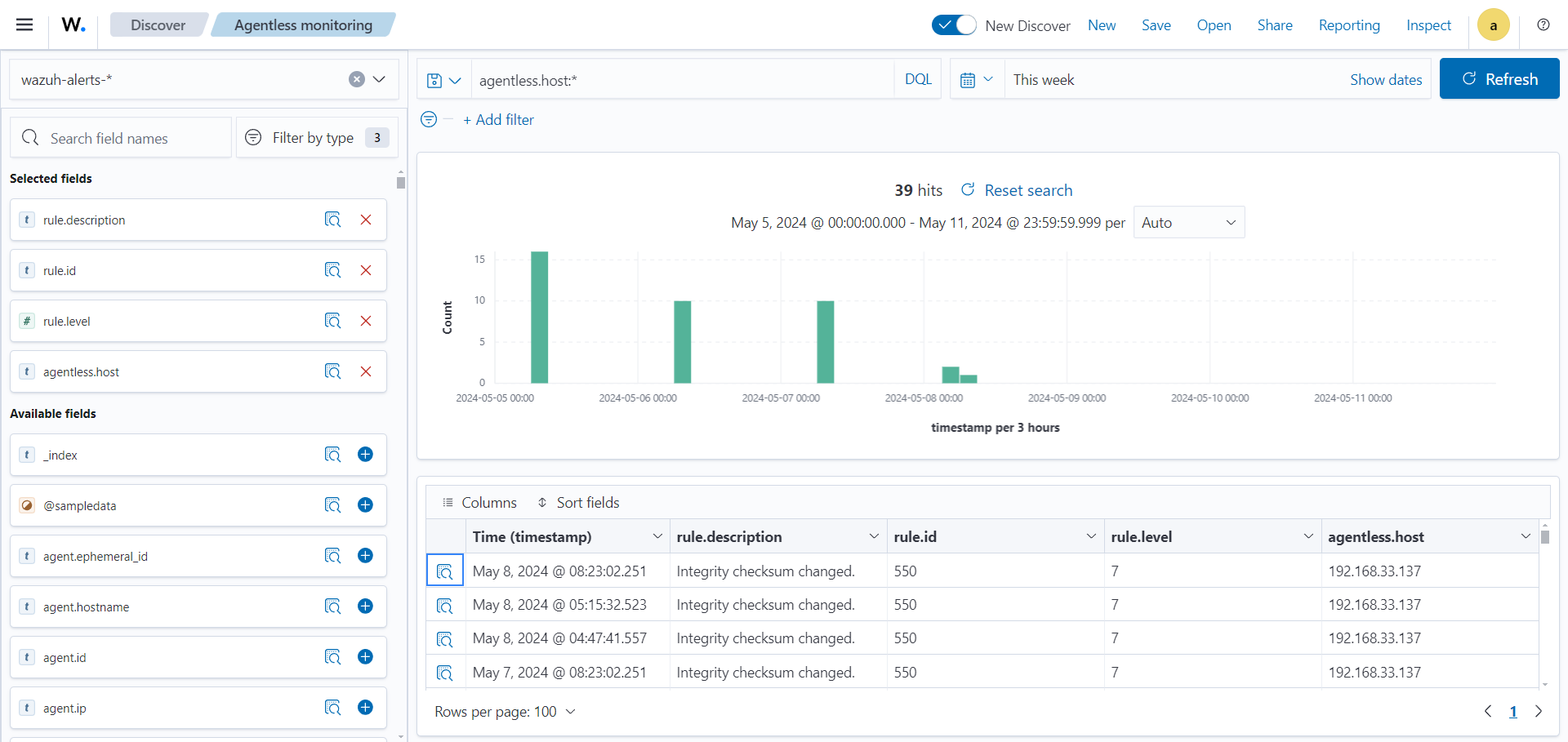

4. After adding all the fields, the dashboard should look similar to the image below.



5. Click on Save and assign a name to the dashboard. In this example, you can name it as Agentless monitoring.



6. After assigning a name, click the Save button to apply the configuration.



7. Click on Open to access the visualization.

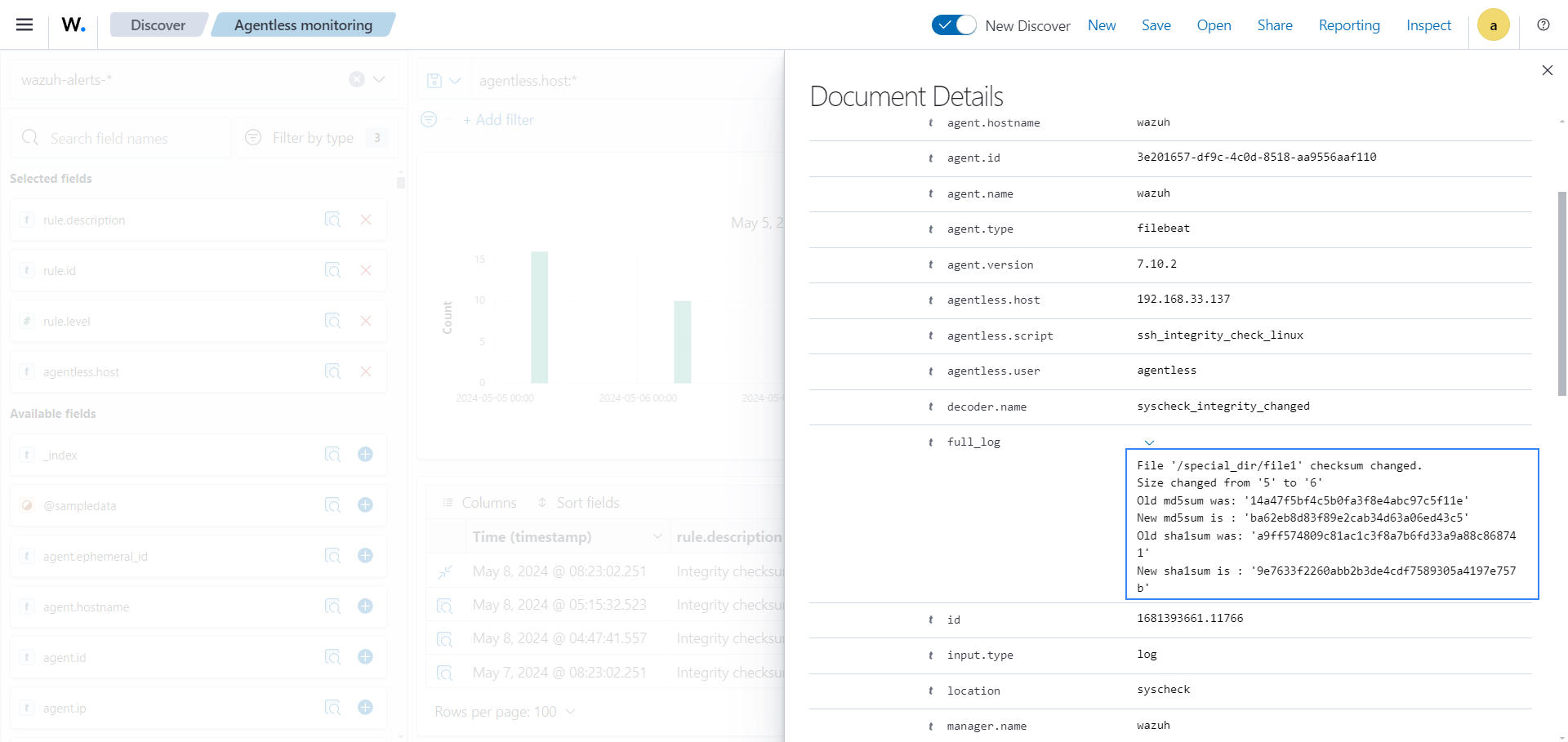

8. Expand one of the alerts to view more information about the event.



Alert in JSON:

{
  "_index": "wazuh-alerts-4.x-2023.04.13",
  "_id": "VPPfeocBfkbi0eGUYKSc",
  "_version": 1,
  "_score": null,
  "_source": {
    "syscheck": {
      "path": "/special_dir/file1",
      "sha1_after": "9e7633f2260abb2b3de4cdf7589305a4197e757b",
      "size_before": "5",
      "changed_attributes": [
        "size",
        "md5",
        "sha1"
      ],
      "size_after": "6",
      "uid_after": "0",
      "gid_after": "0",
      "md5_before": "14a47f5bf4c5b0fa3f8e4abc97c5f11e",
      "perm_after": "001204",
      "event": "modified",
      "md5_after": "ba62eb8d83f89e2cab34d63a06ed43c5",
      "sha1_before": "a9ff574809c81ac1c3f8a7b6fd33a9a88c868741"
    },
    "input": {
      "type": "log"
    },
    "agent": {
      "hostname": "wazuh",
      "name": "wazuh",
      "id": "3e201657-df9c-4c0d-8518-aa9556aaf110",
      "type": "filebeat",
      "ephemeral_id": "6fed6291-e32d-4a30-ad9b-20fcf172ee7a",
      "version": "7.10.2"
    },
    "manager": {
      "name": "wazuh"
    },
    "agentless": {
      "host": "192.168.33.137",
      "user": "agentless",
      "script": "ssh_integrity_check_linux"
    },
    "rule": {
      "mail": false,
      "level": 7,
      "pci_dss": [
        "11.5"
      ],
      "hipaa": [
        "164.312.c.1",
        "164.312.c.2"
      ],
      "tsc": [
        "PI1.4",
        "PI1.5",
        "CC6.1",
        "CC6.8",
        "CC7.2",
        "CC7.3"
      ],
      "description": "Integrity checksum changed.",
      "groups": [
        "ossec",
        "syscheck",
        "syscheck_entry_modified",
        "syscheck_file"
      ],
      "nist_800_53": [
        "SI.7"
      ],
      "gdpr": [
        "II_5.1.f"
      ],
      "firedtimes": 3,
      "mitre": {
        "technique": [
          "Stored Data Manipulation"
        ],
        "id": [
          "T1565.001"
        ],
        "tactic": [
          "Impact"
        ]
      },
      "id": "550",
      "gpg13": [
        "4.11"
      ]
    },
    "location": "syscheck",
    "decoder": {
      "name": "syscheck_integrity_changed"
    },
    "id": "1681393661.11766",
    "full_log": "File '/special_dir/file1' checksum changed.\nSize changed from '5' to '6'\nOld md5sum was: '14a47f5bf4c5b0fa3f8e4abc97c5f11e'\nNew md5sum is : 'ba62eb8d83f89e2cab34d63a06ed43c5'\nOld sha1sum was: 'a9ff574809c81ac1c3f8a7b6fd33a9a88c868741'\nNew sha1sum is : '9e7633f2260abb2b3de4cdf7589305a4197e757b'\n",
    "timestamp": "2023-04-13T16:47:41.557+0300"
  },
  "fields": {
    "timestamp": [
      "2023-04-13T13:47:41.557Z"
    ]
  },
  "highlight": {
    "manager.name": [
      "@opensearch-dashboards-highlighted-field@wazuh@/opensearch-dashboards-highlighted-field@"
    ]
  },
  "sort": [
    1681393661557
  ]
}
