Microsoft Graph

In this section, you will learn how to monitor your Microsoft Entra ID activity using the Microsoft Graph REST API. This section contains:

Azure configuration
Wazuh configuration
Microsoft Entra ID use case

The following are endpoints in the Microsoft Graph REST API related to auditing and monitoring activities in Microsoft Entra ID.

Report type	Query
Directory audits	`auditLogs/directoryaudits`
Sign-ins	`auditLogs/signIns`
Provisioning	`auditLogs/provisioning`

These endpoints allow administrators and developers to monitor and audit activities within Microsoft Entra ID for security, compliance, and operational purposes.

Wazuh can process Microsoft Entra ID activity reports using the above endpoints. Each one of them requires you to execute a different query. You will place these queries within the command block of your Wazuh module for Azure configuration.

Configuration

Azure

Creating the application

This section explains creating an application using the Azure Log Analytics REST API. However, it is also possible to configure an existing application. If this is the case, skip this step.

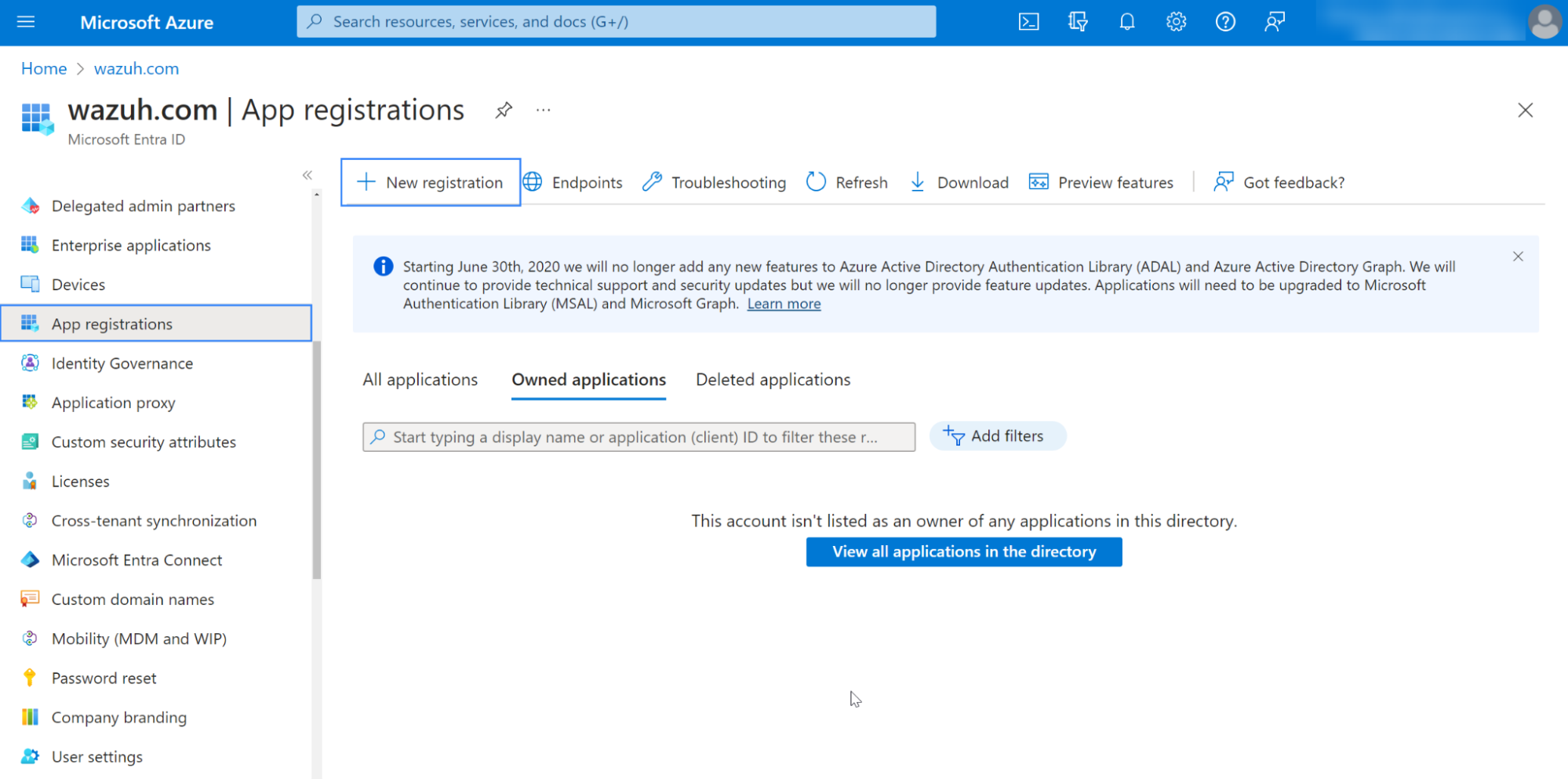

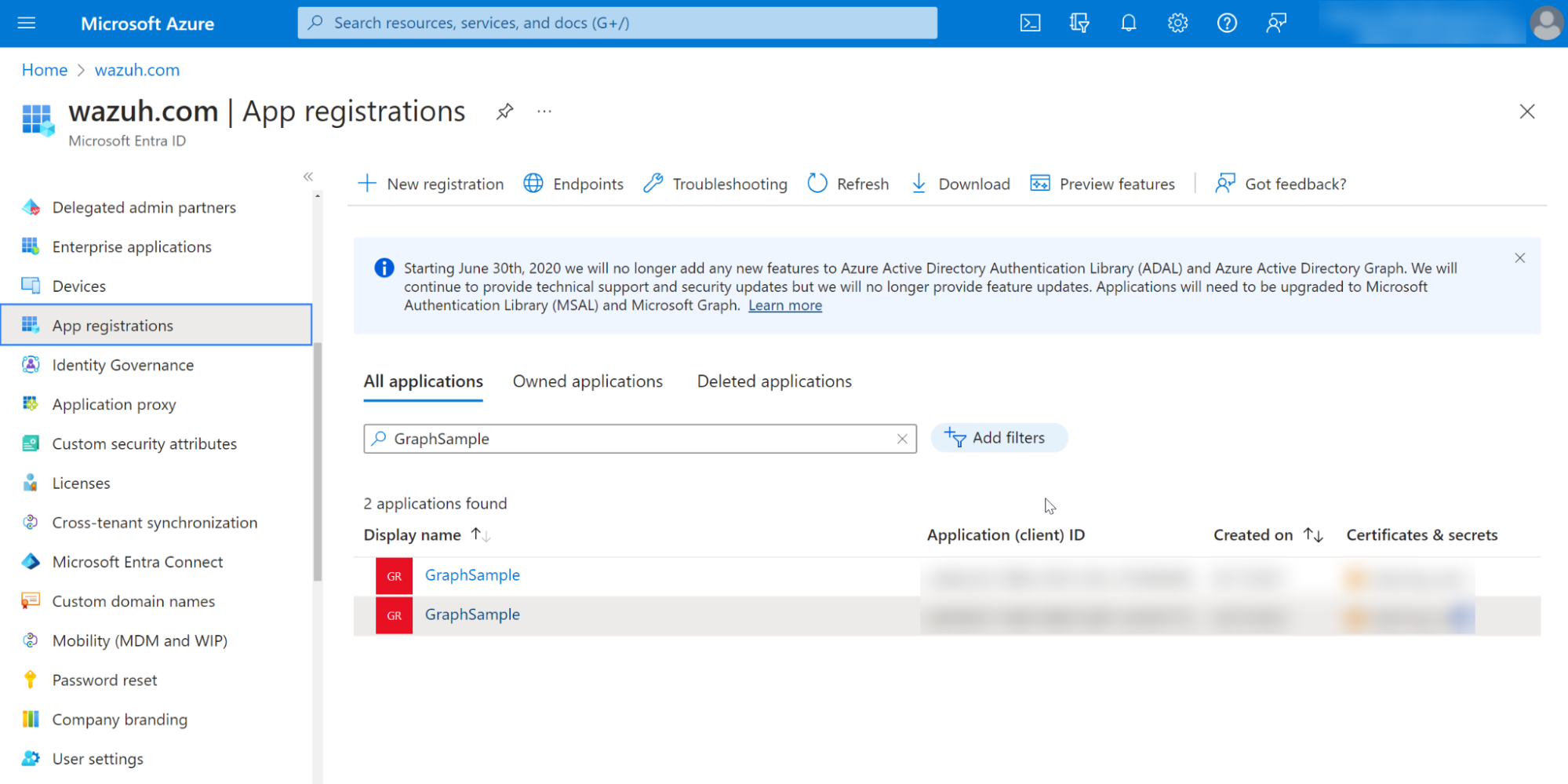

In the Microsoft Entra ID panel, select App registrations. Then, select New registration.

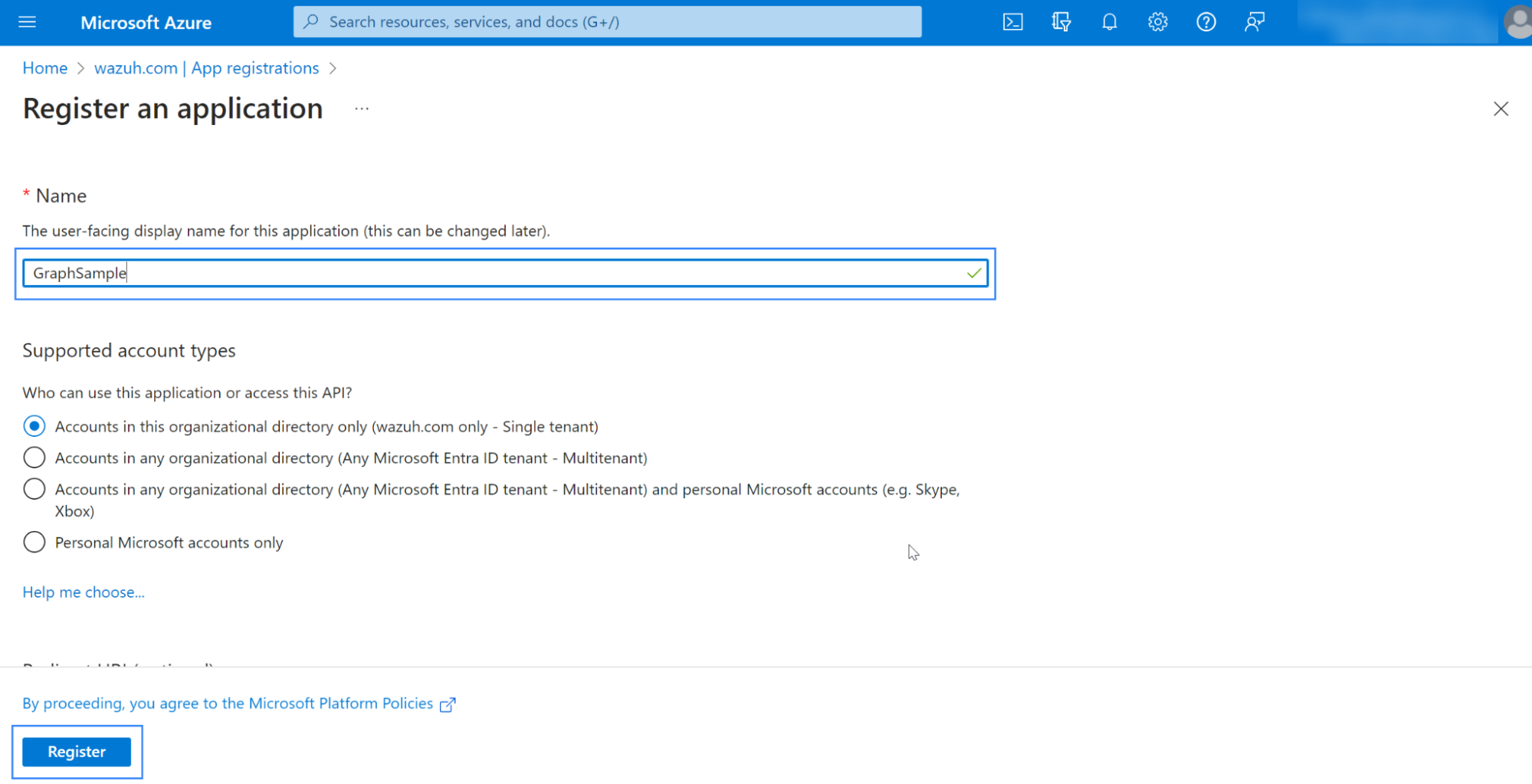

Give the app a descriptive name, select the appropriate account type, and click Register.

The app is now registered.

Granting permissions to the application

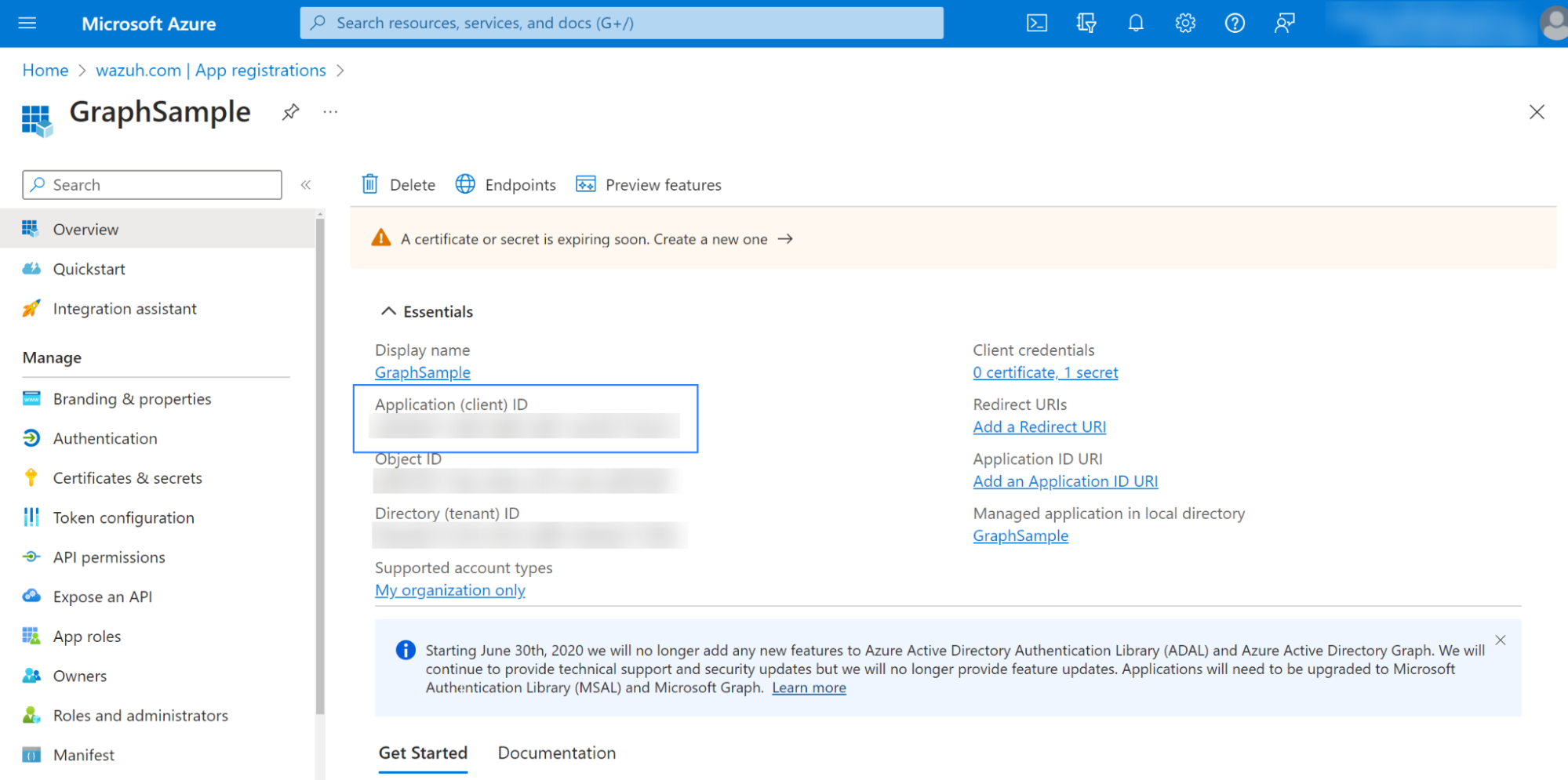

Click on the application, go to the Overview section, and save the Application (client) ID for later authentication.
Select the Add a permission option in the API permissions section.

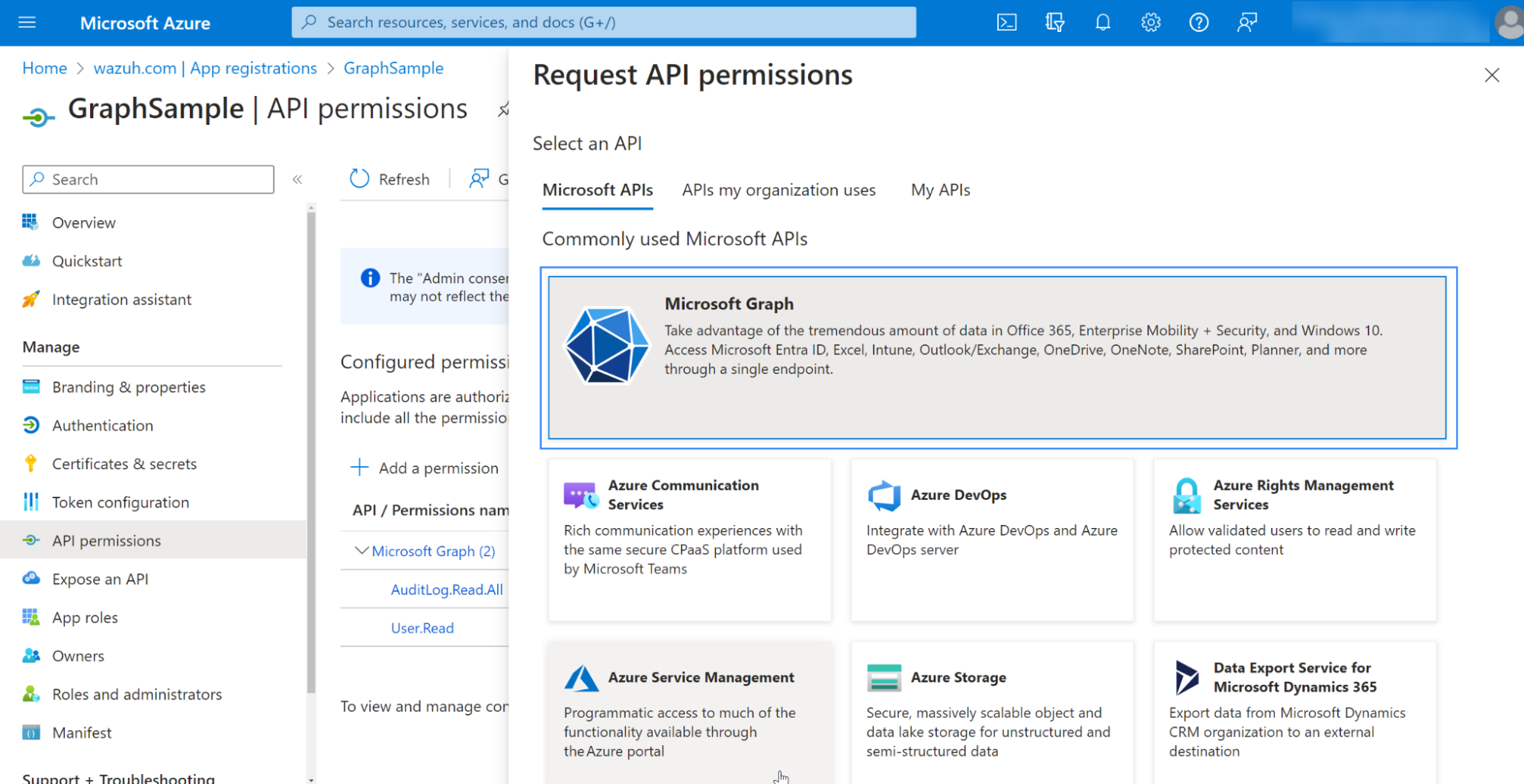

Search for "Microsoft Graph" and select the API.

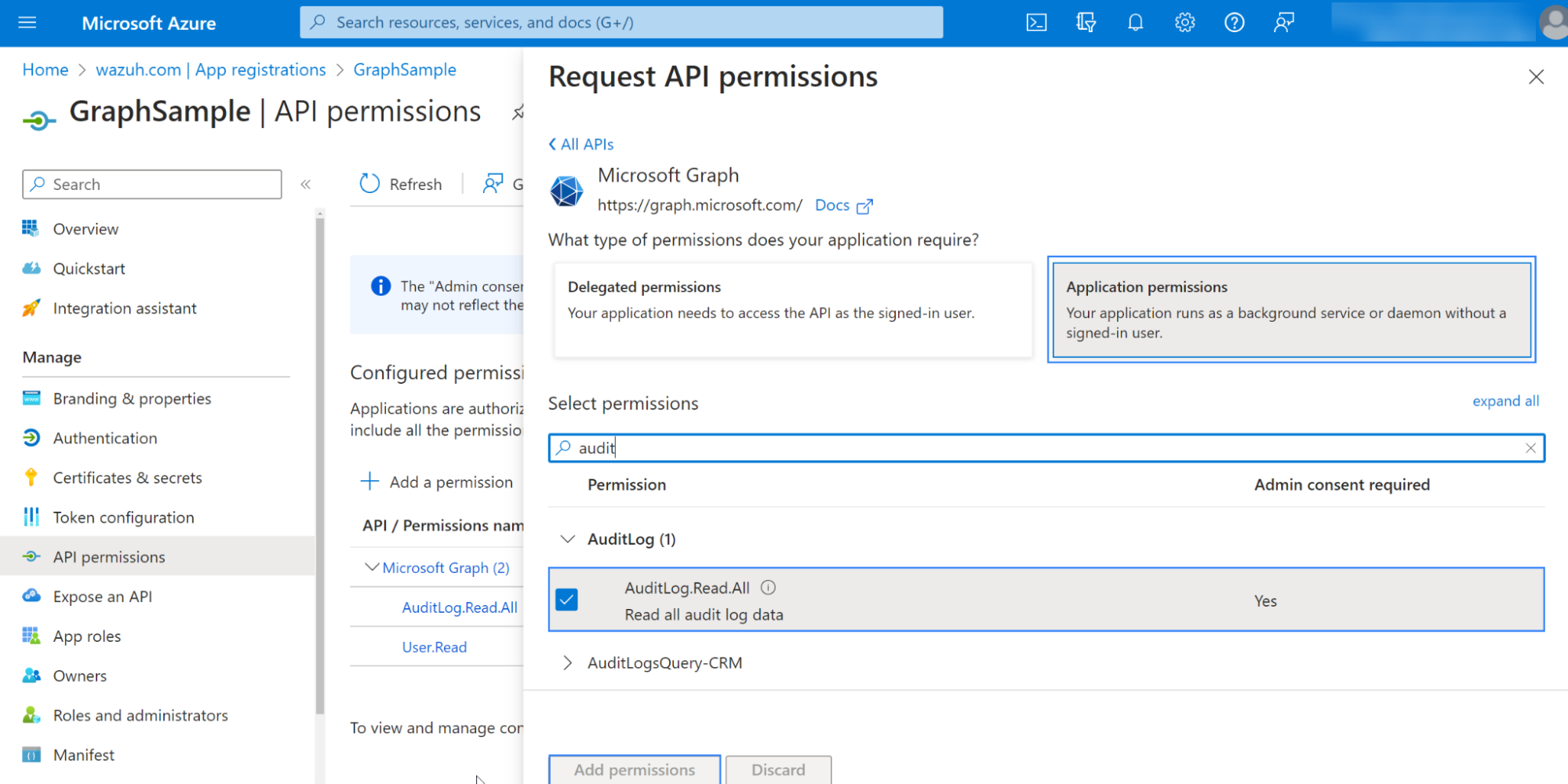

Select the permissions in Applications permissions that align with your infrastructure. In this case, AuditLog.Read.All permissions will be granted. Then, click Add permissions.

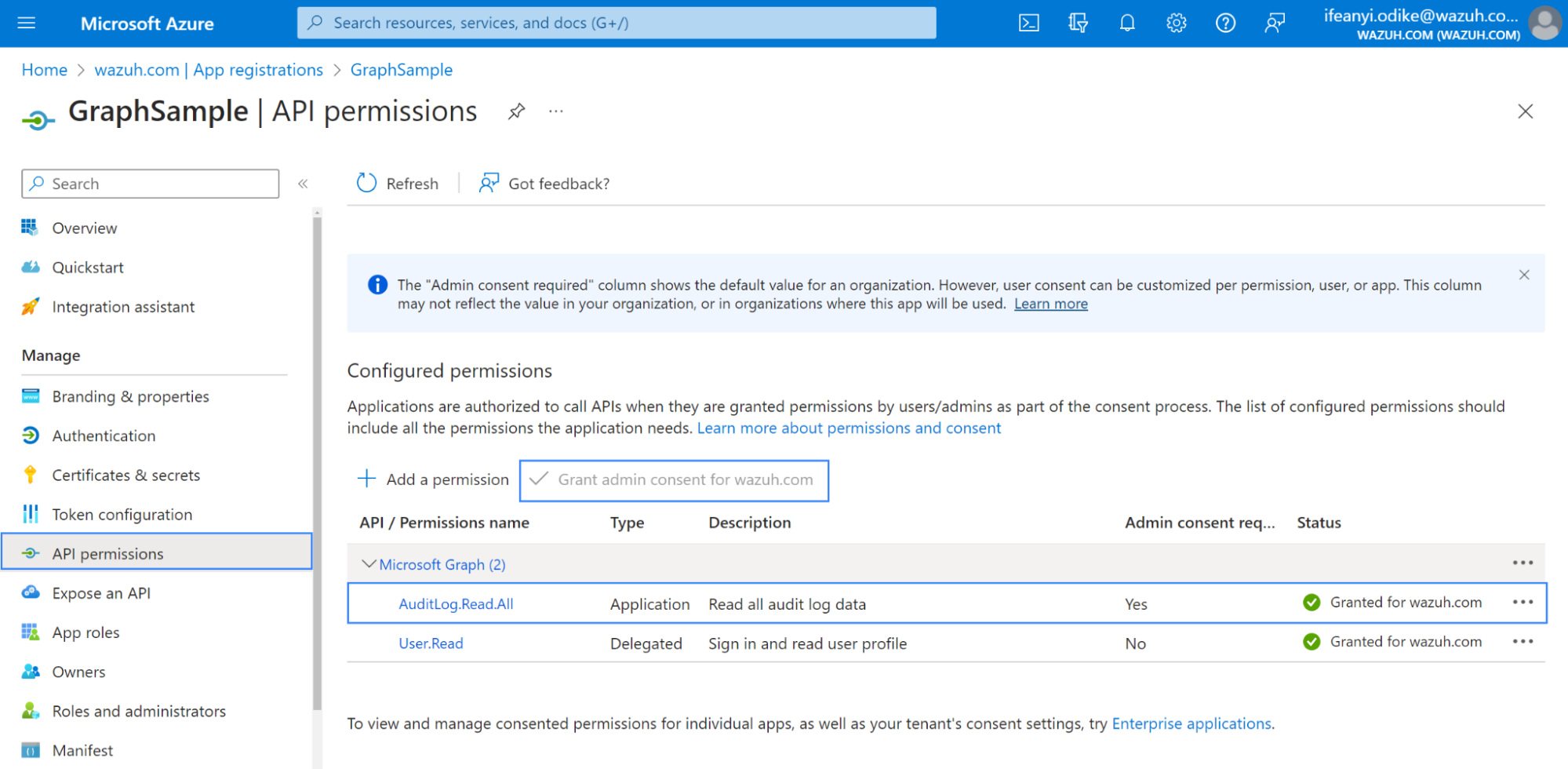

Use an admin user to Grant admin consent for the tenant.

Obtaining the application key for authentication

To use the Log Analytics API to retrieve the logs, we must generate an application key to authenticate the Log Analytics API. Follow the steps below to generate the application key.

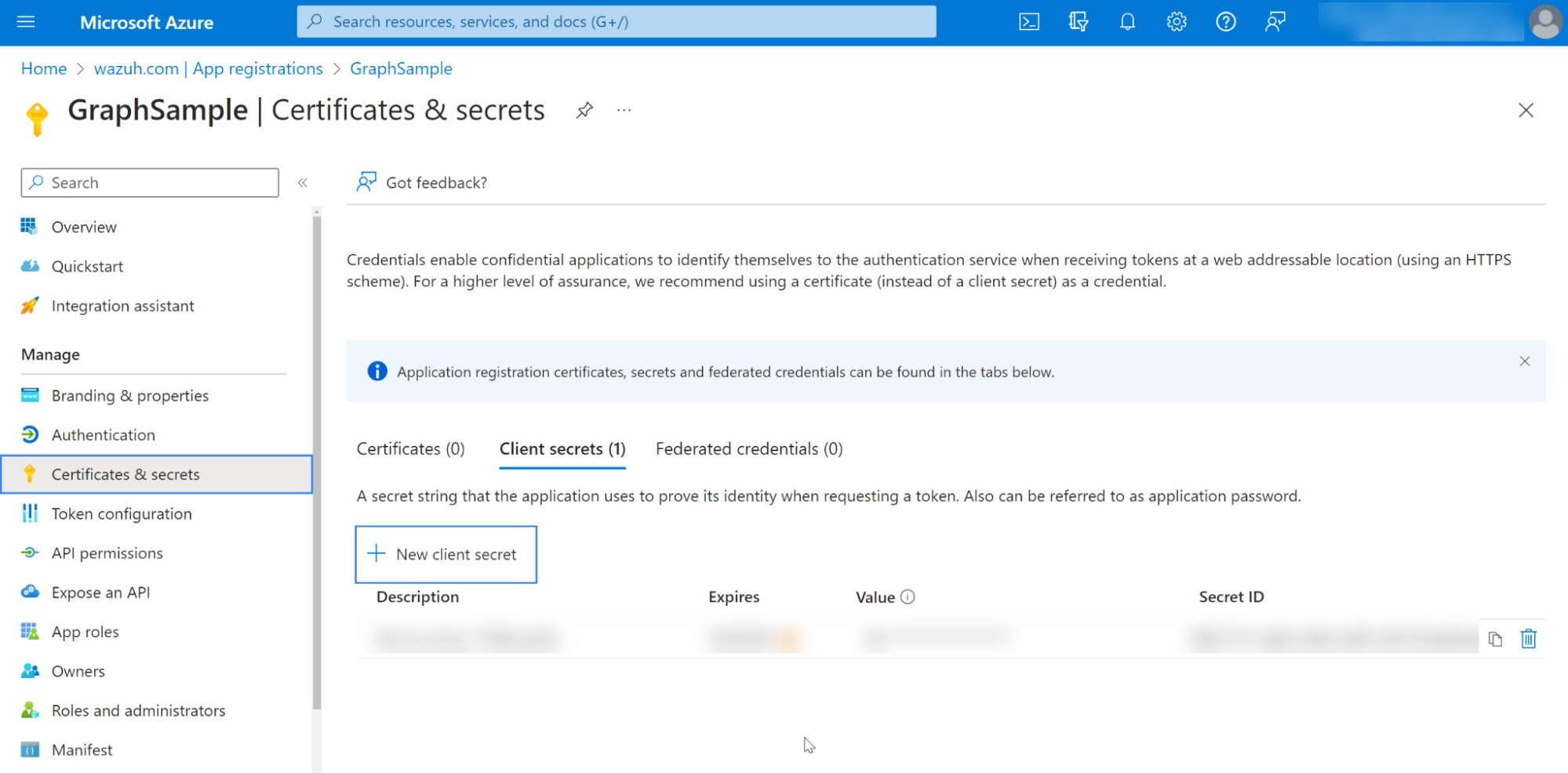

Select Certificates & secrets, then select New client secret to generate a key.

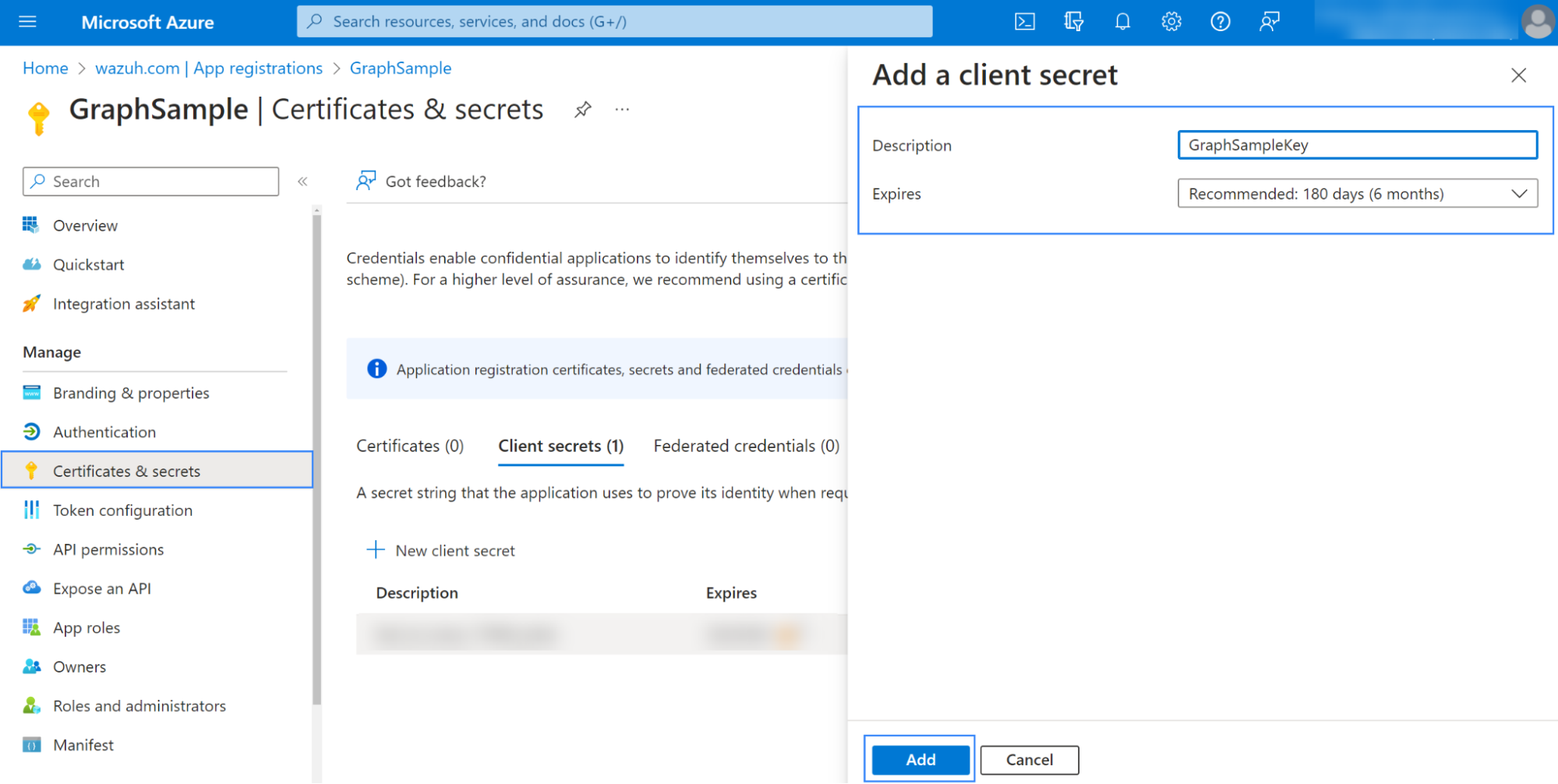

Give an appropriate description, set a preferred duration for the key, and then click Add.
Copy the key value. This would be later used for authentication.

Note

Copy the key before exiting this page, as it will only be displayed once. If you do not copy it before exiting the page, you will have to generate a fresh key.

Wazuh server or agent

You will use the key and ID of the application saved during the previous steps here. In this case, both fields were saved in a file for authentication. Check the Configuring Azure credentials section for more information about this topic.

Apply the following configuration to the local configuration file /var/ossec/etc/ossec.conf of the Wazuh server or agent. This will depend on where you configured the Wazuh module for Azure:
```
<wodle name="azure-logs">
  <disabled>no</disabled>
  <wday>Monday</wday>
  <time>2:00</time>
  <run_on_start>no</run_on_start>

  <graph>
    <auth_path>/var/ossec/wodles/azure/credentials</auth_path>
    <tenantdomain>wazuh.com</tenantdomain>
    <request>
        <tag>microsoft-entra_id</tag>
        <query>auditLogs/directoryAudits</query>
        <time_offset>1d</time_offset>
    </request>
  </graph>

</wodle>
```
Where:
- <auth_path> is the full path of where the workspace secret key is stored.
- <tenantdomain> is the tenant domain name. You can obtain this from the Overview section in Microsoft Entra ID
- <wday> is the day of the week scheduled for the scan
- <query> is the path to where the audit logs are stored.
- <time> is the time scheduled for the scan.
- <time_offset> set to 1d means that only the log data from the last day is parsed.
Restart your Wazuh server or agent, depending on where you configured the Wazuh module for Azure.

Wazuh agent:
```
# systemctl restart wazuh-agent
```
Wazuh server:
```
# systemctl restart wazuh-manager
```

Check the Wazuh module for Azure reference for more information about using the different available parameters. Please see the Wazuh Azure authentication file section for guidance on how to set up credentials to monitor your Microsoft Entra ID.

Warning

The field tenantdomain is mandatory. You can obtain it from the Overview section in Microsoft Entra ID.

Use case

Monitoring Microsoft Entra ID

Microsoft Entra ID is the identity and directory management service that combines essential directory services, application access management, and identity protection in a single solution.

Wazuh can monitor the Microsoft Entra ID (ME-ID) service using the activity reports provided by the Microsoft Graph REST API. Microsoft Graph API can perform read operations on directory data and objects on Microsoft Entra ID applications.

Here is an example of Microsoft Entra ID activity monitoring using the above configuration.

Create a new user

Create a new user in Azure. A successful user creation activity will produce a log to reflect it. You can retrieve this log using the auditLogs/directoryAudits query.

Navigate to Users > All users, select New user > Create new user.
Fill in the required details and click Review + create. The user is now created.

You can check for the result of the successful user creation in the Audit logs section of Microsoft Entra ID.

Once the integration is running, the results will be available in the Security Events tab of the Wazuh dashboard.
